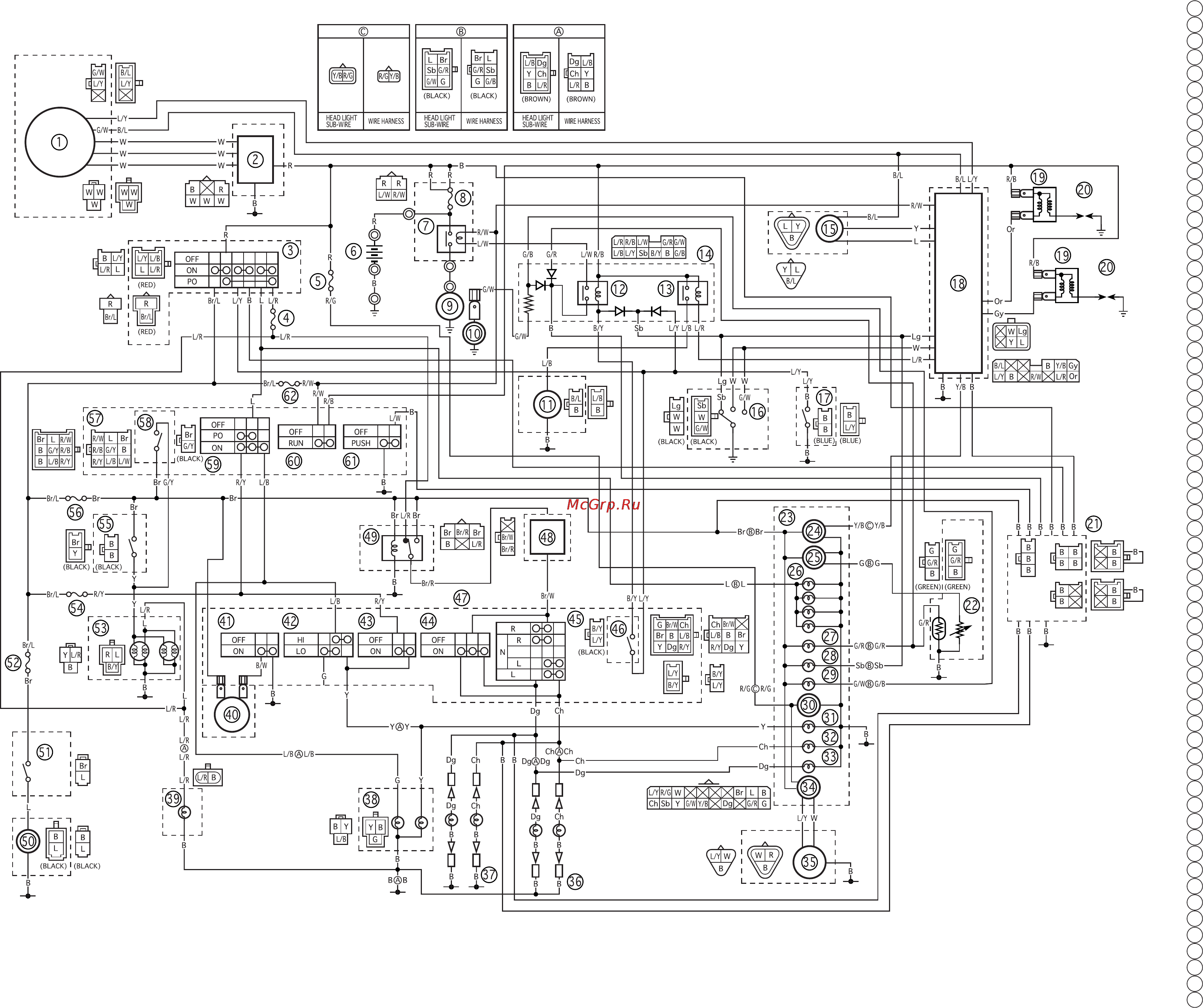

Yamaha TDM850 (1999) [43/43] Tdm850 99 wiring diagram
![Yamaha TDM850 (1999) [43/43] Tdm850 99 wiring diagram](/views2/1121415/page43/bg2b.png)
COLOR CODE
B Black. . . . . .
Br Brown. . . . .
Ch Chocolate. . . .
Dg Dark green. . . .
G Green. . . . .
Gy Gray. . . .
L Blue. . . . . .
Lg Light green. . . . .
Or Orange. . . . .
R Red. . . . . .
Sb Sky blue. . . . .
W White. . . . .
Y Yellow. . . . . .
B/L Black/Blue. . . .
Br/L Brown/Blue. . .
Br/R Brown/Red. . .
Br/W Brown/White. .
B/W Black/White. . .
B/Y Black/Yellow. . . .
G/B Green/Black. . .
G/R Green/Red. . .
G/W Green/White. . .
G/Y Green/Yellow. . .
L/R Blue/Red. . . .
L/W Blue/White. . .
L/Y Blue/Yellow. . . .
R/B Red/Black. . . .
P/G Red/Green. . .
R/W Red/White. . .
R/Y Red/Yellow. . . .
Y/B Yellow/Black. . . .
1 A.C. maguneto/pickup coil
2 Rectifier/regulator
3 Main switch
4 Fuse (position light and hazard)
5 Backup fuse (odometer)
6 Battery
7 Starter relay
8 Main fuse
9 Starter motor
10 Thermo unit
11 Fuel pump
12 Starting circuit cutoff relay
13 Fuel pump relay
14 Relay unit
15 T.P.S (throttle position sensor)
16 Gear position switch
17 Sidestand switch
18 Ignitor unit
19 Ignition coil
20 Spark plug
21 CYCLELOCK (option)
22 Fuel sender
23 Meter assembly
24 Tachometer
25 Fuel meter
26 Meter light
27 Fuel level indicator light
28 Neutral indicator light
29 Water temperature meter
30 Combination meter
31 High beam indicator light
32 Turn indicator light (left)
33 Turn indicator light (right)
34 Speed meter
35 Speed sensor
36 Front flasher light
37 Rear flasher light
38 Head light
39 Auxiliary light
40 Horn
41 Horn switch
42 Dimmer switch
43 “PASS” switch
44 Hazard switch
45 Turn switch
46 Clutch switch
47 Left handlebar switch
48 Flasher relay
49 Hazard relay
50 Fan motor
51 Thermo switch
52 Radiator fan fuse
53 Tail/brake light
54 Headlight fuse
55 Rear brake switch
56 Signal system fuse
57 Right handlebar switch
58 Front brake switch
59 Light switch
60 Engine stop switch
61 Start switch
62 Ignition fuse
TDM850 ’99 WIRING DIAGRAM
