7 Getting to know your monitor

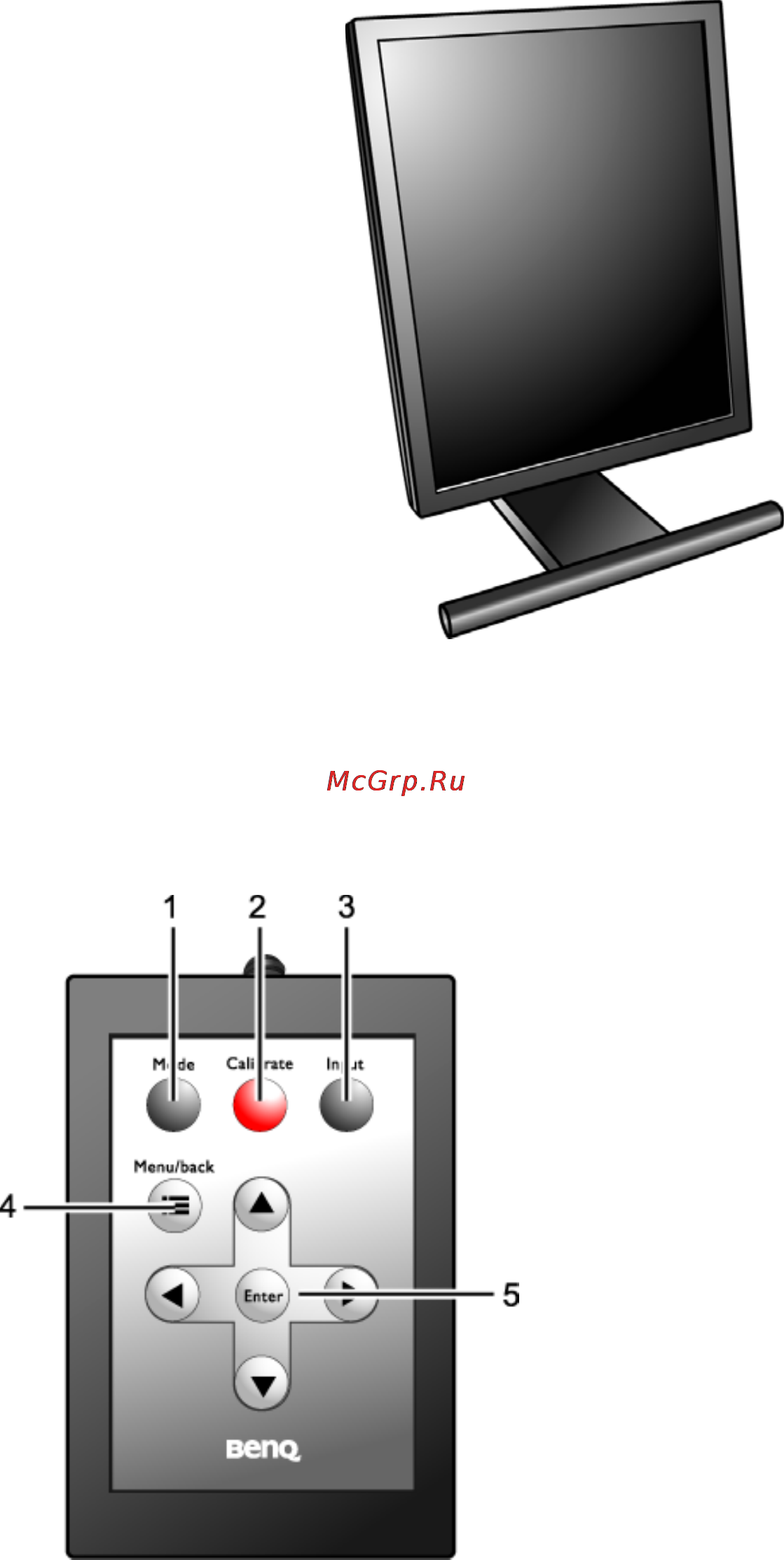

Portrait display
You can also work with your FP91R LCD monitor in a portrait orientation.
For more information on portrait viewing, refer to Rotating the display (optional) on page 13.
Overview of the monitor controller
Front view
1. Mode
Press to switch between 5 color modes:
sRGB, MAC STD., Te x t , User Preset-1,
and User Preset-2.
2. Calibrate
Press to activate the luminance
compensation.
3. Input
Press to switch the input signal that
may connect to your monitor between
DVI-1, DVI-2, D-Sub 1, and D-Sub 2.
4. Menu/back
Press to display the main menu, return
to the previous menu, or exit On Screen
Display (OSD).
5. W/X/T/S and Enter
• W X: Press to adjust OSD menu set-
tings.
• TS: Press to highlight an menu item.
• Enter: Press to execute selections, or to
enter a submenu you have selected.
