Connection and setup

Connection

Turn off and unplug all components before making connections.

Do not turn on the TV until connection setup is completed.

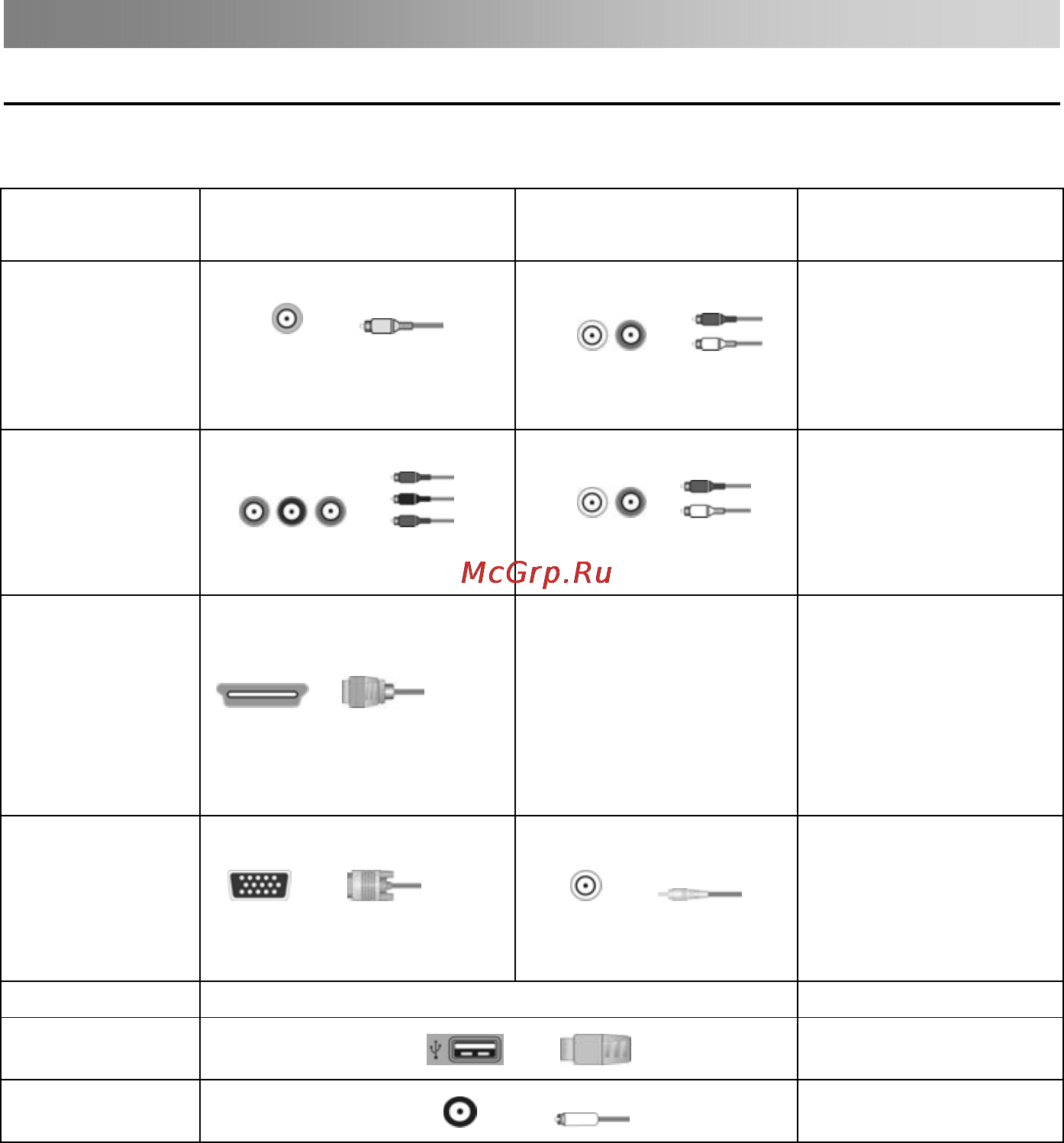

Input Connector Video Connection Audio Connection

High or Standard

Definition Quality

Composite video

connector

Audio L/R

576i, 480i

(SD content)

Component

Component connection

Audio L/R

1080p, 1080i, 720p,

576p, 576i, 480p, 480i

(Compatible with HD

or SD content)

HDMI

HDMI connection

HDMI cable carries both

video and audio signals.

Separate audio cable is

not needed. (When

HDMI is connected to

DVI with an adapter, a

separate audio L/R is

necessary)

1080p, 1080i, 720p,576p,

576i, 480p, 480i, PC

(Compatible with HD

or SD content)

PC connection

PC audio

1920×1080(60Hz)

Connection

USB

USB connection

USB2.0

RF connection

75Ω
