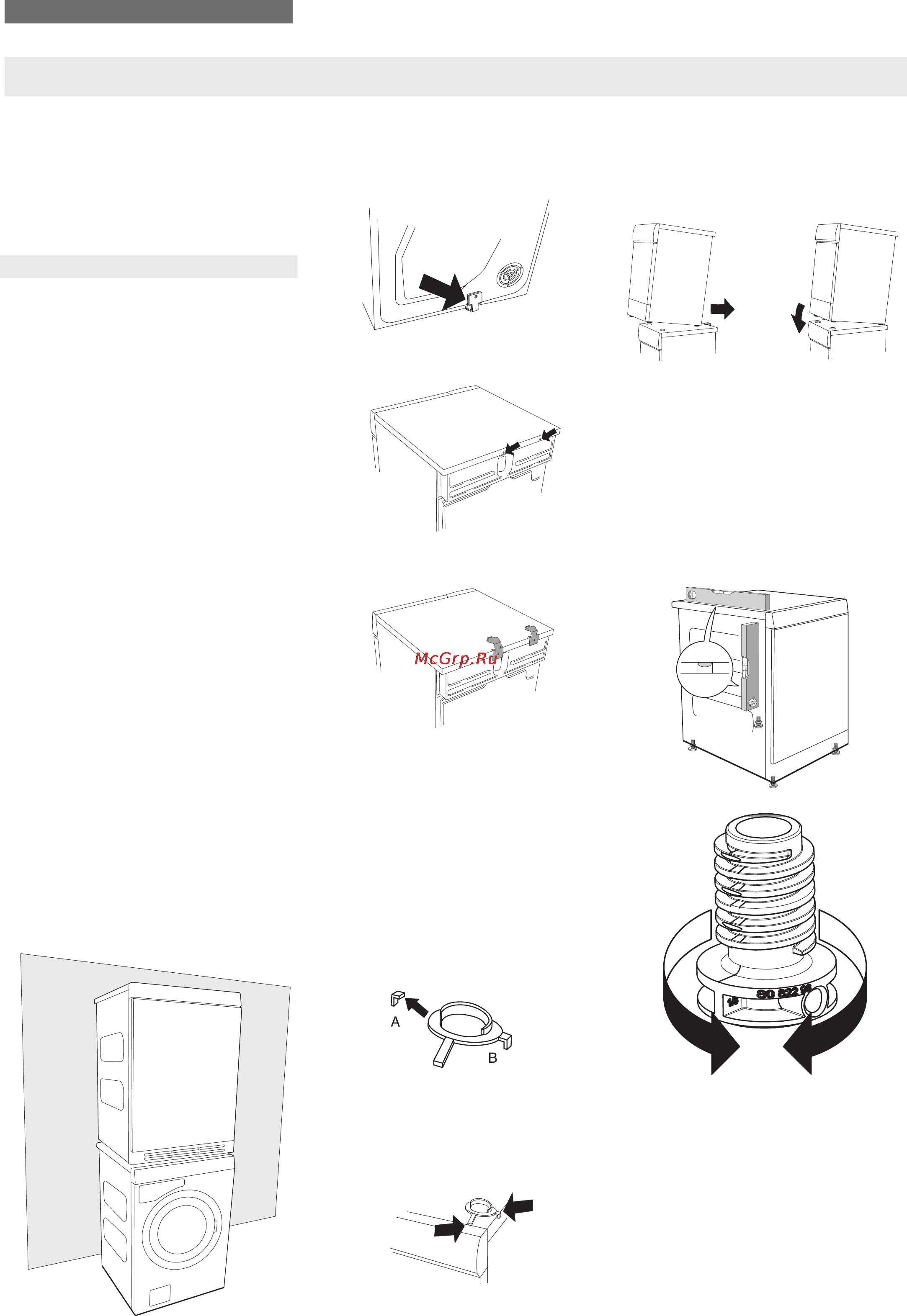

How to assemble the stack:
1. Undo the anti-tilt device.
Fasten the screw back into place
2. Undo the two screws indicated on the back
of the washing machine.
3. Secure the anti-tilt device using the screws
as shown in the picture.
4. Attach the plastic cups for fixing the tumble
dryer’s front feet to the washing machine’s
top cover. This is essential, as only when
the tumble dryer’s feet are resting in the
plastic cups can you be sure that the dryer
is correctly positioned on the washing
machine.
Break off tag A on the cup fitted on the
right-hand side and tag B on the cup fitted
on the left-hand side. Then remove the
paper from the self-adhesive surface under
the plastic cups.
5. Fit the plastic cups so that the “tags” marked
with arrows are against the front edge or
side edge of the cover and press them firmly
onto the cover. Then break off the remaining
tags.
6. Push the tumble dryer in under the metal
brackets. At the same time keep the front
edge raised by 10 mm to 20 mm.
7. Lower the tumble dryer’s front feet into the
plastic cups and adjust the dryer to ensure
that it is balanced.
A
English
The tumble dryer can be free-standing or
in a stack. Remember that the tumble dryer
produces heat and should therefore not be
located in a room that is too small. If the room
is very small, drying will take longer due to the
limited quantity of air.
Caution!
• Any electrical installation must be carried
out by qualified professionals.
• The machine must not be installed behind a
lockable door, a sliding door or a door with
hinges on the opposite side to those of the
tumble dryer.
• The tumble dryer’s plinth ventilation must
not be blocked by a rug or the like.
Tip!
• To improve ventilation, leave the door to
the room where the tumble dryer is located
open.
A. Freestanding
The tumble dryer can be positioned beside the
washing machine. An air gap of at least 5 mm
must be left between the washing machine and
the tumble dryer.
If the customer has a problem with the
machine sliding when on a low-friction floor,
the plastic cups can be used under the feet of
the tumble dryer (between foot and floor).
B. Stacking
The tumble dryer can be placed on top of a
ASKO washing machine. In this case you use
the stacking attachments (foot cups and anti-
tilt devices) that come with the machine. You
will find two foot cups in a bag in the drum
and two anti-tilt devices are attached to the
bottom left corner at the back of the machine.
Extending plates can be ordered from your
local retailer.
Adjusting the feet
Screw the feet in or out so that the tumble
dryer is steady and balanced on the floor or on
the washing machine.
Positioning the tumble dryer
