Section 02 ENGINE

Subsection 08 (LUBRICATION SYSTEM)

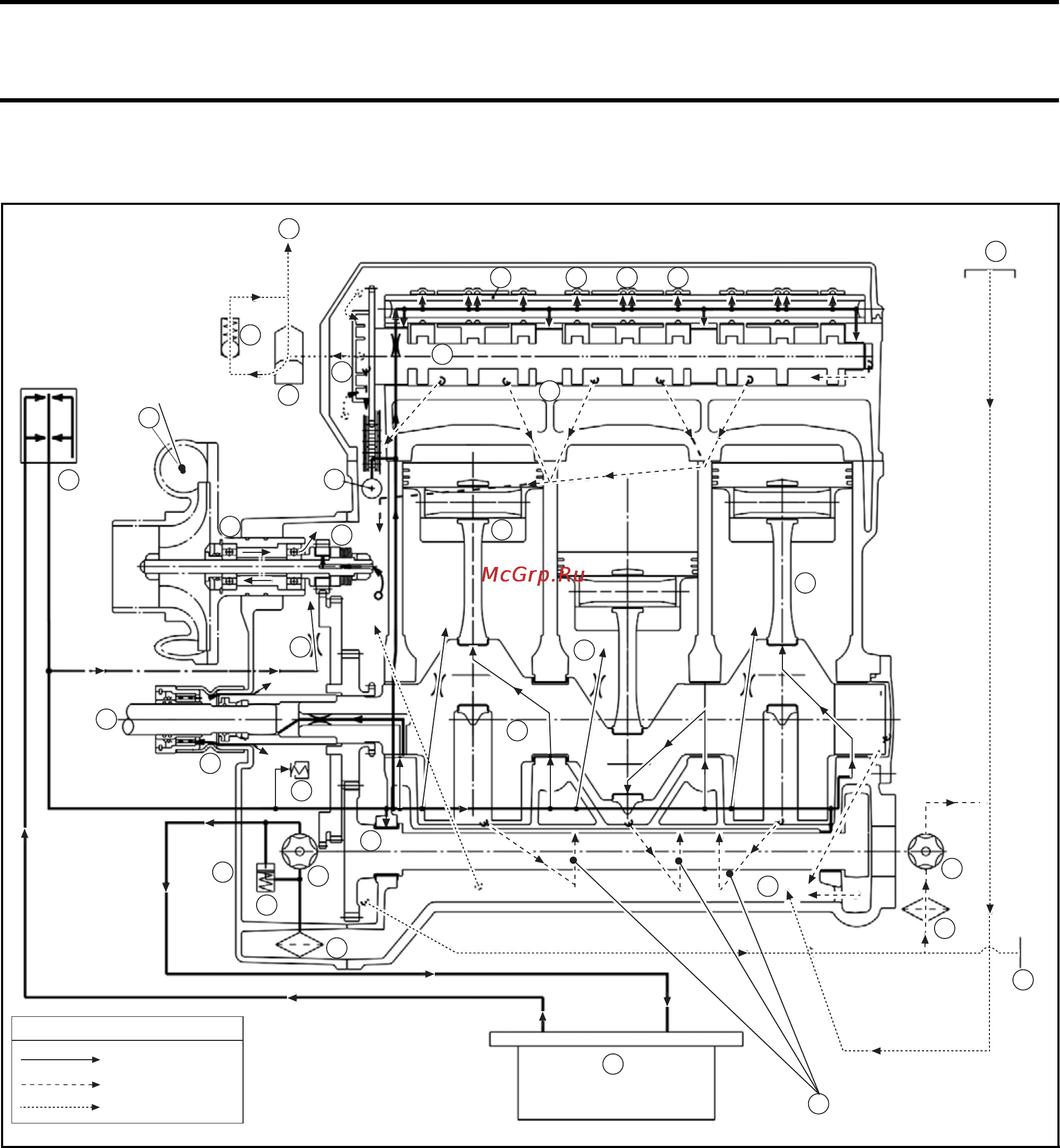

ENGINE LUBRICATION CIRCUIT (CONT'D)

4 3 32

Legend

Pressurized oil

Blow-by gas

Scavenged oil

smr2009-023-101_en

1. To air intake silencer

2. Rocker arm (intake)

3. Rocker arm (exhaust)

4. Rocker arm axle

5. Camshaft

6. Pressure relief valve

7. Oil separator

8. Cylinder head

9. Blow-by valve

10.Supercharger (if so equipped)

11. Oil filter

12. Hydraulic chain tensioner

13.Supercharger bearing (if so equipped)

14.Friction clutch

15.Piston pin

16.Connecting rod

17.Piston cooling

18. Oil spray nozzle

19.Drive shaft

20.Crankshaft

21. PTO seal

22.Oil pressure switch

23.Balance shaft

24. PTO cover

25. Pressure pump

26.Pressure relief valve

27. Oil strainer (pressure pump)

28. Scavenge pump

29. Oil tank

30. Oil strainer (scavenge pump)

31.Oil drainage (PTO cover)

32. Oil cooler

33.Scavenge of oil and blow-by gas

34.Oil filler cap

smr2009-023 89
