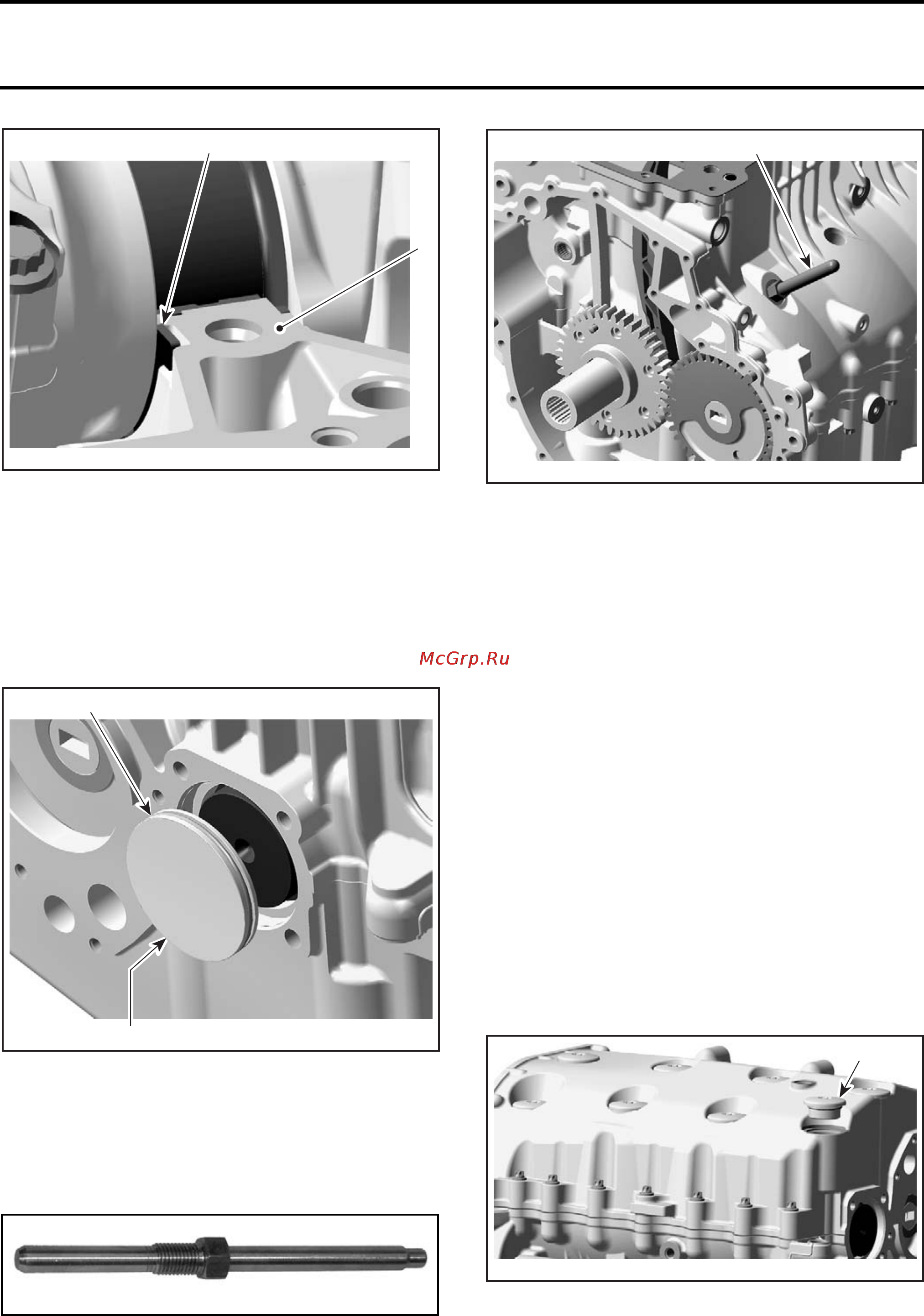

Section 02 ENGINE
Subsection 11 (CYLINDER BLOCK)
1
R1503motr16A
2
1. Thrust washer
2. Sealing surface
Install cylinder block lower half. Refer to
CYLIN-
DER BLOCK
in this subsection.
Install the crankshaft cover before mounting the
engine bracket. Apply engine oil on O-ring and
press cover in. Crankshaft cover has to be flush
with cylinder block surface.
1
R1503motr19A
2
1. O-ri
ng
2. Crankshaft cover
Install the CRANKSHAFT LOCKING TOOL (P/N 529
035 821)
right away to position crankshaft at TDC
before installing the camshaft and the rocker arms
(refer to
CYLINDER HEAD
subsection).
529035821
1
R1503motr18A
1. Crankshaft locking tool
BALANCER SHAFT
Balancer Shaft Removal
1. Drain engine oil (refer to
LUBRICATION SYS-
TEM
subsection).
2. Remove engine from vehicle (refer to
ENGINE
REMOVAL AND INSTALLATION
subsection).
3. Remove cylinder head (refer to
CYLINDER
HEAD
subsection).
4. Remove PTO housing (refer to
PTO HOUSING
AND MAGNETO
subsection).
5. Remove starter gear (refer to
PTO HOUSING
AND MAGNETO
subsection).
6. Remove starter drive.
7. Remove oil suction pump (refer to
LUBRICA-
TION SYSTEM
subsection).
8. Remove engine mounting brackets.
9. Remove oil reservoir plug screws no.1 with
O-ring no. 2.
1
R1503motr05A
ENG
INE UPSIDE DOWN
1. Oil reservoir plug screw with O-ring
10. Remove cylinder block screws no. 3.
164 smr2009-026
