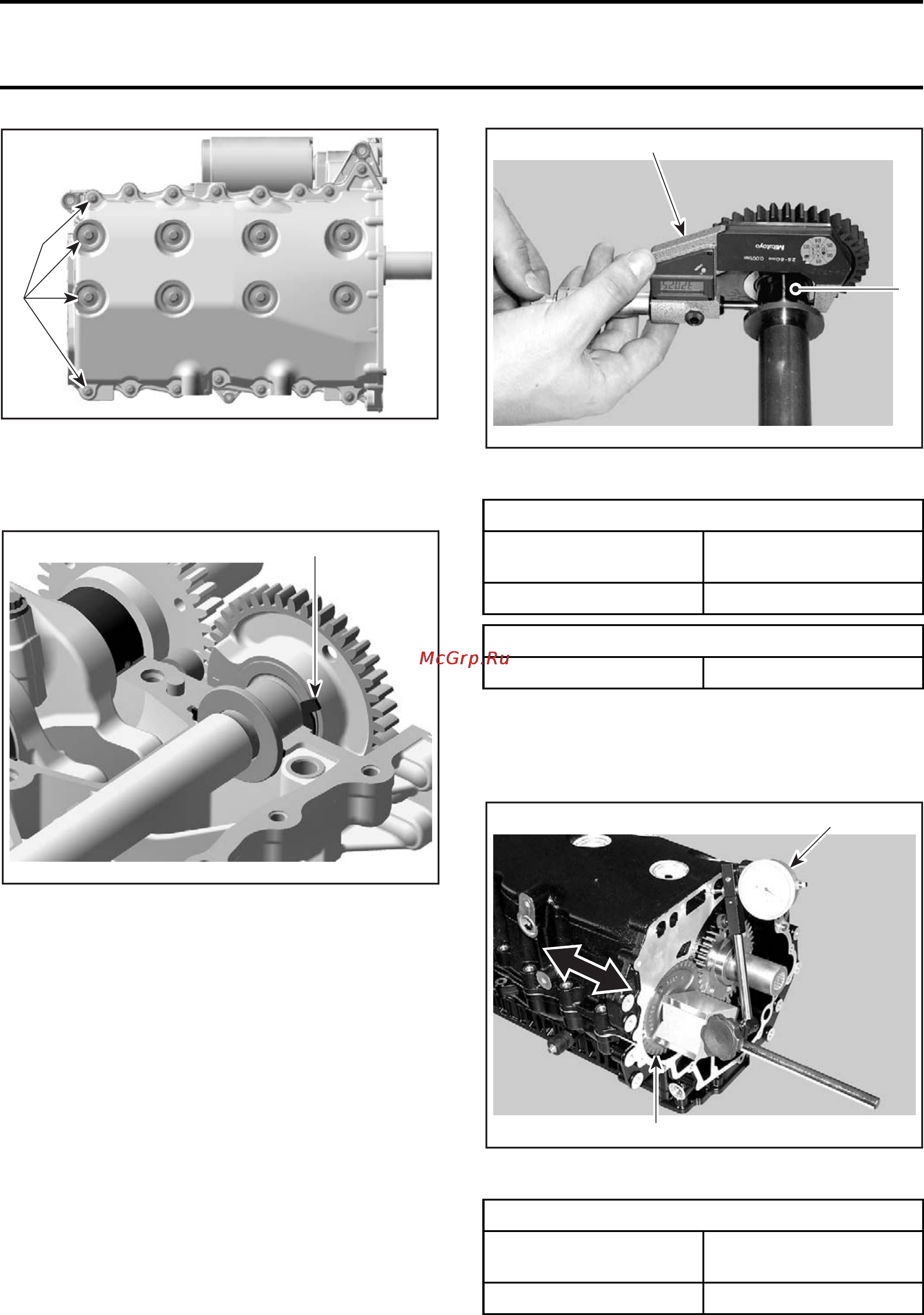

Section 02 ENGINE
Subsection 11 (CYLINDER BLOCK)
1
R1503motr109A
1. Screws
11. Remove cylinder block lower half.
12. Remove thrust washers no. 6.
1
R1503motr20A
1. Thrust washer
13. Remov
e balancer shaft.
Balancer Shaft Inspection
Check
balancer shaft and replace if damaged.
If the gear on the balancer shaft is damaged, re-
place balancer shaft.
Check gear on the crankshaft at the same time
and replace crankshaft if necessary (refer to
CRANKSHAFT
above).
Balan
cer Shaft Bearing Seat Play
Measure all balancer shaft bearing seats. Com-
pare to inside diameter of balancer shaft bearings
(elsewhere in this subsection).
1
R1503motr23A
2
1. Micrometer
2. Balancer shaft area for bearing
BALANCER S
HAFT SEAT DIAMETER
NEW
31.984 mm - 32.000 mm
(1.2592 i
n - 1.2598 in)
SERVICE LIMIT
31.960 mm (1.2583 in)
BALANCER SHAFT SEAT RADIAL CLEARANCE
SERVICE LIMIT
0.07 mm (.0028 in)
Balancer Shaft Axial Clearance
When assembling the cylinder-block, measure the
balance shaft axial play.
1
R1503motr42A
2
1. Dial gauge
2. Balancer shaft
BALANCER SHAFT AXIAL CLEARANCE
NEW
0.02 mm - 0.25 mm
(.001 in - .01 in)
SE
RVICE LIMIT
0.35 mm (.014 in)
smr2009-026 165
