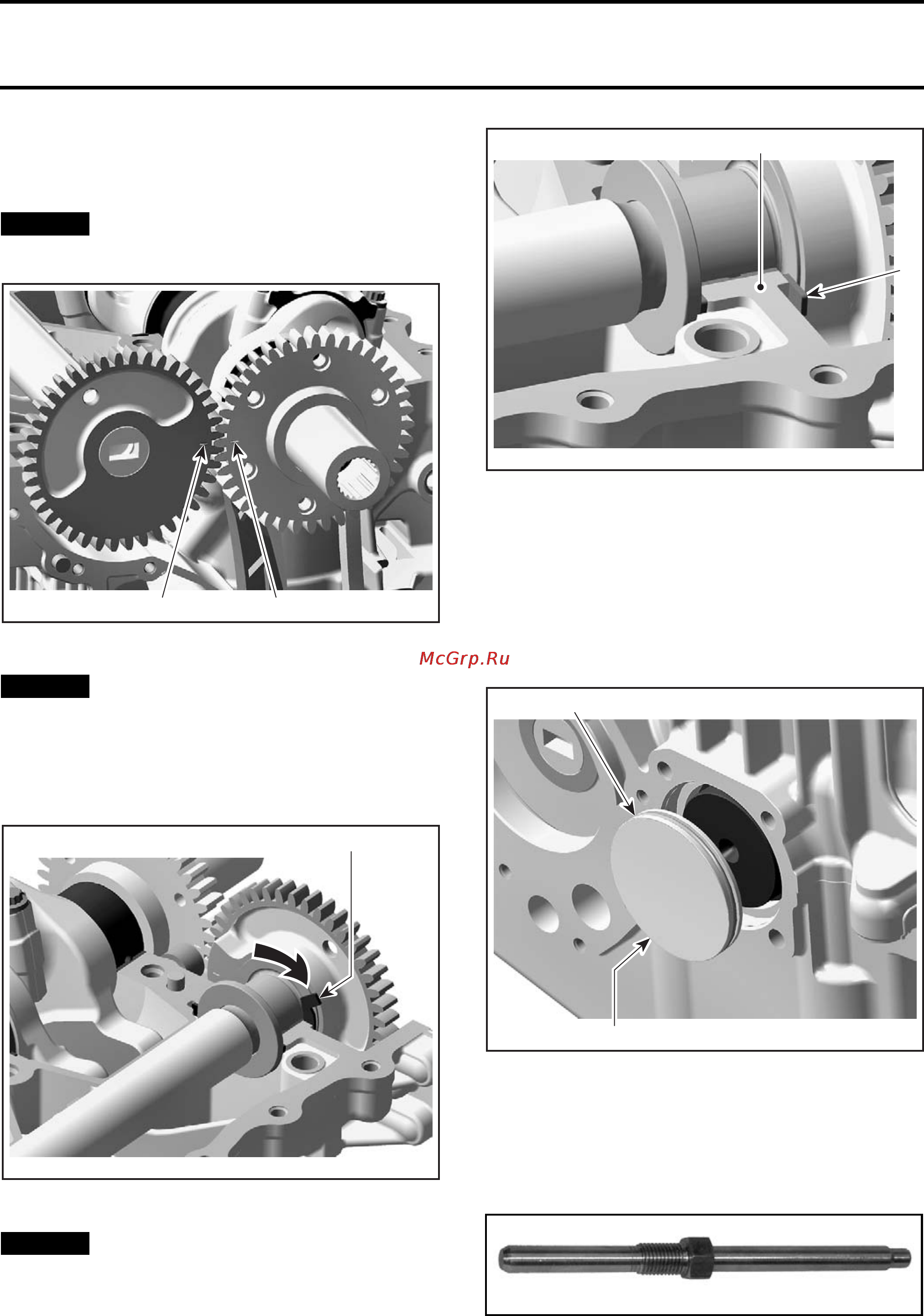

Section 02 ENGINE
Subsection 11 (CYLINDER BLOCK)
Balancer Shaft Installation
For installation, reverse the removal procedure.
Pay attention to following details.
NOTICE
Balancer shaft and crankshaft marks
have to be aligned.
R1503motr17A
12
1. Mark on balancer shaft
2. Mark on crankshaft
NOTICE
Never forget thrust washers no. 6 on
PTO side to control axial adjustment on bal-
ancer.
Insert thrust washers as soon as balancer shaft is
in place as per following illustration.
1
R1503motr20B
THRU
ST WASHER INSERT DIRECTION
1. Thrust washer
NOTI
CE
Thrust washers have to be flush with
the cylinder block sealing surface.
2
R1503motr22A
1
1. Thrust washer
2. Sealing surface
Install cylinder block lower half. Refer to
CYLIN-
DER BLOCK
in this subsection.
Install the crankshaft cover before mounting the
engine bracket. Apply engine oil on O-ring and
press cover in. Crankshaft cover has to be flush
with cylinder block surface.
1
R1503motr19A
2
1. O-ri
ng
2. Crankshaft cover
Install the CRANKSHAFT LOCKING TOOL (P/N 529
035 821)
right away to position crankshaft at TDC
before installing the camshaft and the rocker arms
(refer to
CYLINDER HEAD
subsection).
529035821
166 smr2009-026
