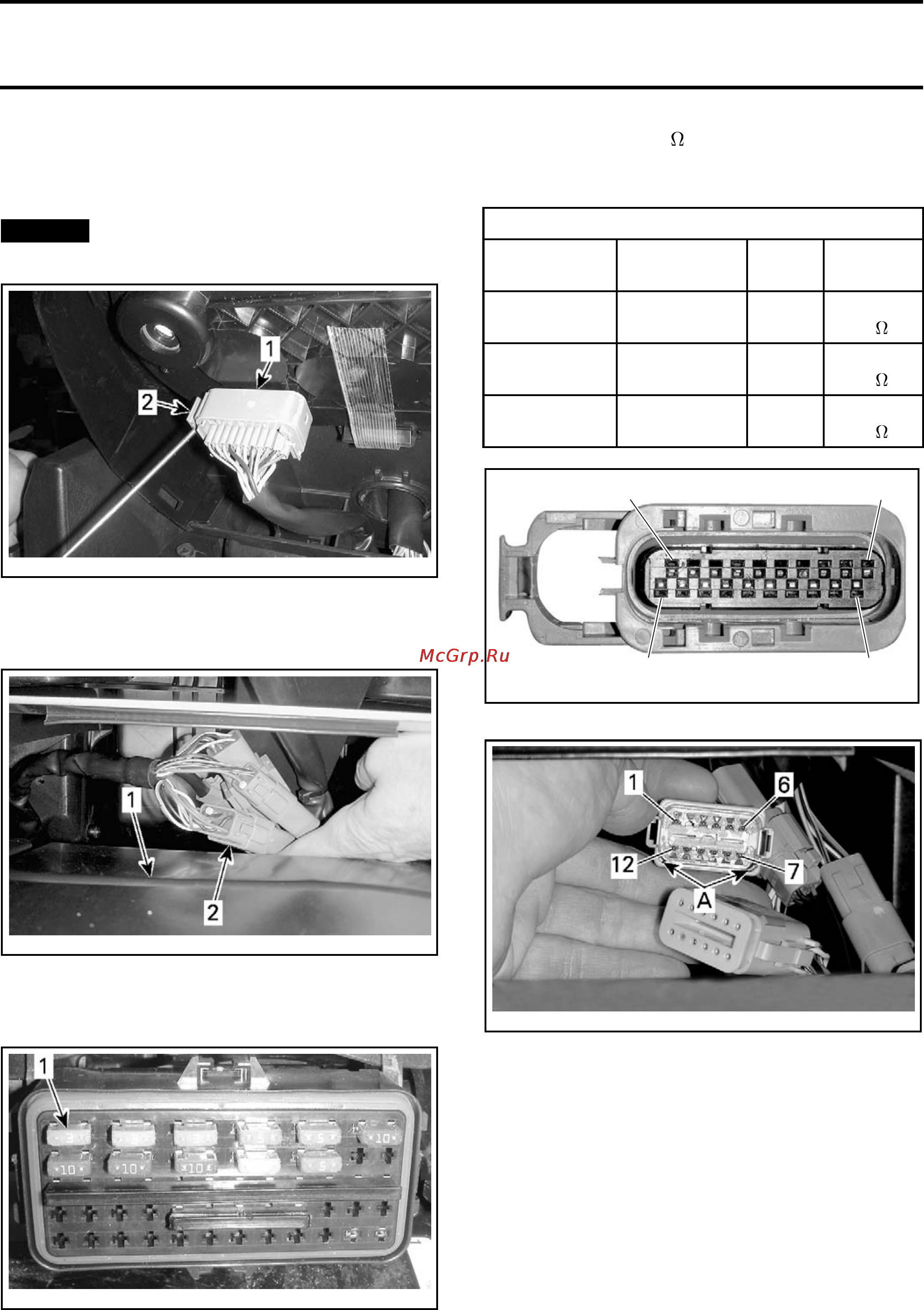

Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
Continuity Test of Gauge Power Wire
1. Remove lanyard.
2. Disconnect gauge connector.
NOTICE
Pull connector lock out sideways.
Do not twist the screwdriver.
smr2009-0
42-002_a
1. Gauge connector
2. Pull out to unlock connector
3. Disconne
ct 12 pin steering connector.
smr2009-036-004_a
1. Front
ventilation box
2. 12 pin steering connector
4. Remove the gauge fuse in FB1.
smr2009-027-011_e
FB1
1. Remove gauge fuse (F1)
5. Set multimeter to setting.
6. Test the information center power wire continu-
ity as per following table.
CONTINUITY TEST OF GAUGE POWER WIRE
GAUGE
CONNECTOR
STEERING
CONNECTOR
FUSE
BOX 1
READING
Pin12(Violet) Pin7(Violet)
-
Close to
0
Pin12(Violet)
-
A11
Close to
0
-
Pin 7 (Violet) A11
Close to
0
10 1
12 11
smr2009-036-003_a
GAUGE CONNECTOR PIN-OUT
smr2009-036-005_b
12 PIN STEERING CONNECTOR PIN-OUT (STEERING SIDE)
A. Connector alignment keyways
smr2009-036 347
