Section 05 ELECTRICAL SYSTEM
Subsection 07 (GAUGE)
smr2009-036-005_a

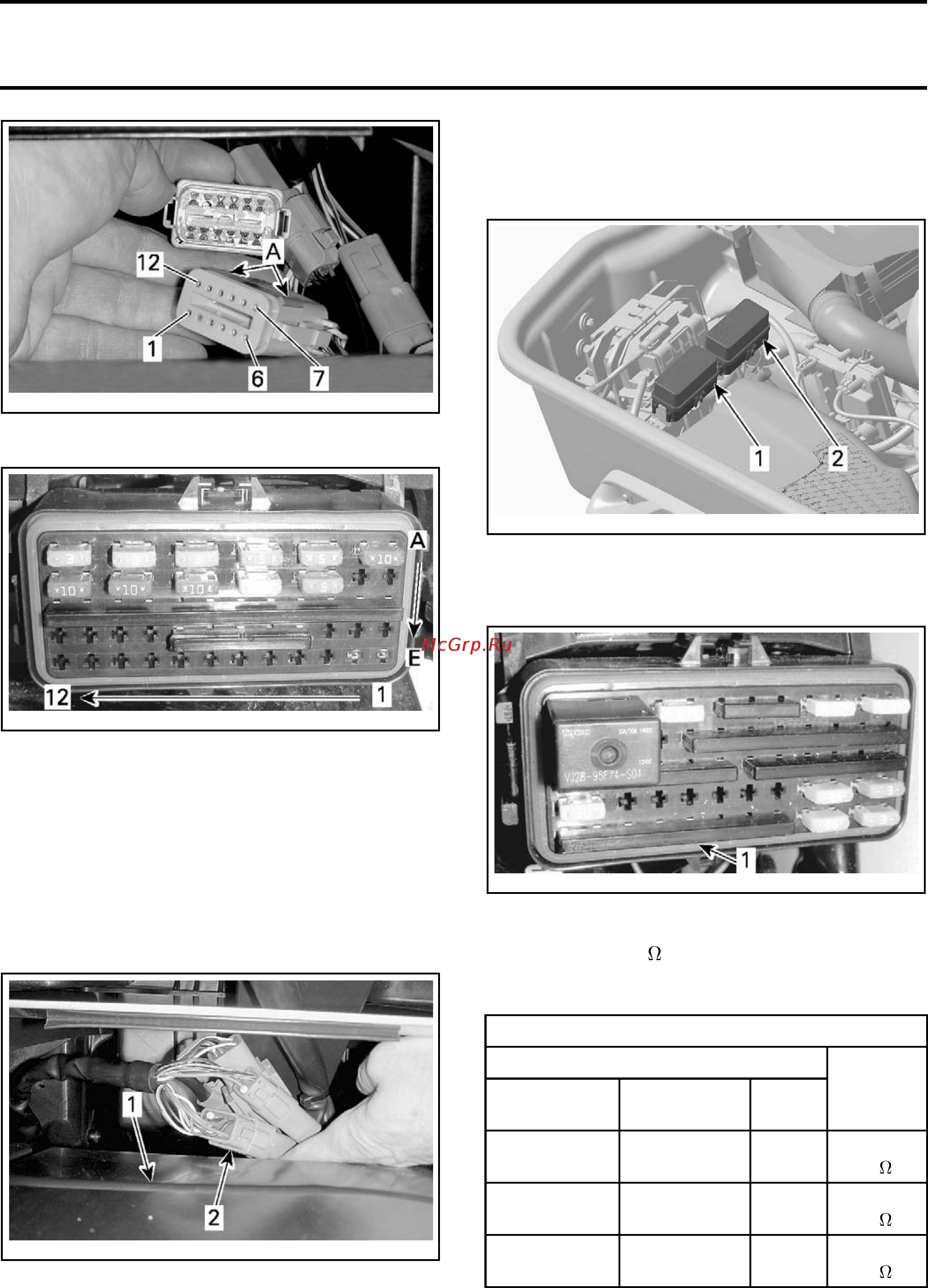

12 PIN STEERING CONNECTOR PIN-OUT (VEHICLE SIDE)
A. Connector alignment keys
smr2009-027-011_d
TYPICAL - CONTACT COORDINATES (FRONT VIEW FB1)
7. Repair or replace wiring/connectors as re-
quired.
Continuity Test of Gauge Ground Wire
Open front cover and remove the front storage
bin, refer to
BODY
subsection.
Disconnect the 12 pin steering connector (C01-
12POS).
smr2009-036-004_a
1. Front ventilation box
2. 12 pi
n steering connector
Open the boarding platform, refer to
BODY
sub-
section.
Remove the RH rear storage bin, refer to
BODY
subsection.
Remove the cover from fuse box 2.
2009-027-0
09_a
1. Fuse box #1
2. Fuse box #2
Remove the
ground bus-bar.
smr2009-027-010_e
FB2
1. Ground bus bar
Set multimeter to selection and carry out a con-
tinuity test as per following table. Refer to the
WIRING DIAGRAM
for circuit details.
CONTINUITY TEST OF GAUGE GROUND WIRE
MULTIMETER PROBES
GAUGE
CONNECTOR
STEERING
CONNECTOR
FUSE
BOX 2
READING
Pin 11
(Black)
-
E12
Close to
0
Pin 11
(Black)
Pin 6 (
Black)
-
Close to
0
-
Pin 6 (
Black)
E12
Close to
0
348 smr2009-036
