Section 05 ELECTRICAL SYSTEM

Subsection 07 (GAUGE)

10 1

12 11

smr2009-036-003_a

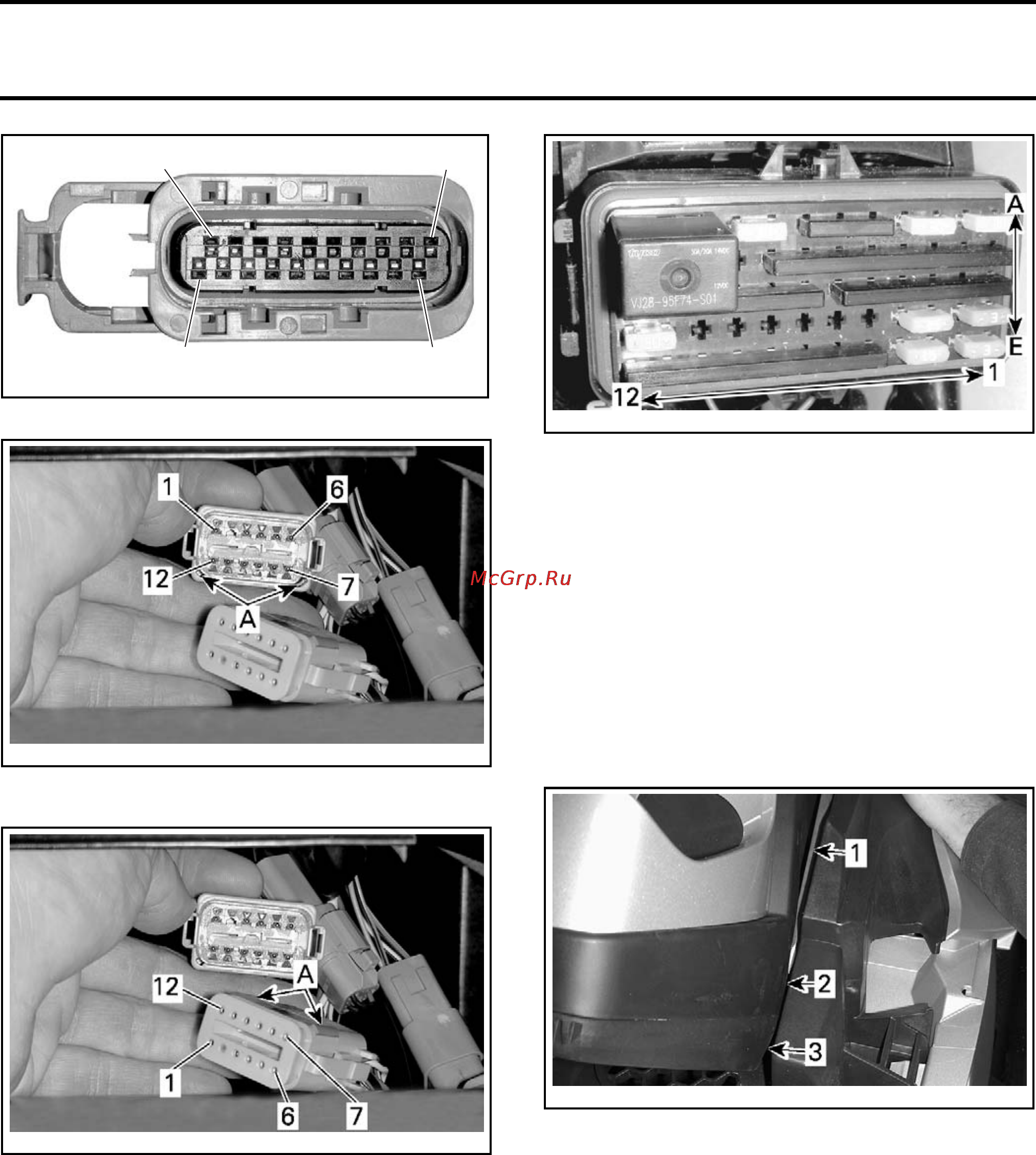

GAUGE CONNECTOR PIN-OUT

smr2009-036-005_b

12 PIN STEERING CONNECTOR PIN-OUT (STEERING SIDE)

A. Male connector alignment keyways

smr2009-036-005_a

12 PIN STEERING CONNECTOR PIN-OUT (VEHICLE SIDE)

A. Female connector alignment keys

smr2009-027-010_f

TYPICAL - CONTACT COORDINATES (FRONT VIEW FB2)

Repair wiri

ng and connectors as required.

Information Center Removal

1. Open the fro

nt cover.

2. Move the steering to its highest position, refer

BODY

subsection.

3. Using a long flat screwdriver, insert the blade

between the lower locking tabs (one each side)

of the gauge support cover, and carefully pry

the tabs outwards to release them from the

gauge support.

smr200

9-042-001_a

1. Long flat screwdriver

2. Locking tab

3. Gauge

support cover

4. Pull the bottom of the panel outwards to re-

move it from the gauge support.
