Section 07 BODY AND HULL
Subsection 02 (BODY)
BODY
SERVICE TOOLS
Description Part Number Page
SUPERTITANIUM DRILL BIT 3/16"................................................ 529 031 800 .........................................485
SERVICE PRODUCTS
Description Part Number Page
BRP PLASTIC & VINYL CLEANER ................................................ 413 711 200 ................................. 481–482
LOCTITE 243 (BLUE)..................................................................... 293 800 060 .........................468, 476, 482
GENERAL
Verify hinges condition and latching mechanisms
condition and operation. Replace any damaged
components.
Clean threads before applying a threadlocker. Re-
fer to
SELF-LOCKING FASTENERS
and
LOCTITE
APPLICATION
at the beginning of this manual for
complete procedure.
NOTICE
When applying threadlocker prod-
ucts (anaerobic products), pay attention so
that it does not come in contact with ABS plas-
tic parts (painted parts). It could lead to plastic
cracks or other damage.
WARNING
Torque wrench tightening specifications
must be strictly adhered to.
Locking devices (e.g.: locking tabs, elastic
stop nuts, self-locking fasteners, cotter pins,
etc.) must be replaced with new one.
Hoses, cables or locking ties removed during a
procedure must be reinstalled as per factory stan-
dards.
PROCEDURES
BOARDING PLATFORM
Boarding Platform Removal
1. Unlatch the boarding platform.
2. Open boarding platform completely.
3. Cut locking tie retaining the bellows of gas
shock.

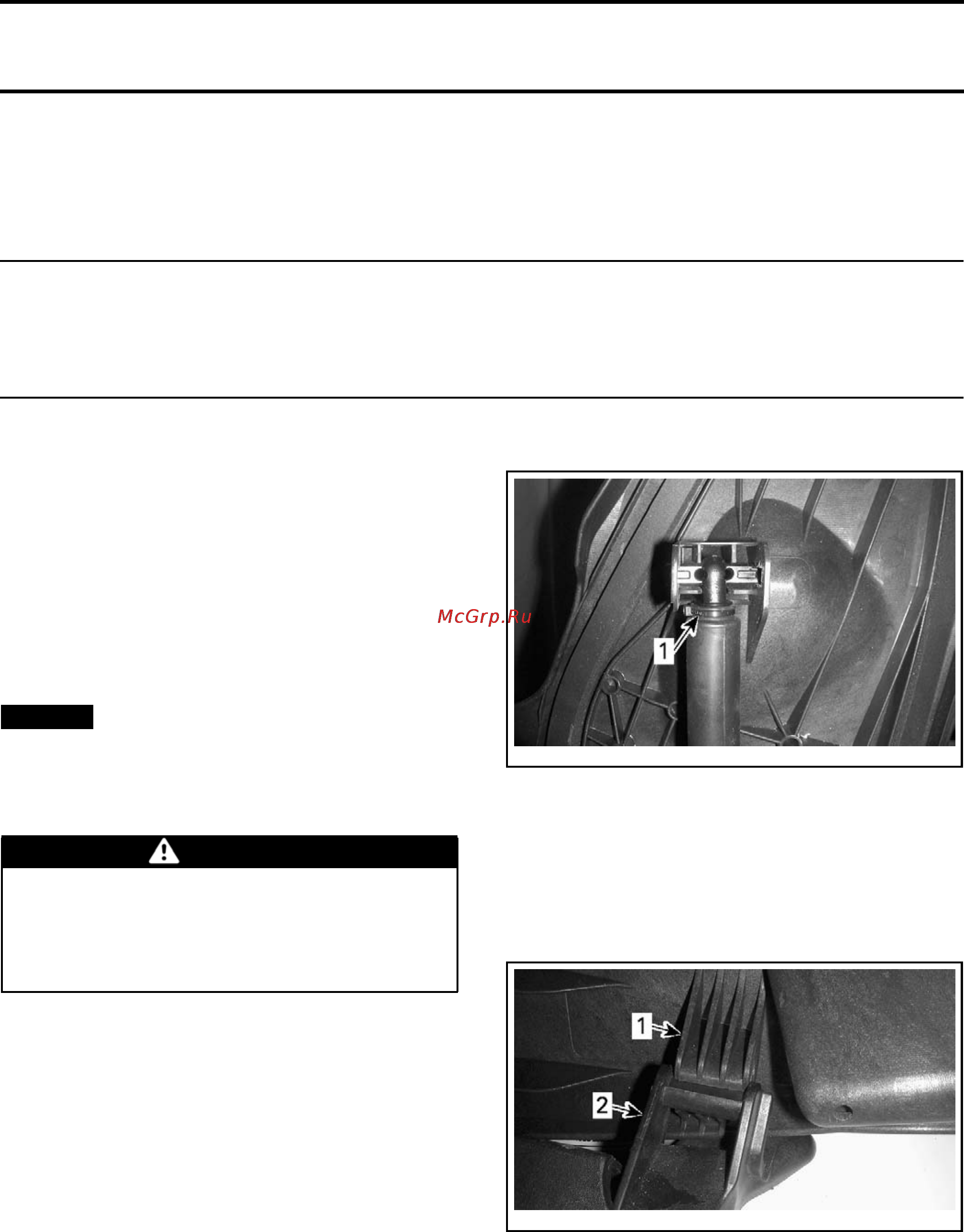

smr2009-042-078_a
1. Cut this locking tie
4. Move bellows downward.
5. Unscrew gas shock from its upper attachment.
6. Remove gas shock from vehicle.
7. Align boarding platform hinge openings with flat
sides of fixed hinges.
smr2009-042-037
_a
1. Boarding platform hinge
2. Fixed hinge
8. Remove boarding
platform.
Boarding Platform Installation
1. Remove gas shock
attachment from boarding
platform.
smr2009-042 467
