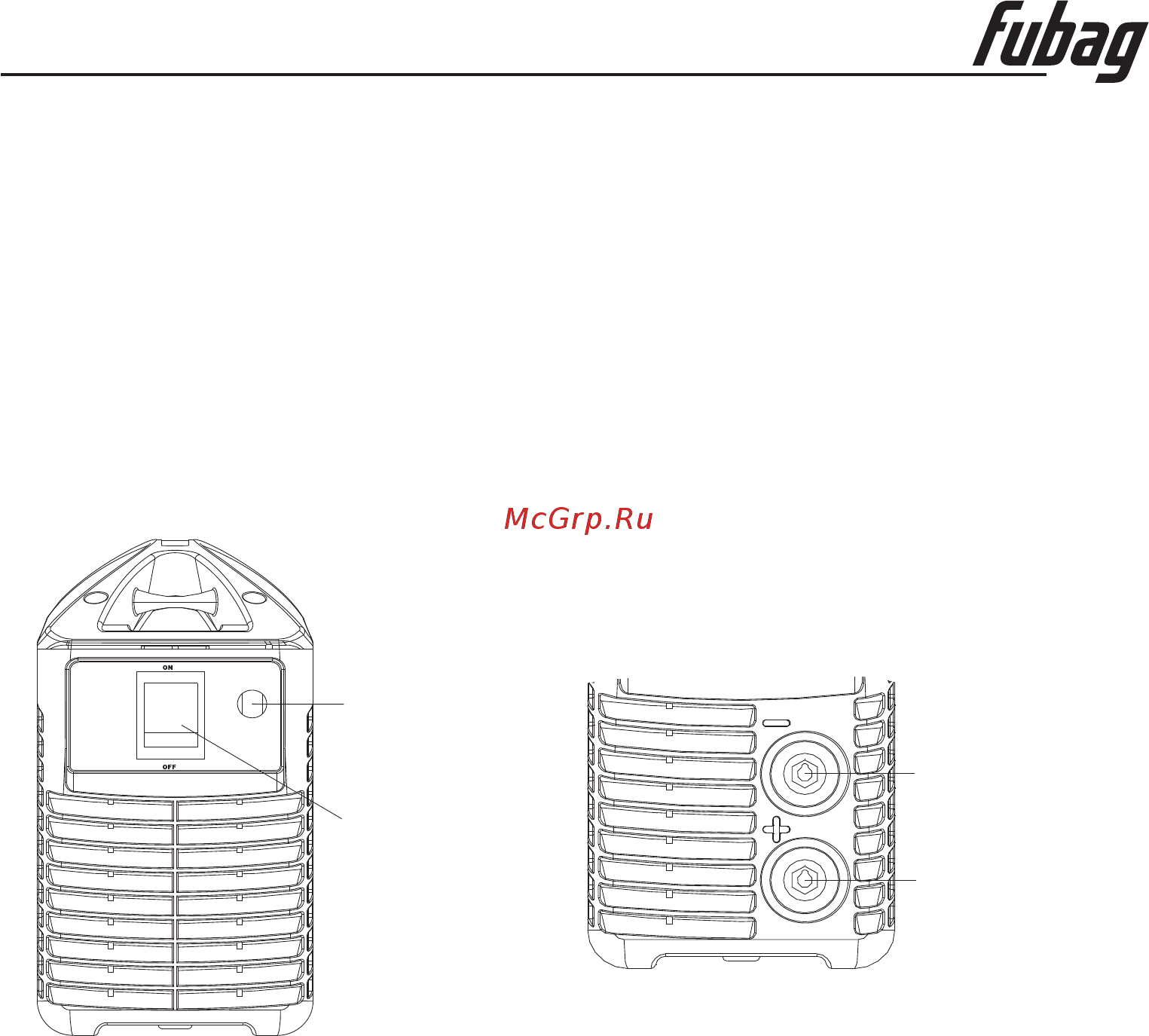

Connection between Welder and Power Source

Connect the power source cable at the back board of the welder into the single phase 220 voltage

power network with breaker; 380 voltage power sources is strictly prohibited to the welder which will

severely damage the welder, otherwise the user should take the consequences for it.

: Power network earth connection is not power network connection zero.Notice

ON/OFF

Power

cable

Quick

connector of

electrode

holder

Quick

connector of

earth clamp

Connection between Welder and Torch

Connection between Welder and Work Piece

Insert the quick connector of the welding cable on the electrode holder into current output “-”

electrode adaptor on the second half of the front panel and then screw down clockwise.

Insert the quick connector of earth cable with earth clamp into current output electrode adaptor on

the second half of the front panel and then screw down clockwise. The earth clamp is connected with

work piece.

: Do not use steel plate or the materials alike which are ill conductor to connect between

welder and work piece.

'-'
