10
40
MOT1800
ASSEMBLY INSTRUCTIONS

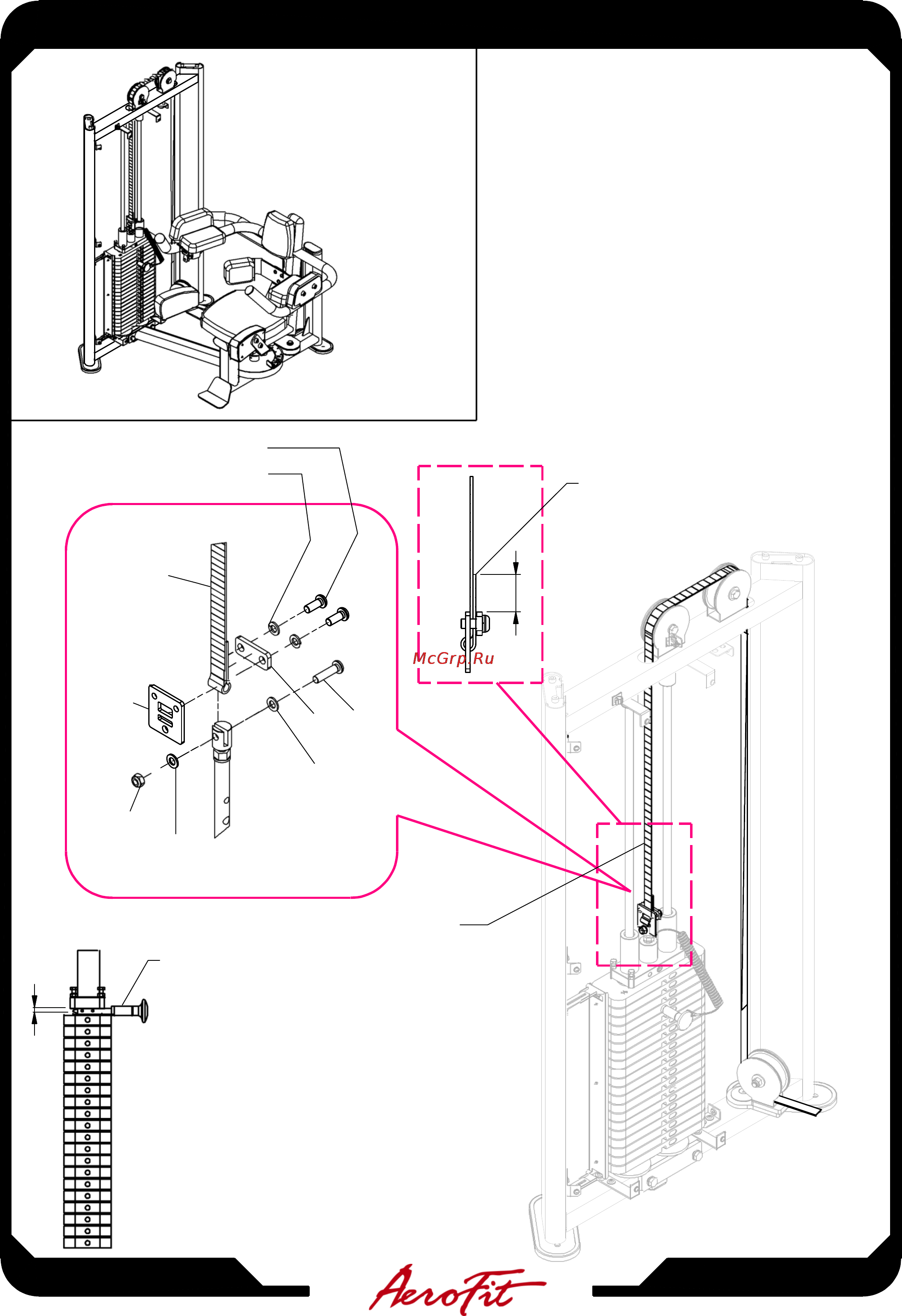

Above shows STEP
7
assembled and
completed
M10X25L ROUND BOLT X2
M10 SPRING WASHER
X2
DETAIL VIEW
The belt should reserve
40mm
extra
length
D8
AH
AP
AA3
CC4
BB2
CC4
The tread side should be
outward
Adjust Belt
Procedure:
1. Lift the selector rod a little and
then
insert the pin between first weight
stack
and top plate (Do not insert though
the
first hole of the rod), and there
are
10 mm gap between top plate and
first
weight
stack.
2. Adjust the belt to have proper tension
and
then tighten the belt
clamps
3. Remove the pin and let the top plate
fall
on the first weight
plate.
MOT1800-072010
Page
13
