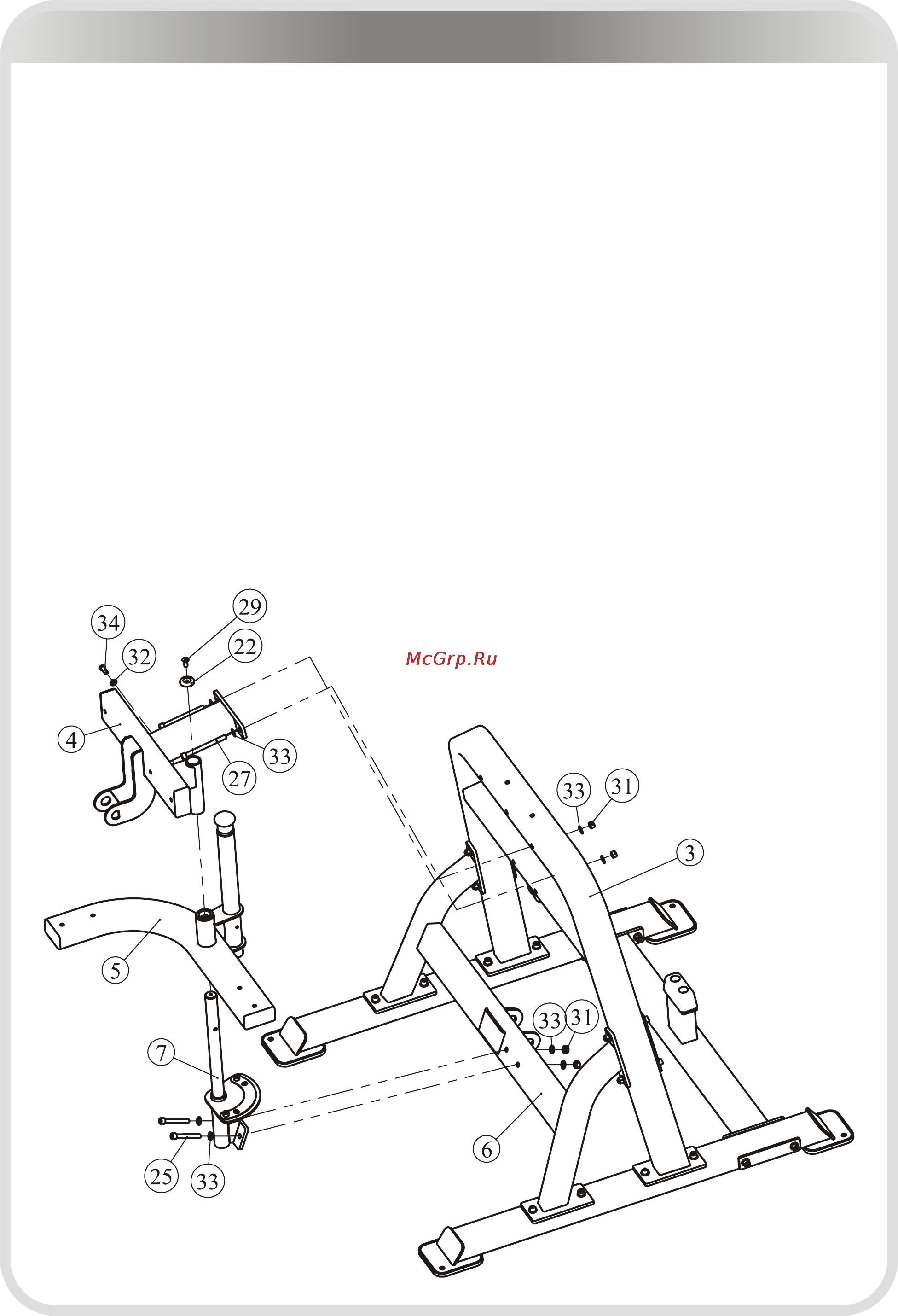

Assembly

1. Attach Support Frame ASSY (#7) to Bracket Frame (#6), using:

● two M12*85 SHCS (#25)

● two M12 Nylon lock Nuts (#31)

● four Φ13*Φ24*1.5 Flat Washers (#33)

2. Attach Rotating Frame ASSY (#5), Up Support Frame ASSY (#4) to Support Frame

ASSY (#7), using:

● one Φ43 End Cap, AL, DIA (#22)

● one M10*25 FHCS (#29)

● one M10*30 BHCS (#34)

● one Φ11*Φ20*2 Flat Washers (#32)

3. Attach Up Support Frame ASSY (#4) to Stangding Frame ASSY (#3), using:

● two M12*135 SHCS (#27)

● two M12 Nylon Lock Nuts (#31)

● four Φ13*Φ24*1.5 Flat Washers (#33)

Note: Adjusted and Tighten all the hardware.

STEP 3
