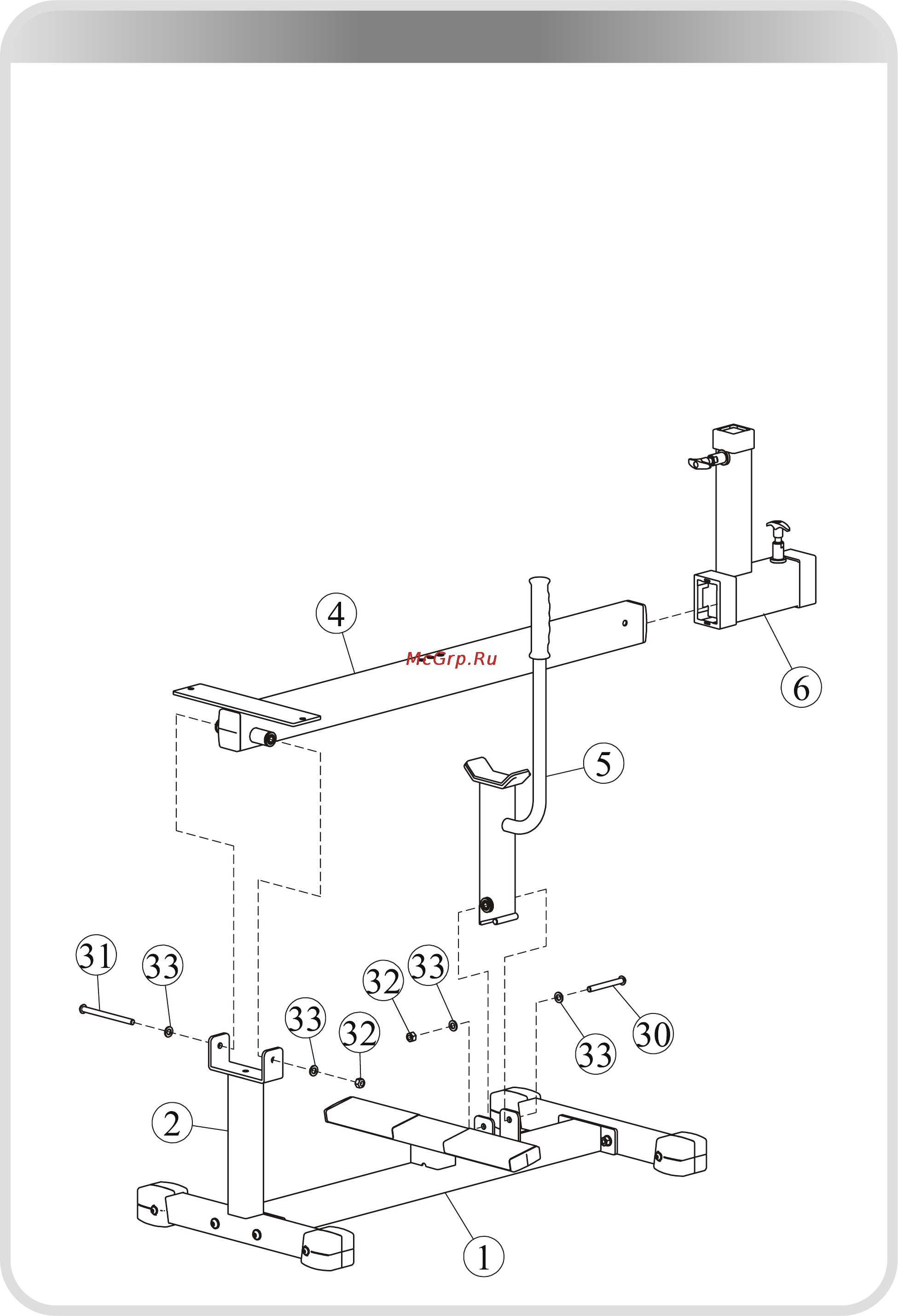

1. Attach the Swing Frame (#4) to the Upright Rear (#2) using:

one M10*165 BHCS (#31) two Φ11*Φ20*2 Flat Washers (#33)

one M10 Nylon lock Nut (#32)

2. Attach the Stopper Frame (#5) to Cross Base (#1) using:

one M10*90 BHCS (#30) two Φ11*Φ20*2 Flat Washers (#33)

one M10 Nylon lock Nut (#32)

3. Attach the Adjustable Slide (#6) to the Swing Frame (#4).

Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
