Philips CEM3100/12 [10/28] Mount into the dashboard

Philips CEM3100/12 [10/28] Mount into the dashboard

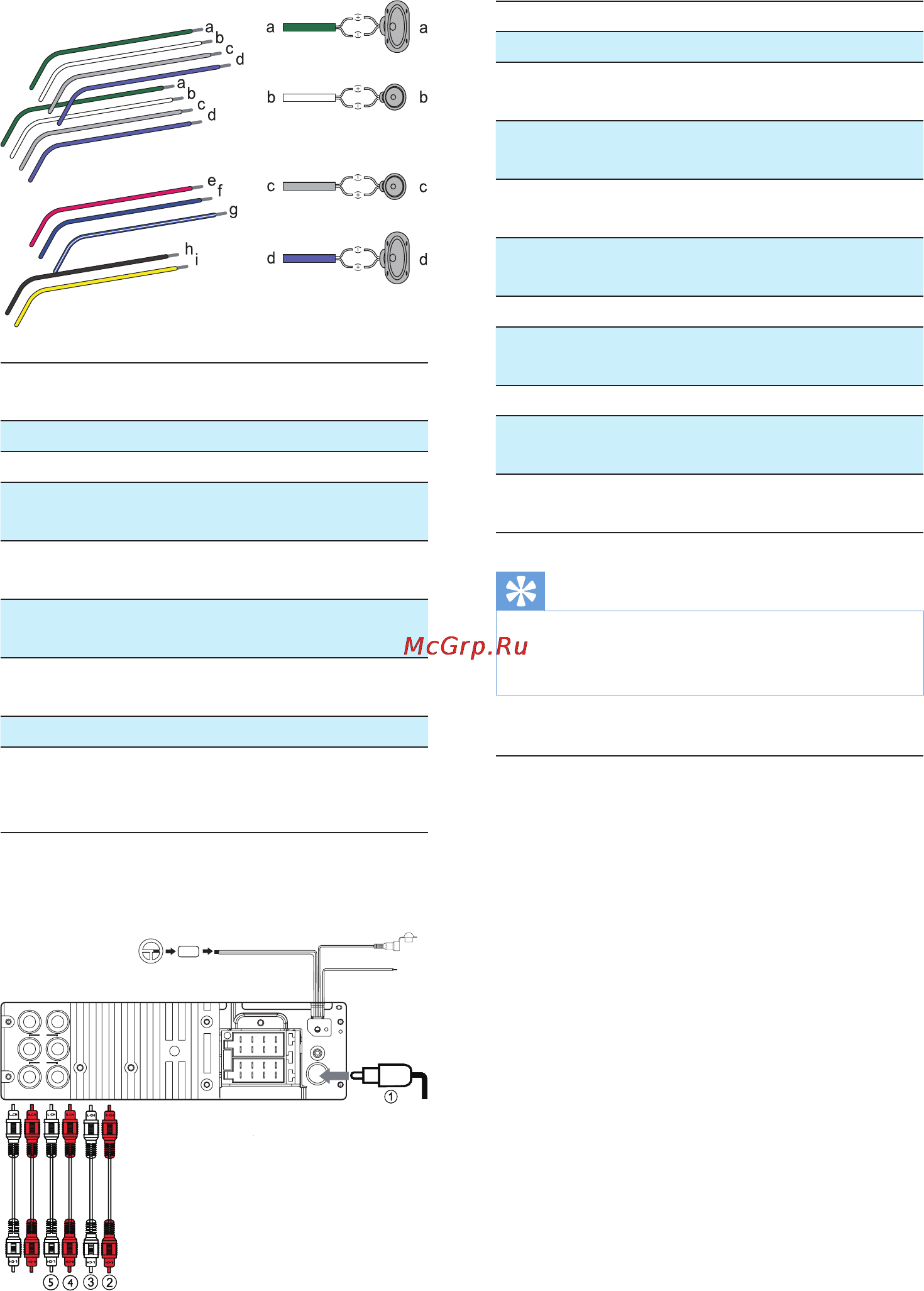

8 EN
1 Green/black
strip
Left speaker (Rear)
2 White/black strip Left speaker (Front)
3 Gray/black strip Right speaker (Front)
4 Purple/black
strip
Right speaker (Rear)
e Red Ignition key +12V DC
when ON/ACC
f Blue Motor/electric antenna
relay control lead
g White-edged
blue strip
Amplierrelaycontrol
lead
h Black Ground
i Yellow To the +12V car battery
which is energized at all
times
3 Connecttheantennaandamplieras
illustrated, if applicable.
f
g
h
i
5($5
)5217
5
/
5($5$8;
/5
j
Connector Connect to
1 ANTENNA Antenna
2 FRONT LINE OUT R
(Socket)
Front right
speaker
3 FRONT LINE OUT L
(Socket)
Front left
speaker
4 REAR LINE OUT R
(Socket)
Rear right
speaker
5 REAR LINE OUT L
(Socket)
Rear left speaker
6 OE REMOTE (Purple) OE Remote
7 TEL MUTING (Blue) To cellular phone
system
8 SUBWOOFER (Blue) Subwoofer
9 REAR AUX LINE
OUT R
Rear Aux right
10 REAR AUX LINE
OUT L
Rear Aux left
Tip
• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
Mount into the dashboard
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
