CB-ONE Module Assembly
The CB-ONE Module is designed to fi t the Suunto SM-26/36 analog pressure gauges.
Before assembling the CB-ONE module the hose cover needs to be fi tted on the pressure
hose. The hose cover ensures that the SM-26/36 pressure gauge fi ts properly on the CB-ONE
module.
If the Suunto Quick Release is used, the hose cover is not to be used
(See section CB-ONE module assembly using the SUUNTO Quick Release).

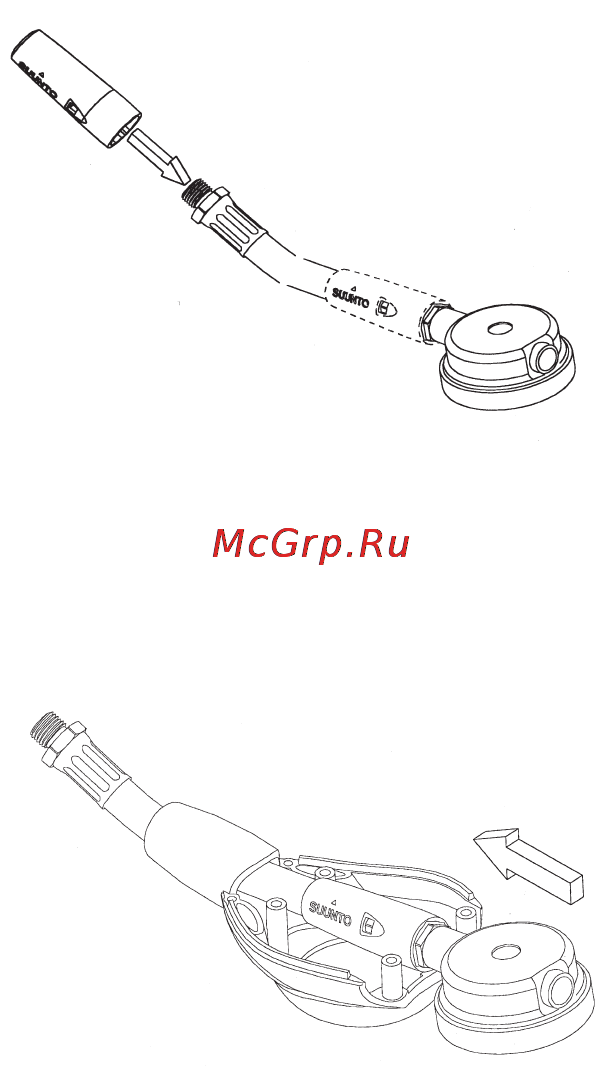

After attaching the hose cover the pressure hose and gauge are assembled on the
CB-ONE front cover according to the picture.
After the pressure gauge is in place the CB-ONE back cover
(or alternatively the CB-71/SK-7/DS compass) is attached with four screws.
