5.6. DISPLAY SHIELD REPLACEMENT

Unscrew the four screws at the back of the console and remove the back cover.

Remove the computer and the display shield. Install new display shield and reinstall

computer and console back.

5.7. COMPASS ATTACHMENT

Unscrew the four screws at the back of the console and remove the back cover.

Replace the console end part with compass. Reassemble console.

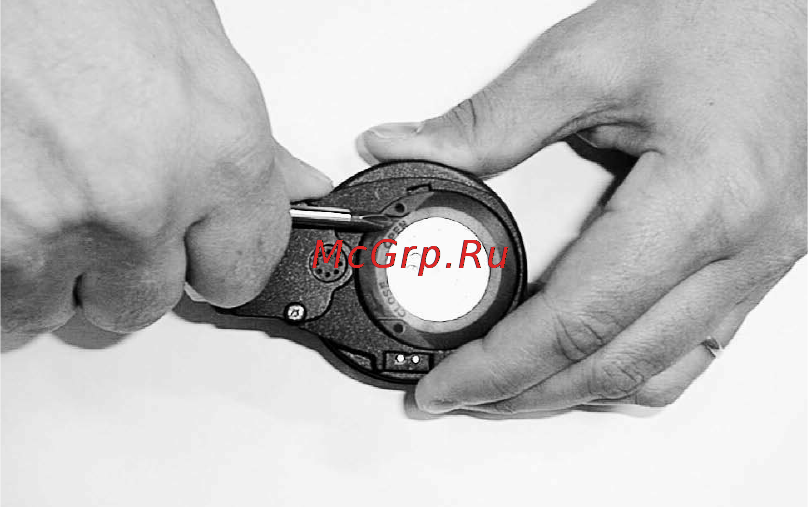

Fig. 5.3. Opening of securing ring.
