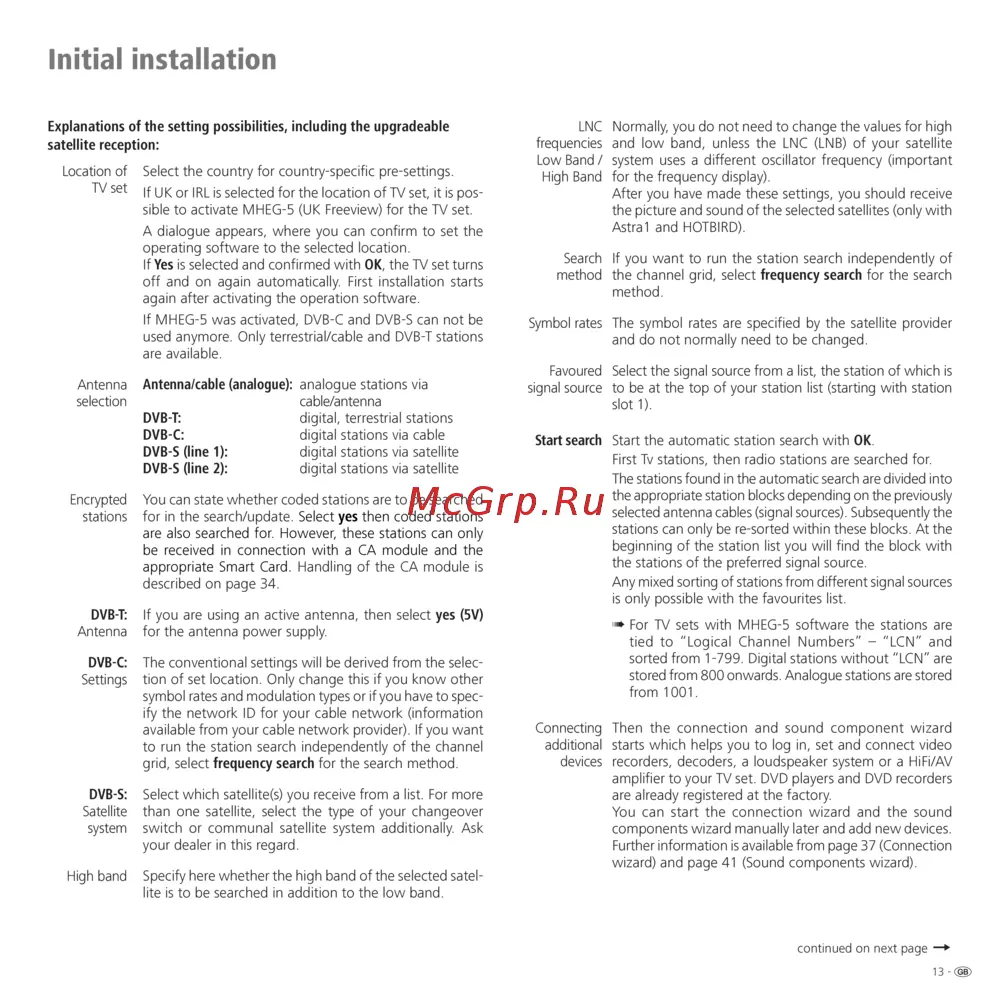

13 -
Normally, you do not need to change the values for high
and low band, unless the LNC (LNB) of your satellite
system uses a different oscillator frequency (important
for the frequency display).
After you have made these settings, you should receive
the picture and sound of the selected satellites (only with
Astra1 and HOTBIRD).
If you want to run the station search independently of
the channel grid, select frequency search for the search
method.
The symbol rates are specified by the satellite provider
and do not normally need to be changed.
Select the signal source from a list, the station of which is
to be at the top of your station list (starting with station
slot 1).
Start the automatic station search with OK.
First Tv stations, then radio stations are searched for.
The stations found in the automatic search are divided into
the appropriate station blocks depending on the previously
selected antenna cables (signal sources). Subsequently the
stations can only be re-sorted within these blocks. At the
beginning of the station list you will find the block with
the stations of the preferred signal source.
Any mixed sorting of stations from different signal sources
is only possible with the favourites list.
➠ For TV sets with MHEG-5 software the stations are
tied to “Logical Channel Numbers” – “LCN” and
sorted from 1-799. Digital stations without “LCN” are
stored from 800 onwards. Analogue stations are stored
from 1001.
Then the connection and sound component wizard
starts which helps you to log in, set and connect video
recorders, decoders, a loudspeaker system or a HiFi/AV
amplifier to your TV set. DVD players and DVD recorders
are already registered at the factory.
You can start the connection wizard and the sound
components wizard manually later and add new devices.
Further information is available from page 37 (Connection
wizard) and page 41 (Sound components wizard).
Initi�l inst�ll�tion
Explanations of the setting possibilities, including the upgradeable
satellite reception:
Select the country for country-specific pre-settings.
If UK or IRL is selected for the location of TV set, it is pos-
sible to activate MHEG-5 (UK Freeview) for the TV set.
A dialogue appears, where you can confirm to set the
operating software to the selected location.
If Yes is selected and confirmed with OK, the TV set turns
off and on again automatically. First installation starts
again after activating the operation software.
If MHEG-5 was activated, DVB-C and DVB-S can not be
used anymore. Only terrestrial/cable and DVB-T stations
are available.
Antenna/cable (analogue):
analogue stations via
cable/antenna
DVB-T: digital, terrestrial stations
DVB-C: digital stations via cable
DVB-S (line 1): digital stations via satellite
DVB-S (line 2): digital stations via satellite
You can state whether coded stations are to be searched
for in the search/update. Select yes then coded stations
are also searched for. However, these stations can only
be received in connection with a CA module and the
appropriate Smart Card. Handling of the CA module is
described on page 34.
If you are using an active antenna, then select yes (5V)
for the antenna power supply.
The conventional settings will be derived from the selec-
tion of set location. Only change this if you know other
symbol rates and modulation types or if you have to spec-
ify the network ID for your cable network (information
available from your cable network provider). If you want
to run the station search independently of the channel
grid, select frequency search for the search method.
Select which satellite(s) you receive from a list. For more
than one satellite, select the type of your changeover
switch or communal satellite system additionally. Ask
your dealer in this regard.
Specify here whether the high band of the selected satel-
lite is to be searched in addition to the low band.
LNC
frequencies
Low Band /
High Band
Search
method
Symbol rates
Favoured
signal source
Start search
Connecting
additional
devices
Location of
TV set
Antenna
selection
Encrypted
stations
DVB-T:
Antenna
DVB-C:
Settings
DVB-S:
Satellite
system
High band
continued on next page
