- 6
ANT OUT
(1
Connect antenna
output with ANT-TV
(tuner 1)
ANT-TV
Antenna/cable
analogue/digital
(Tuner 1)
mains switch
CONTROL
(1
- rotating stand control
RS-232C
(1
- serial interface
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO OUT L/R - audio output left right (analogue)
ANT SAT2
(1
Satellite antenna
(Sat tuner 2)
ANT2
(1
Antenna/cable
analogue/digital
(Tuner 2)
AV1
Euro-AV
socket 1
AV2 (RGB)
Euro-AV
socket 2
220-240V~ 50/60Hz
mains connection
SERVICE - service socket
PC IN - VGA-/XGA input
HDMI2 - HDMI (DVI) input 2
AUDIO DIGITAL IN - digital audio input
USB
(1
- USB connection 2 (USB stick/card reader)
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
Headphones
connection
Common Interface
(CI-Slot)
S-VHS connection (AVS)
(e.g. for camcorder)
Video in (AVS)
Audio in right (AVS)
Audio in left (AVS)
AUDIO IN1 C - centre audio input (analogue)
AUDIO LINK
(1
- surround audio outputs (analogue)
HDMI1 - HDMI (DVI) input 1
USB connection 1
(USB stick/card reader)
ANT SAT
(1
Satellite antenna
(Sat tuner 1)
AUDIO IN2 - audio input (analogue)
AUDIO DIGITAL OUT - digital audio output
LAN
(2
-
network
connection
Connection for additional antenna
(2

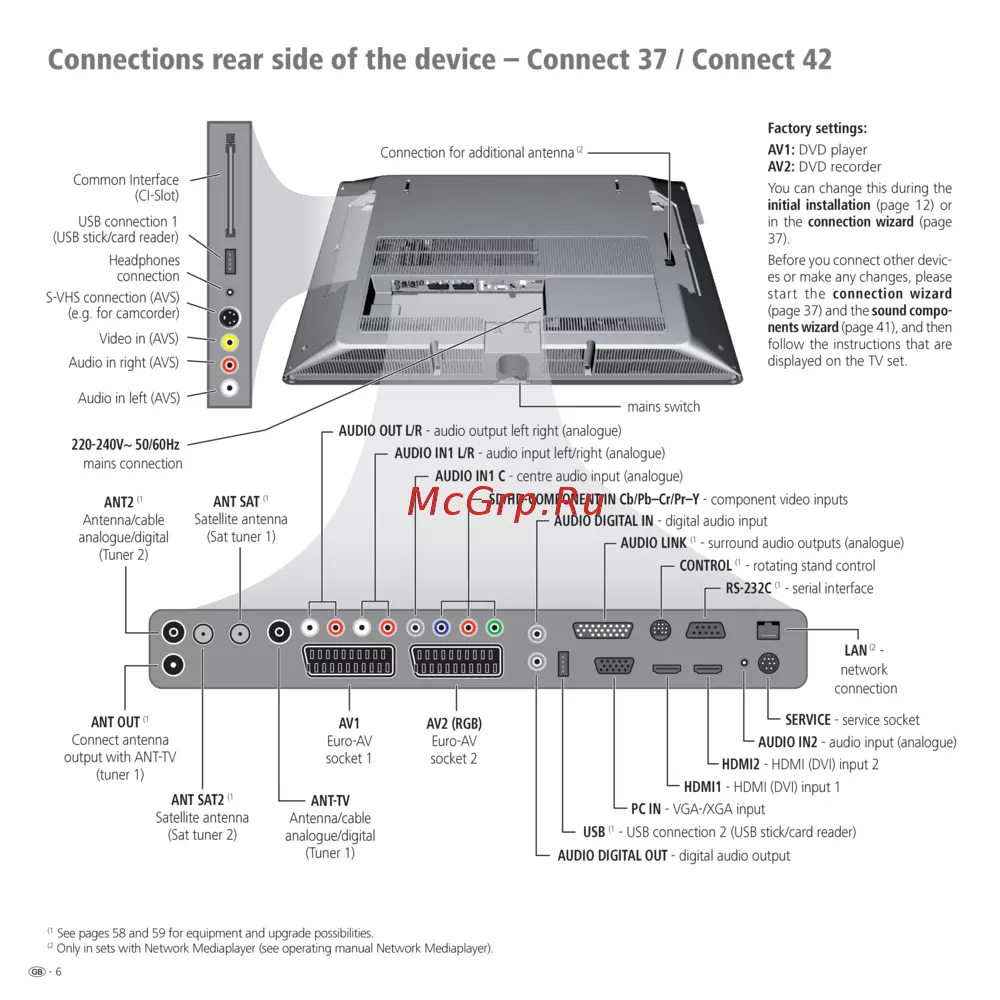

Connections rear side of the device – Connect 37 / Connect 42
Factory settings:
AV1: DVD player
AV2: DVD recorder
You can change this during the
initial installation (page 12) or
in the connection wizard (page
37).
Before you connect other devic-
es or make any changes, please
start the connection wizard
(page 37) and the sound compo-
nents wizard (page 41), and then
follow the instructions that are
displayed on the TV set.
(1
See pages 58 and 59 for equipment and upgrade possibilities.
(2
Only in sets with Network Mediaplayer (see operating manual Network Mediaplayer).
