- 22
D�ily oper�tion

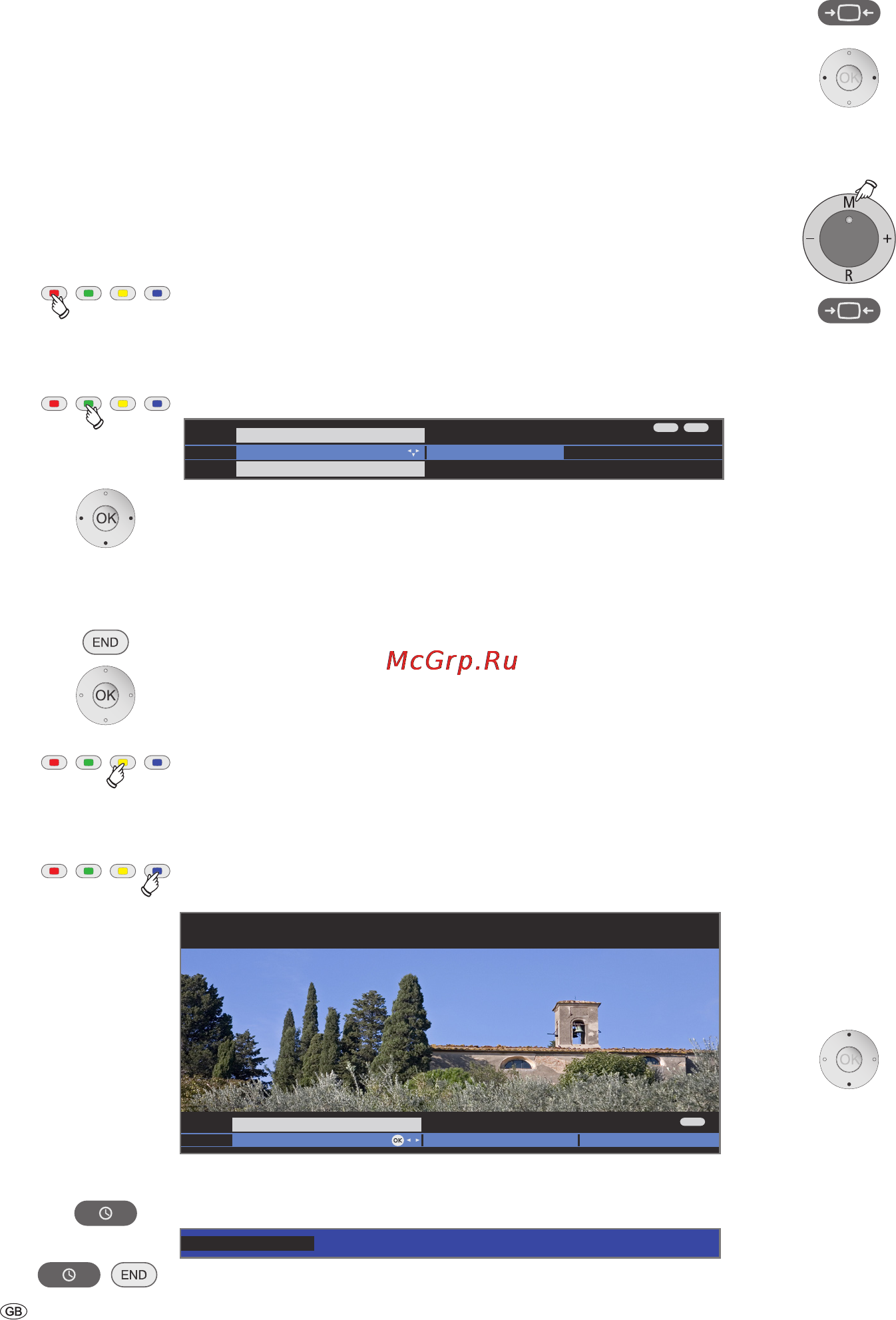

Button functions
Every operating mode of the TV set (TV, Radio, Teletext, EPG, PIP, PhotoViewer,
MusicBox and DR archive, if equipped with Digital Recorder) has its own menu
and own functions for the coloured buttons. The function of the coloured
buttons is shown at the bottom of the menus and wizards.
Below, some of the function are listed which you need in TV mode for the
daily handling of your TV set.
Functions of the coloured buttons in TV mode
➠ The coloured buttons do not work as described below
for TV sets with MHEG-5 software, but they operate as
described on page 33 (Digital Teletext).
Red button: Freeze on/off
In sets with Digital Recorder: DR archive on/off.
For TV sets with MHEG-5 software you can open the DR
archive via the menu Assist+ (see page 16).
Green button: Open the Teletext functions menu.
34 Select Teletext subtitles or Personal text pages.
6 Go to the menu line below in Teletext subtitles.
34 Select the size of the Teletext subtitles,
OK show Teletext subtitles.
(display only if subtitles are available).
END: Teletext subtitles off or select off in menu.
OK in Personal text pages calls the teletext pages or
the teletext page directly if only one page is noted
(for defining pages, see page 33).
Yellow button: Go to the last viewed station.
Use this button to quickly switch back and forth between
two stations. For MHEG-5 see page 18 or on this page at
the right lower column.
Blue button: Show programme info.
For MHEG-5, no programme info is available.
Permanent display of time
Press twice in rapid succession,the time is displayed permanently.
K or END: Hide time.
Selecting the picture format
Press the Picture format button until the desired picture
format is set or with
34 to select the desired picture format.
The Panorama picture format can be set between
proportionally correct and format filling display. Black
bars are visible on the left and right of the picture in
the prportionally correct display.
Switch: Keep the M button on the TV pressed, at the
same time, press the Picture format button on the remote
control briefly.
Reset: Press the same button combination again.
Explanations of the picture formats:
➠ The setting options depend on the transmitted picture
content.
16:9 Proportionally correct display of 16:9 broadcasts.
4:3 Proportionally correct display of 4:3 broadcasts.
Panorama Proportionally correct or format filling display (as-delivered
state) of 4:3 broadcasts on the 16:9 screen. Station logo
and subtitles remain visible.
See above for switching the Panorama mode.
Cinema Proportionally correct, format filling display of 4:3 broad-
casts on 16:9 screens. Station logo and subtitles usually
not visible.
Zoom Proportionally correct display. Maximum picture magni-
fication.
PALplus Is a 4:3-compatible 16:9 picture broadcast supplied by
the station which is detected automatically.
If a high resolution video signal is displayed on the TV set
or fed in via the interfaces PC IN, HDMI1/DVI, HDMI2/DVI
oder COMP. IN, the picture formats 16:9 TV, 4:3 TV and
16:9 PC, 4:3 PC and Zoom can be set.
Move picture vertically
➠ In normal TV mode without other displays.
6Move picture up/down.
To show subtitles or news tickers which have been cut
off, the picture can be moved up or down in the picture
formats Panorama, Cinema and Zoom (not with high
resolution signal) with the arrow buttons 6.
➠ For TV sets with MHEG-5 software you can switch
back and forth quickly between two stations using
these buttons (see also on page 18).
Detailed info (teletext) Programme previewDetailed info
Programme info 14:43
1 ARD
14:30 - 15.15 Urlaubsparadies Toskana
END
OK
END
INFO
on, with normal size ...
Teletext subtitles Personal text pages
Teletext functions
14:42
