Panasonic WV-SP105 [35/64] Set the vmd areas vmd area

34

35

Step 1

Set the video motion detection area by dragging the

mouse on the screen.

→ The designated area will become the VMD area

"1(White)" and the outline will be displayed. When

2 - 4 VMD areas are set, each area will be numbered

"Detection area" can be adjusted by moving the slider

between the left end position and the center position.

"Detection sensitivity" can be adjusted by moving the

slider between the left end position and the right end

position.

Refer to page 33 for further information about the

"Detection sensitivity" and "Detection area".

Note:

 • When"Detectionarea"cannotbeadjustedproperly

by moving the slider, adjust "Detection sensitivity"

ton is clicked.

Step 4

To invalidate the VMD area, click the [Set] button after

selecting"Off"for"Status"oftheVMDareatobeinvali-

dated.

→ The outline of the invalidated VMD area will turn to a

dotted line. When the VMD area is invalidated, no

alarm will occur even when a motion can be recog-

nized in the area.

Click the [Setup] button.

→ The edited settings will be applied.

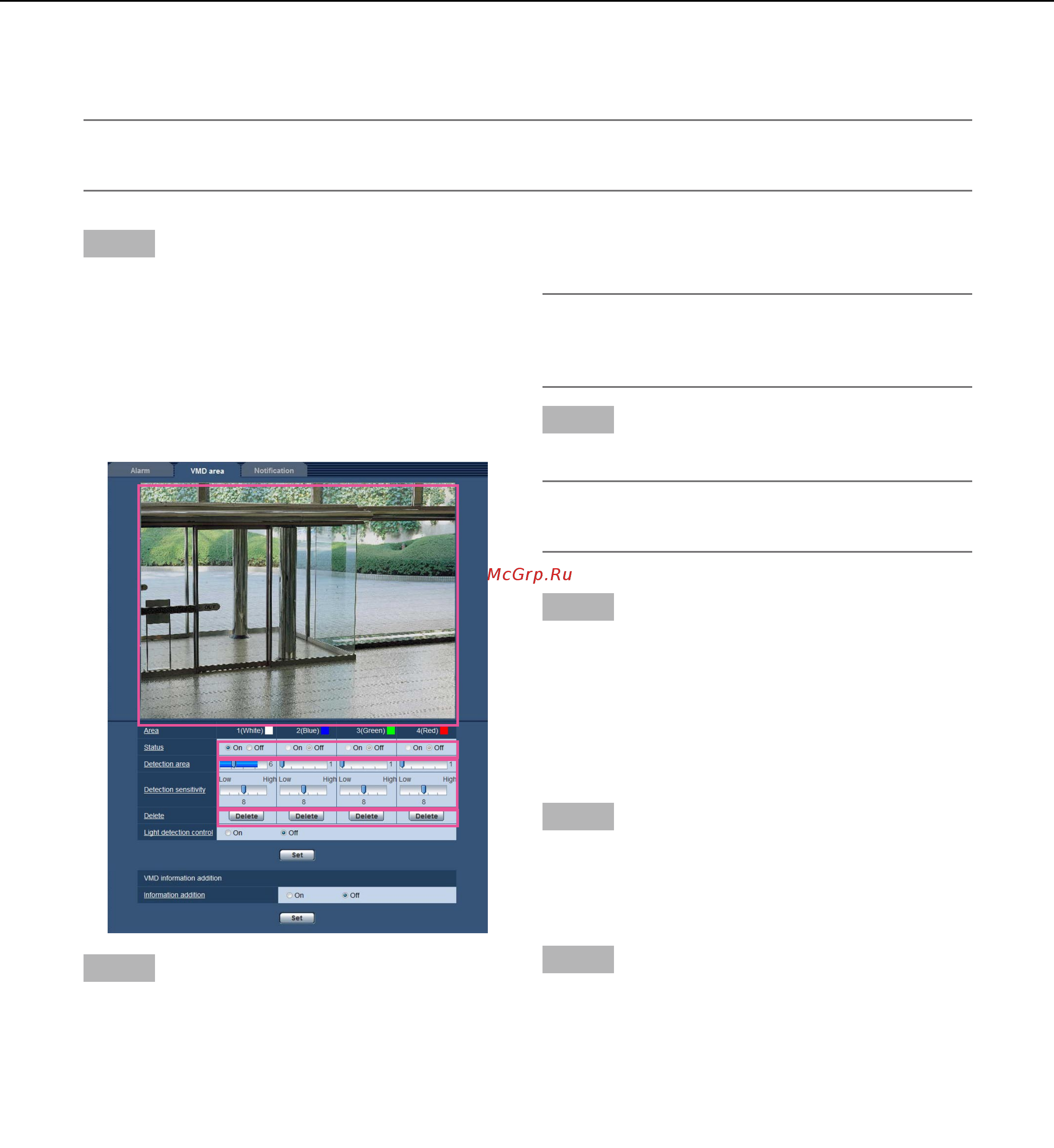

Set the VMD areas [VMD area]

Set the areas to activate the VMD function.

Important:

 • Whenthesettingsarebeingconfiguredonthesetupmenu,sometimestheVMDfunctionmaynotworkcor-

rectly.
