Soundmax SM-CCR3030 [5/28] Attaching the control panel

Detaching the front panel

1. Press the OPEN button on the front panel. The panel will go

down (pic. 1).

2. Push the panel to the right and then pull it towards you (pic.

2).

Attaching the control panel

1. Insert the right side of the control panel into the main unit (pic. 3).

Note: the control panel must be attached into the T-Joint.

2. Press the control panel on to the left side of middle of it until a click sound is

heard.

3. Close the panel.

Caution:

DO NOT insert the control panel from the left side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be

careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be

careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in

isopropyl alcohol to clean the socket on the back of the control panel.

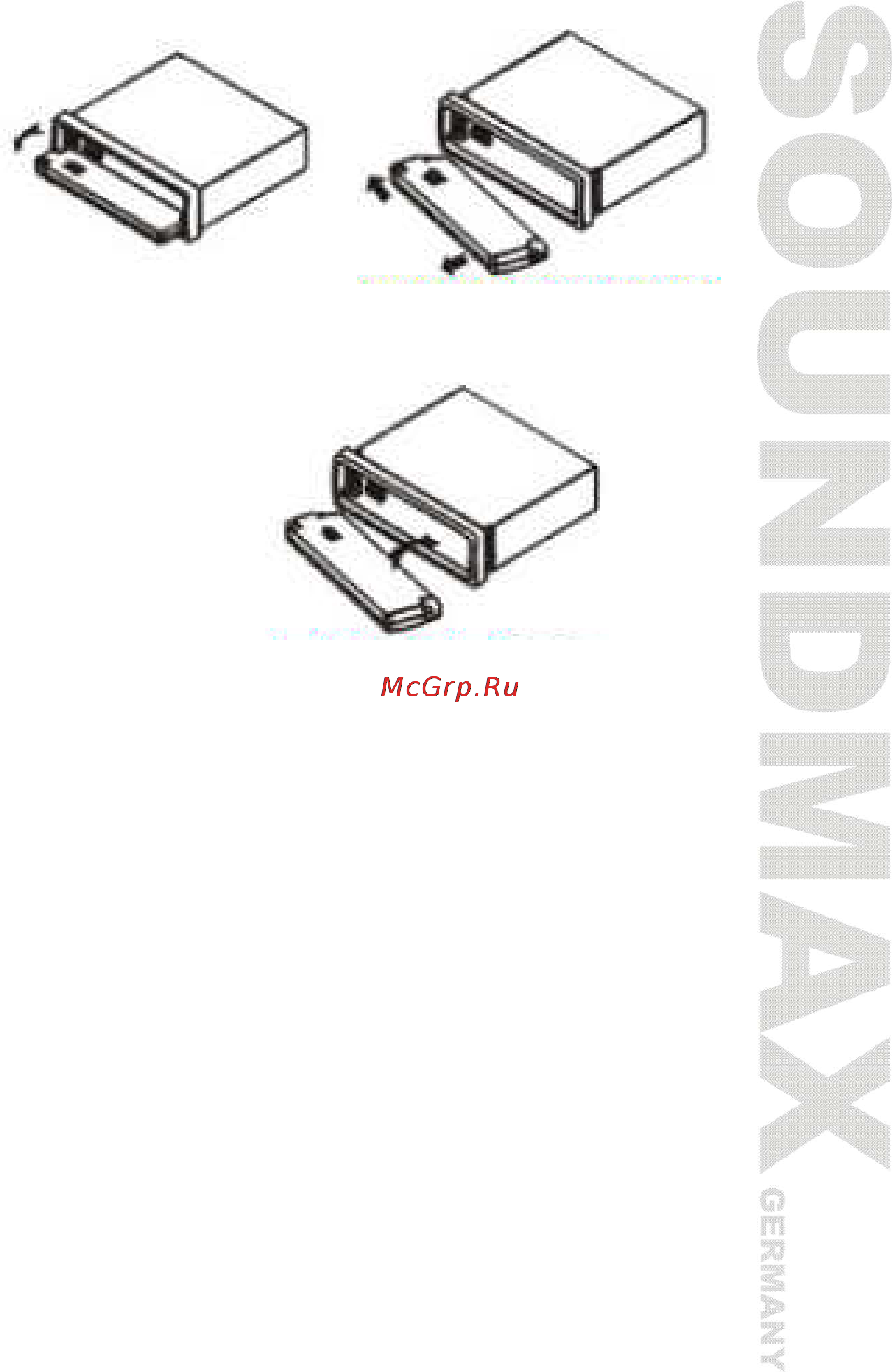

Pic. 1

Pic. 2

Pic. 3
