The Perfect Balance of Modern Design

& Classic Performance

●Equipped with Roland’s finest 88-key multi-sampled

piano sound engine; each and every key of a full

concert grand has been painstakingly reproduced

●128-voice polyphony ensures that your notes will

sustain fully and naturally, regardless of how fast or

densely you play

●New PHA II (Progressive Hammer Action II) keyboard

that responds naturally from pianissimo to fortissimo;

the touch can be adjusted in 100 incremental steps

●Audio Key feature allows audio (.wav) files from USB

memory key to be played back with the keyboard

●A large variety of Session Partner accompaniment patterns

(each with two variations) for full-band accompaniment

●Large graphic LCD for easy operation

●Delivers rich, sparkling sound from internal speaker boxes

●Computer connection via USB (MIDI) for enhanced

song creation and recording

●Cakewalk SONAR LE pro recording and editing

software included

FP-4-BK/FP-4-WH Specifications

[Keyboard] ■ Keyboard 88 keys PHA alpha II keyboard ■ Touch Sensitivity Light, Medium, Heavy, Off

(velocity adjustable) [Sound Generator] ■ Conforms to GM2 system, GS format, XG lite ■ Max. Polyphony

128 voices ■ Tones 333 tones + 9 Drum Sets ■ Effects Reverb, Digital Effect (62 types), Sound Control (3

types), 4-band Digital Equalizer ■ Session Partner Rhythm: 80 types x 2 variations, Chord Progression:

Automatic or input with keyboard (User Programmable) [Recorder] ■ Tracks 3 tracks ■ Song 1 song (Max.

99 songs to Internal Memory) ■ Note Storage Approx. 30000 notes ■ Tempo Quarter note = 10 to 500

■ Resolution 120 ticks per quarter note ■ Registration To Internal Memory: 24 x MAX. 25 sets ■ Internal

Songs 65 Songs ■ Demo Songs 8 Songs [Other] ■ Rated Power Output 7 W x 2 ■ Speakers 8 cm x12cm

x 2 ■ Display 7 segments, 3 characters (LED) ■ Connectors Output Jacks (L/Mono, R): 1/4 inch phone type,

Input Jacks (L/Mono, R): 1/4 inch phone type, Headphone Jack x 2: Stereo 1/4 inch phone type, USB (MIDI)

Connector, MIDI Connectors (In, Out), Pedal Jacks (Damper, Soft*, Sostenuto*) *Assignable, DC In Jack

■ Power Supply DC 9 V (AC Adaptor) ■ Power Consumption 22 W ■ Dimensions 1342 (W) x 305 (D) x

135 (H) mm/ 52-7/8 (W) x 12-1/16 (D) x 5-3/8 (H) inches, FP-4 with dedicated stand KSC-44 and music rest:

1342 (W) x 341 (D) x 940 (H) mm/ 52-7/8 (W) x 13-7/16 (D) x 37-1/16 (H) inches ■ Weight 15.3 kg/ 33 lbs

12 oz, FP-4 with dedicated stand KSC-44 and music rest: 26.8kg/ 60 lbs 7 oz ■ Accessories Owner’s

Manual, AC Adaptor, Power Cord, Music Rest, 2 screws for the Music Rest, Pedal (available Half-damper)

■ Options Dedicated stand: KSC-44-BK/-WH, Damper Pedal: DP-10/DP-8, Expression Pedal: EV-5

* The specifications are subject to change without notice.

FP-7 Specifications

[Keyboard] ■ Keyboard 88 keys PHA II keyboard ■ Touch Sensitivity 100 levels, Off (velocity adjustable)

[Sound Generator] ■ Conforms to GM2 system, GS format, XG lite ■ Max. Polyphony 128 voices ■ Tones

339 tones (include 6 Tone Wheel Organ) + 9 Drums Sets ■ Effects Reverb, Digital Effect (62 types), Sound

Control (3 types), 4-band Digital Equalizer ■ Session Partner Rhythm: 80 types x 2 variations, Chord

Progression: Automatic or input with keyboard (User Programmable) [Recorder] ■ Tracks 3 tracks ■ Song

1 song (Max. 99 songs to Internal Memory) ■ Note Storage Approx. 30000 notes ■ Tempo Quarter note =

10 to 500 ■ Resolution 120 ticks per quarter note ■ Registration To Internal Memory: 28 x MAX. 25 sets,

To USB Memory: 28 x MAX. 99 sets ■ Internal Songs 65 Songs ■ Demo Songs 10 Songs ■ Playback and

Save Media: USB Memory, Playback file: SMF format (0/1), Audio File (WAV format, 44.1 kHz, 16 bit linear),

*Audio File can be played with Audio Key Function. Save format: SMF format (0), Registration set [Other]

■ Rated Power Output 13 W x 2 ■ Speakers 8 cm x12cm x 2 with Speaker Box ■ Display Graphic LCD

128 x 64 dots (with backlit) ■ Connectors External Memory Connector, Output Jacks (L/Mono, R): 1/4 inch

phone type, Input Jacks (L/Mono, R): 1/4 inch phone type, Mix In Jack: Stereo miniature phone type,

Headphone Jack x 2: Stereo 1/4 inch phone type, USB (MIDI) Connector, MIDI Connectors (In, Out), Pedal

Jacks (Damper, Soft*, Sostenuto*) *Assignable, DC In Jack ■ Power Supply DC 12 V (AC Adaptor) ■ Power

Consumption 26 W ■ Dimensions 1346 (W) x 375 (D) x 137 (H) mm/ 53 (W) x 14-13/16 (D) x 5-7/16 (H)

inches, FP-7 with dedicated stand KSC-44 and music rest: 1346 (W) x 396 (D) x 949 (H) mm/ 53 (W) x 15-

5/8 (D) x 37-3/8 (H) inches ■ Weight 23.9 kg/ 52 lbs 12 oz, FP-7 with dedicated stand KSC-44 and music

rest: 36.1 kg/ 79 lbs 10 oz ■ Accessories Owner’s Manual, Audio Key Utility Quick Guide, CD-ROM (Audio

Key Utility), Information about SONAR LE, CD-ROM (SONAR LE), AC Adaptor, Power Cord, Music Rest, 2

screws for the Music Rest, Pedal (available Half-damper) ■ Options Dedicated Stand: KSC-44-BK, Damper

Pedal: DP-10/DP-8, Expression Pedal: EV-5, USB Memory: M-UF128, Holder (for External CD drive): DH-01

* The specifications are subject to change without notice.

Equipped with great sounds and intelligent features that can make you sound like a solo concert pianist or an

entire ensemble, the FP-7 is your ticket to a dynamic and exciting musical world. The intricate details of a real

piano have been captured, including hammer and damper noise, and string and key-off resonance. There’s

also a full complement of other instruments onboard, so you can sound like a complete ensemble.

Portable and Stylish, the New FP-4 Fits in Small Spaces

yet Performs like a Concert Grand

●Equipped with Roland’s finest 88-key multi-sampled

piano sound engine; each and every key of a full

concert grand has been painstakingly reproduced

●128-voice polyphony ensures that your notes will

sustain fully and naturally, regardless of how fast or

densely you play

●New PHA alpha II keyboard with finger response and

sensitivity

●Delivers rich, sparkling sound from internal speakers

●A large variety of Session Partner accompaniment patterns

(each with two variations) for full-band accompaniment

Featuring the same authentic piano sound and stylish body as the flagship FP-7, the FP-4 is a more affordable

and streamlined version. It sounds and feels like a real piano, and offers modern features that add musical

versatility and enjoyment.

16 17

*Actual product appearance may be subject to change.

FP-4-BK/FP-4-WH shown with the optional piano stands

(KSC-44-BK/WH, KS-18Z)

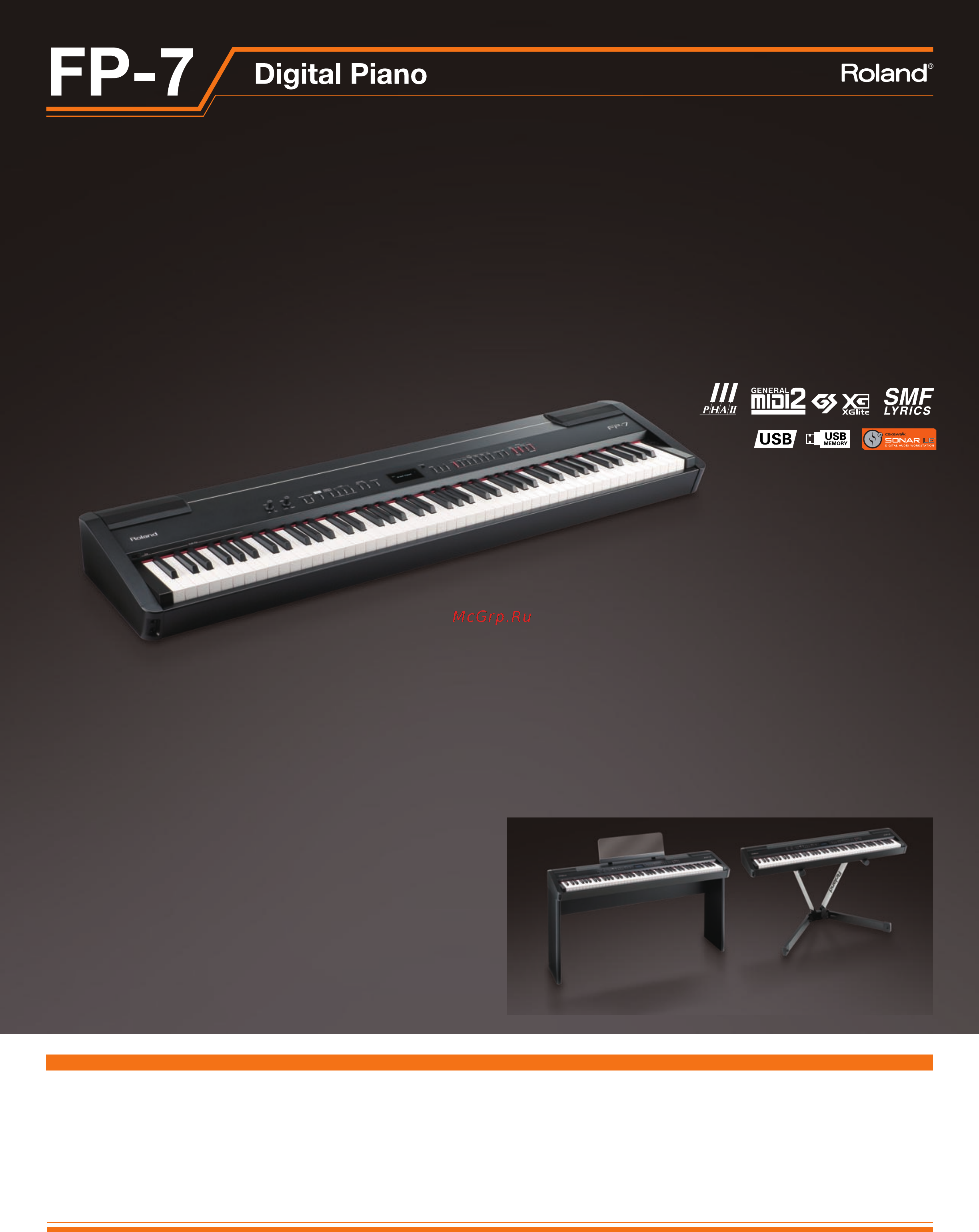

FP-7 shown with the optional piano stands (KSC-44-BK, KS-V7)

FP-4-WH

FP-4-BK
