InFocus IN5145 [8/36] Remote control

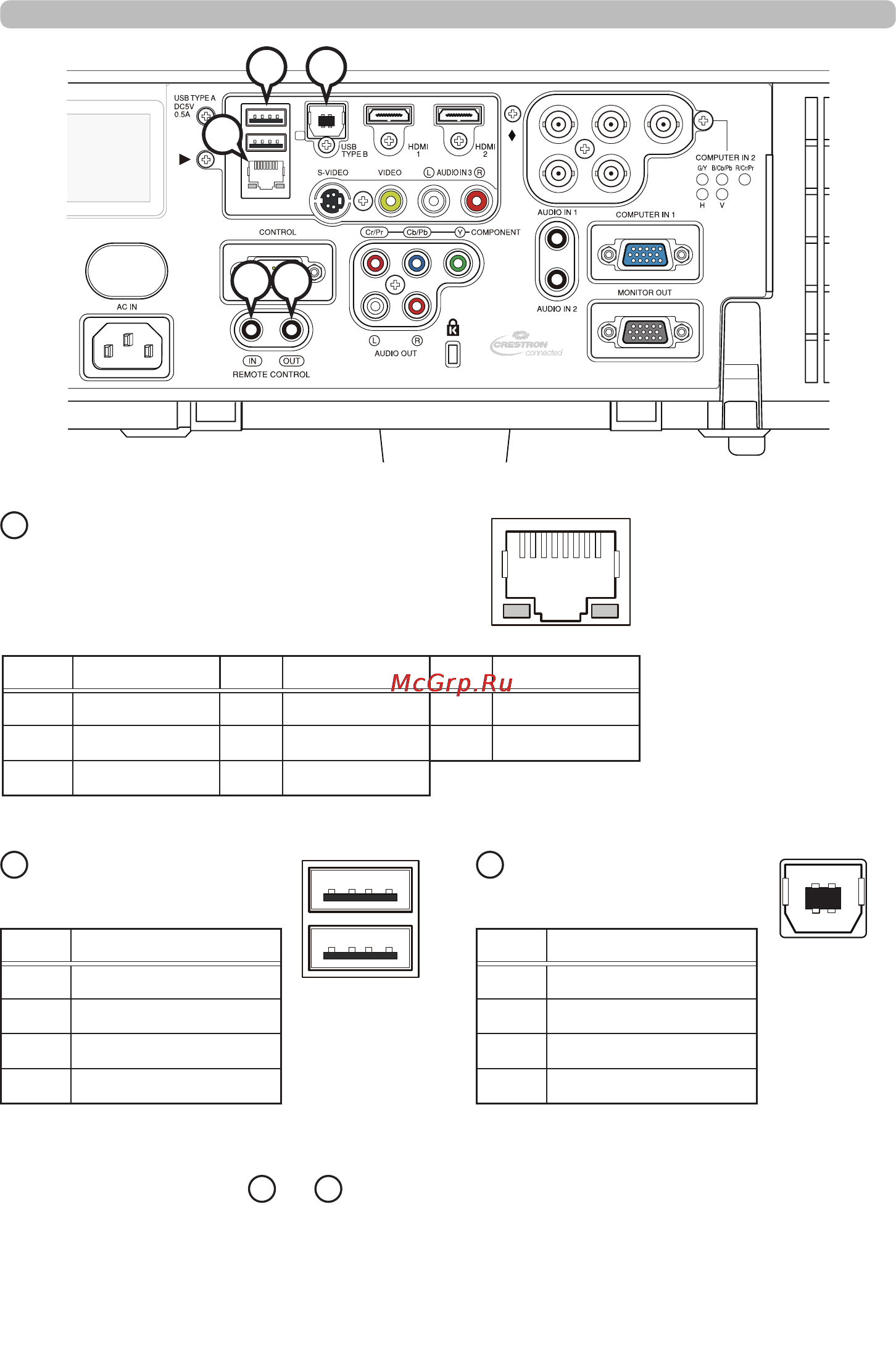

![InFocus IN5145 [8/36] Remote control](/views2/1144855/page8/bg8.png)
8
REMOTE CONTROL
Y
IN,
Z
OUT
Ø3.5 stereo mini jack
Connection to the ports (continued)
X
USB
TYPE B
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
V
LAN
RJ-45 jack
* Refer to the Network Guide for more details.
Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 -
8 -
3 RX+ 6 RX-
W
USB TYPE A
USB A type jack x2
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
①
④③
②
①
④③
②
① ⑤
④
③
② ⑥ ⑧
⑦
①⑤
④
③
②⑥⑧
⑦
① ④③②
①④ ③ ②
① ④③②
①④ ③ ②
W
X
Y
Z
V
