Smeg KSEV97X [6/11] Connections
![Smeg KSEV97X [6/11] Connections](/views2/1015042/page6/bg6.png)
15GB
12a
Vr
14.115
ø 150
10

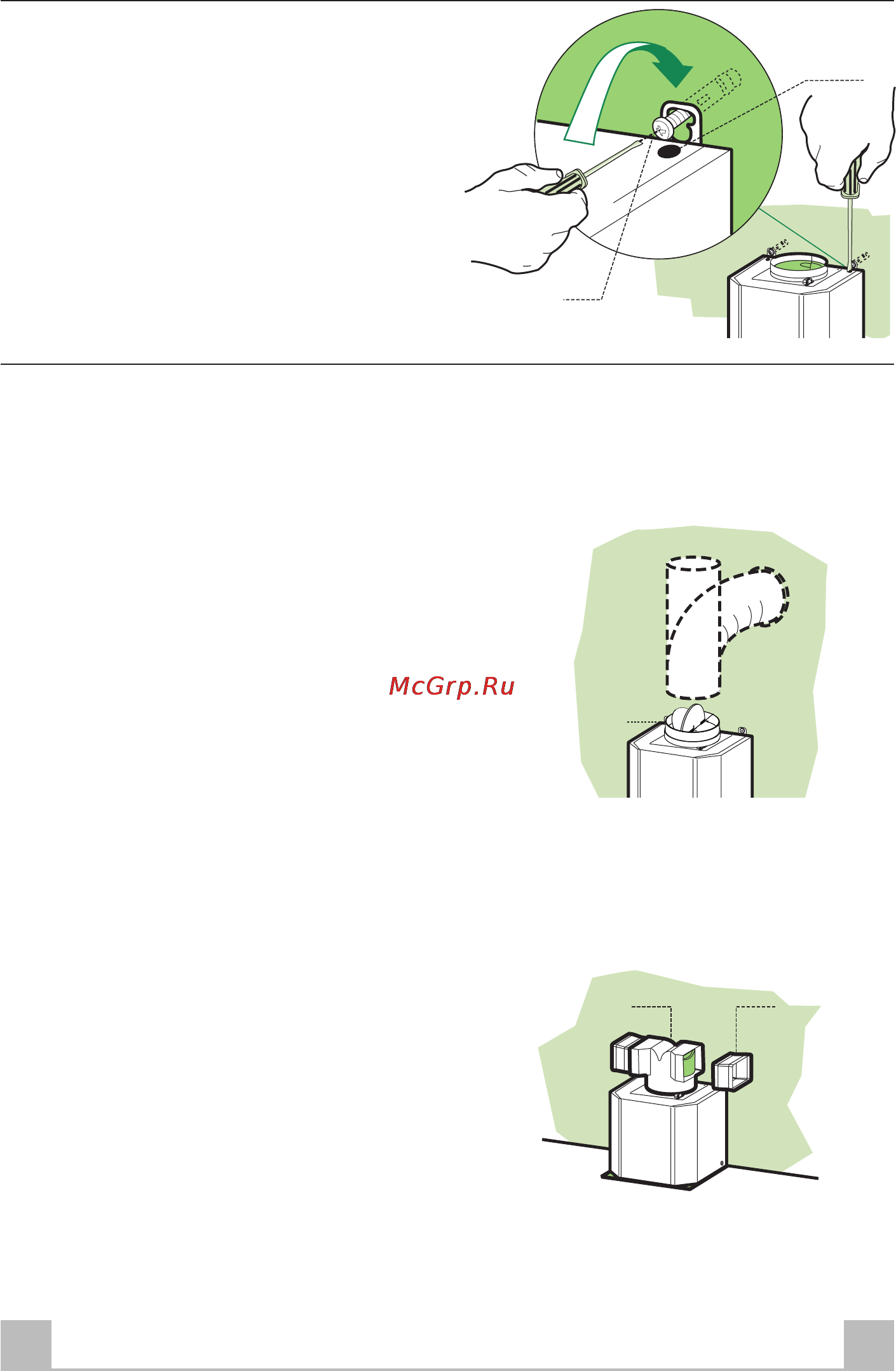

RECIRCULATION VERSION AIR OUTLET
• Push fit connection 15 onto the air outlet.
• Insert the connection extension pieces laterally
14.1 in connection 15.
• Make sure that the outlet of the extension pieces
14.1 is horizontally and vertically aligned with
the chimney outlets. If this is not the case,
adjust the position by either reversing the
connection extension pieces 14.1 or by pushing
connector 15 all the way in.
• Ensure that the activated charcoal filters have
been inserted.
Mounting the hood body
• Before attaching the hood body, tighten the two
screws Vr located on the hood body mounting
points.
• Hook the hood body onto the screws 12a
• Fully tighten support screws 12a
• Adjust screws Vr to level the hood body
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
In order to install the ducted version, connect the hood to the chimney using either a flexible or rigid
pipe ø 150 mm, the choice of which is left to the installer.
• Push fit Damper 10 onto the air outlet.
• Fix the pipe in position using sufficient pipe
clamps (not supplied).
• Remove any activated charcoal filters.
