Smeg KSEV97X [7/11] Flue assembly

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

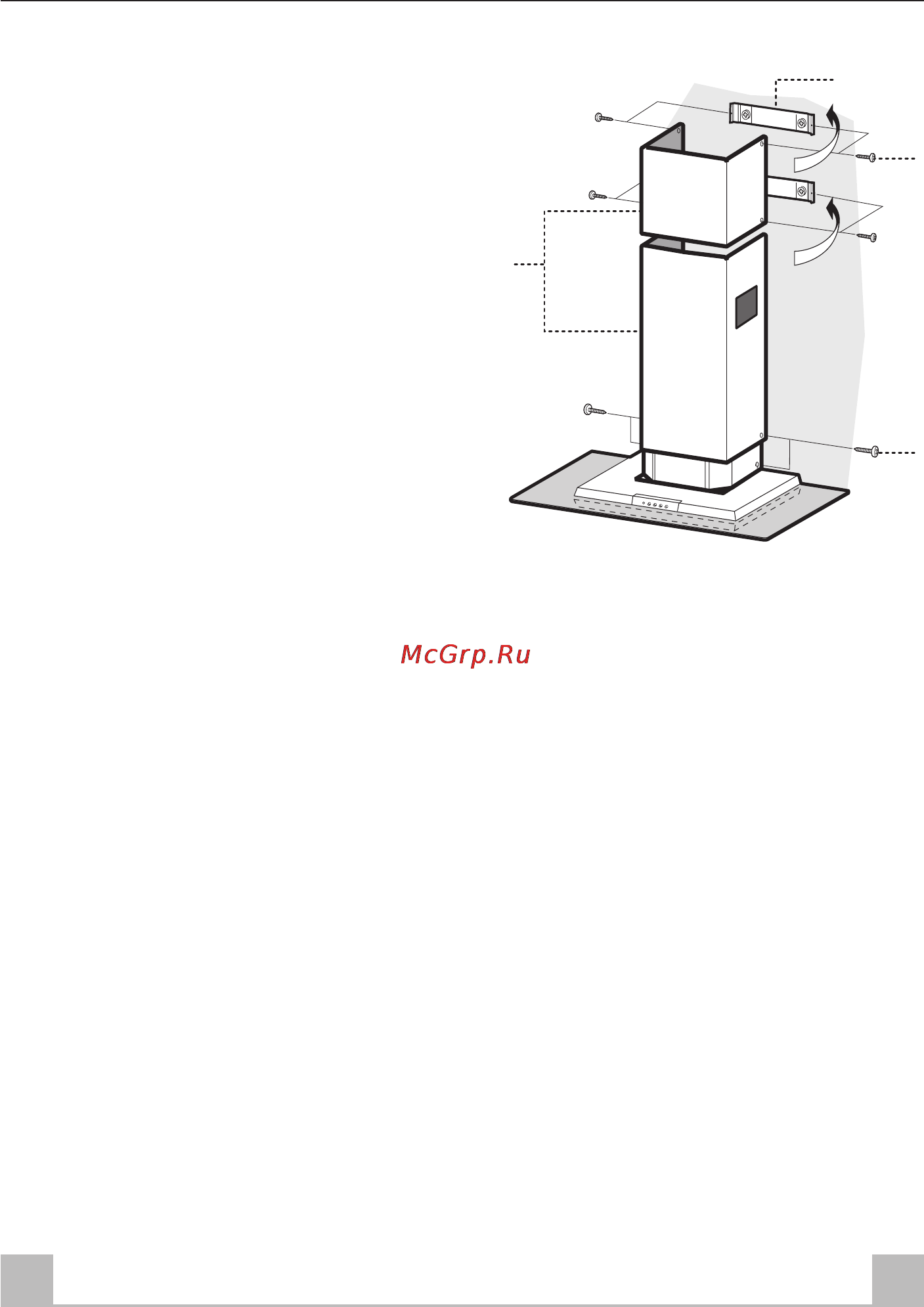

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue

and hook them behind the brackets 7.2.1,

making sure that they are well seated.

• Secure the sides to the brackets using the 4

screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

• Fix the lower part laterally to the hood body

using the 2 screws 12c (2,9 x 9,5) supplied.
