• The fixing hollows should have 61.8 cm between each other. At the same time they should

be situated at least 2 meters from the floor. In this case, the wall heater will be at 1.8 meter

from the floor level. Please, refer to the figure 2. The power connection should be built in at a

height unreachable for children.

• The depth of fixing hollows should be 42-45 mm, diameter – 8 mm.

• Insert the plugs into the hollows and install the screws. Refer to the fig. 4. The screw head

should be at 18-20 mm from the wall level.

• For installation of the wall heater you need the following details, sold with the heater: 2

plugs, 2 screws, 4 shock plates.

• Insert the shock plates with the small part into the holes of the body. Refer to fig. 3.

• If the power cord is too long, you may coil it inside the heater body.

• Once the heater is hanged, you should tighten the screws. Refer to the fig. 5.

IV. Appliance operation

• Observing polarity, insert the batteries into the remote control.

• When pressing a button on the remote control, you will hear tones.

• When pressing the buttons “ON/OFF, SWING” of the control panel or remote control,

you will hear tones again. The fan will be turned on. The leaf of the heater will open

automatically and a stream of air will flow from the appliance. At the same time the button

“FAN” of the control panel and “FAN” indicator will light with green color.

• Once pressing the button “HEATING” on the control panel or remote control, the first

heating mode (1 kW) is turned on. If you press the “HEATING” button for the second

time, the second heating mode (2.2 kW) will be turned on. The heating mode will be turned

off, if you press the “HEATING” button for the third time.

• Temperature setting. One press on the temperature setting button increases the

temperature on 1

С. The working temperature range is 18-30

С. If the set temperature is

С, and you press the temperature button, the obtained temperature will be 18

С.

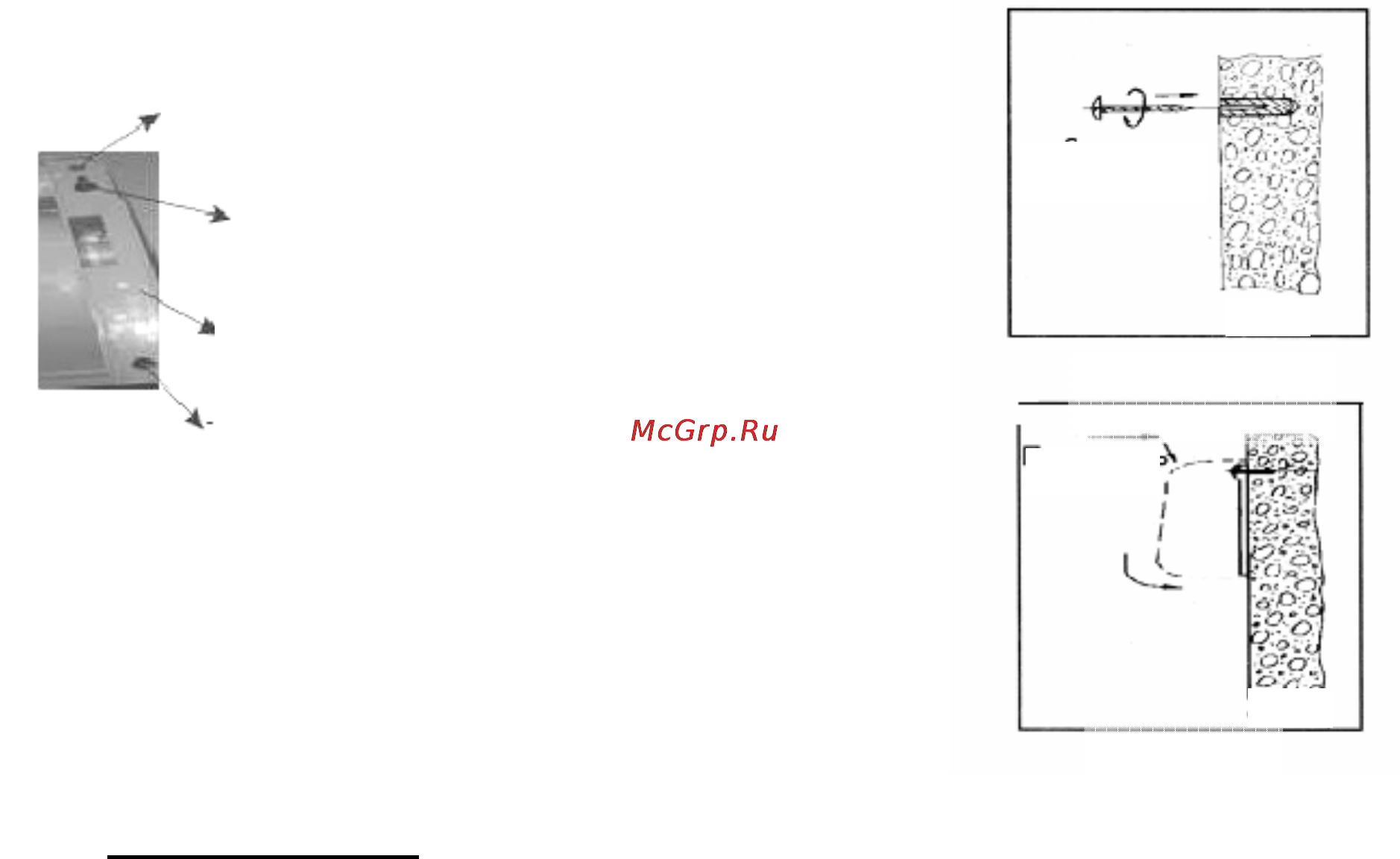

Holes of the shock plate

Body

Holes for the fastening to

the wall.

Fig. 3

Figure 4.

Figure 5

Hang up

Screw

wall
