Your VP-200xln XGA Line Amplifier / DA

Table 1: VP-200

XLN XGA Line Amplifier / DA Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 OUTPUT 2 HD15F Connector Connect to the computer graphics acceptor 2

3 OUTPUT 1 HD15F Connector Connect to the computer graphics acceptor 1

4 LEVEL Control Potentiometer Adjusts

the video signal level

5 EQ. Control Potentiometer Adjusts

the video EQ. (equalization) compensation

6 INPUT HD15F Connector Connect to the computer graphics source

7 ON LED Illuminates when receiving power

Figure 4 and Table 2 define the underside of the VP-200

XLN

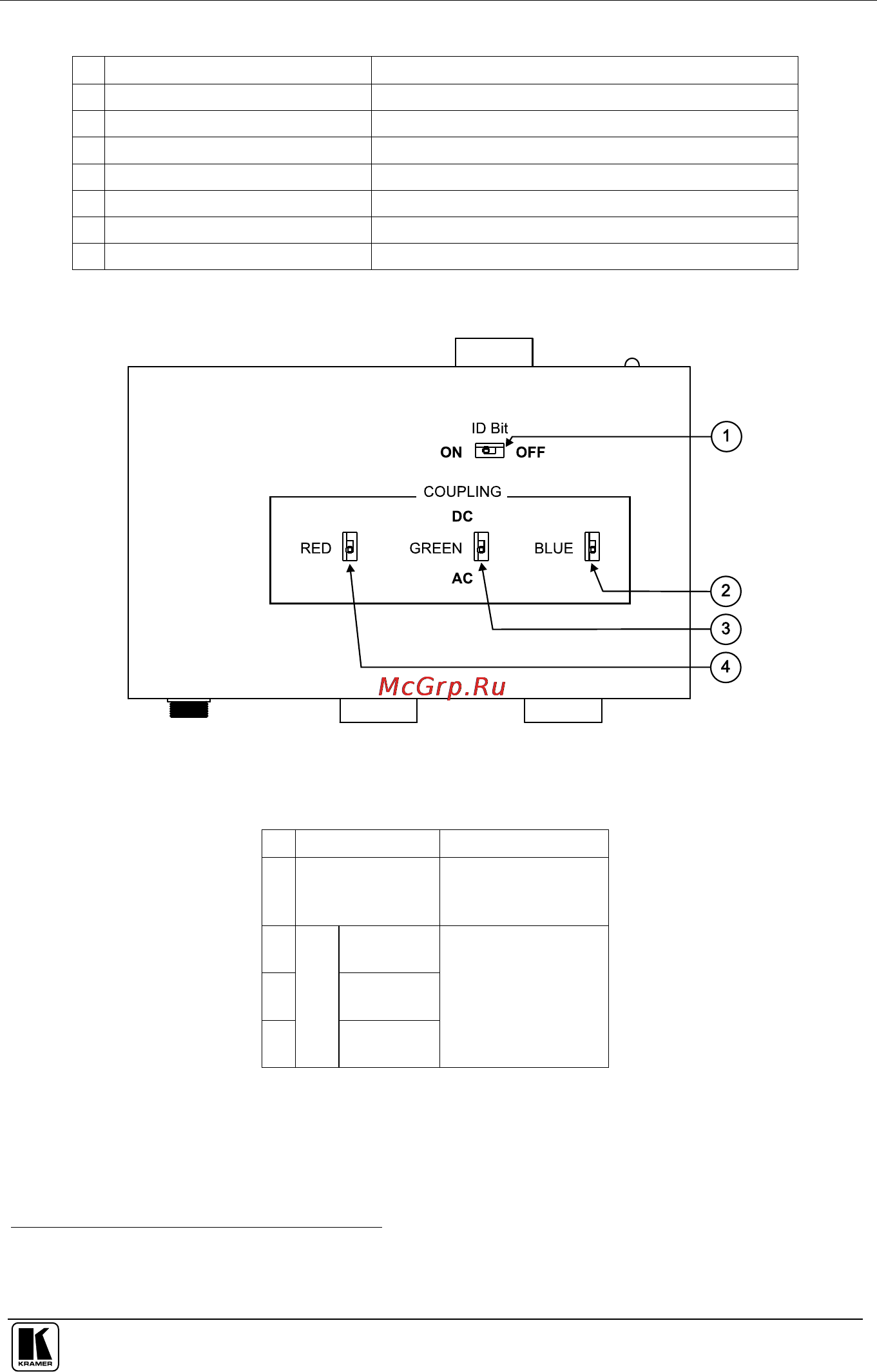

Figure 4: VP-200XLN XGA Line Amplifier / DA (Underside)

Table 2: VP-200XLN XGA Line Amplifier / DA (Underside) Features

# Feature Function

1 ID Bit Switch Slide to the left to

set to ON

; to the

right to set to OFF

2 BLUE

Switch

3 GREEN

Switch

COUPLING

RED

Switch

Slide up to set to

DC; down to set to

1 Use a screwdriver to rotate the potentiometer, adjusting the appropriate level

2 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
