Connecting the VM-1610 and VM-80A

7. Adjust the right and left audio levels by turning the CH1 and CH2 LEVEL

trimmers with a small screwdriver.

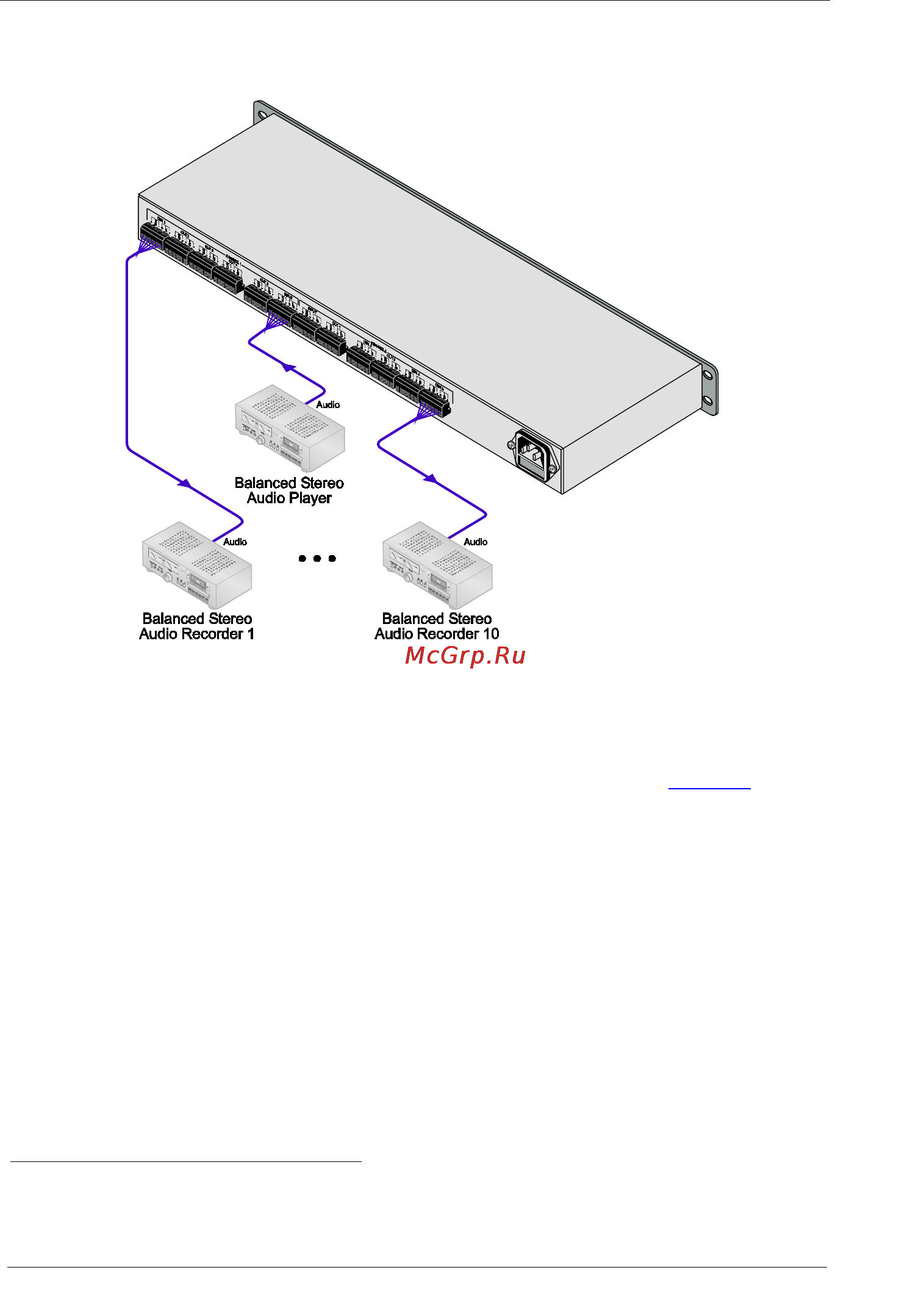

Figure 3: Connecting the VM-1610 in a 1:10 Configuration

6.2 Connecting the VM-80A Distribution Amplifier

To connect the VM-80A in a 1:8 configuration, as shown in

Figure 4, do the

following

1. Connect the input source (for example, a balanced stereo audio player) to

the CH 1 INPUT terminal block connector.

2. Connect the OUT terminal block connectors to up to 8 acceptors (for

example, balanced stereo audio recorders).

3. Press the 1:8 MODE button.

4. Switch on the VM-80A.

The audio input is distributed to the audio outputs.

Note: CH 2 INPUT cannot be distributed to all 8 outputs, only the CH

1 INPUT can.

1 Switch OFF the power on each device before connecting it to your VM-80A. After connecting your VM-80A, switch on its

power and then switch on the power on each device
