VM-3HN - Connecting the VM-3HN

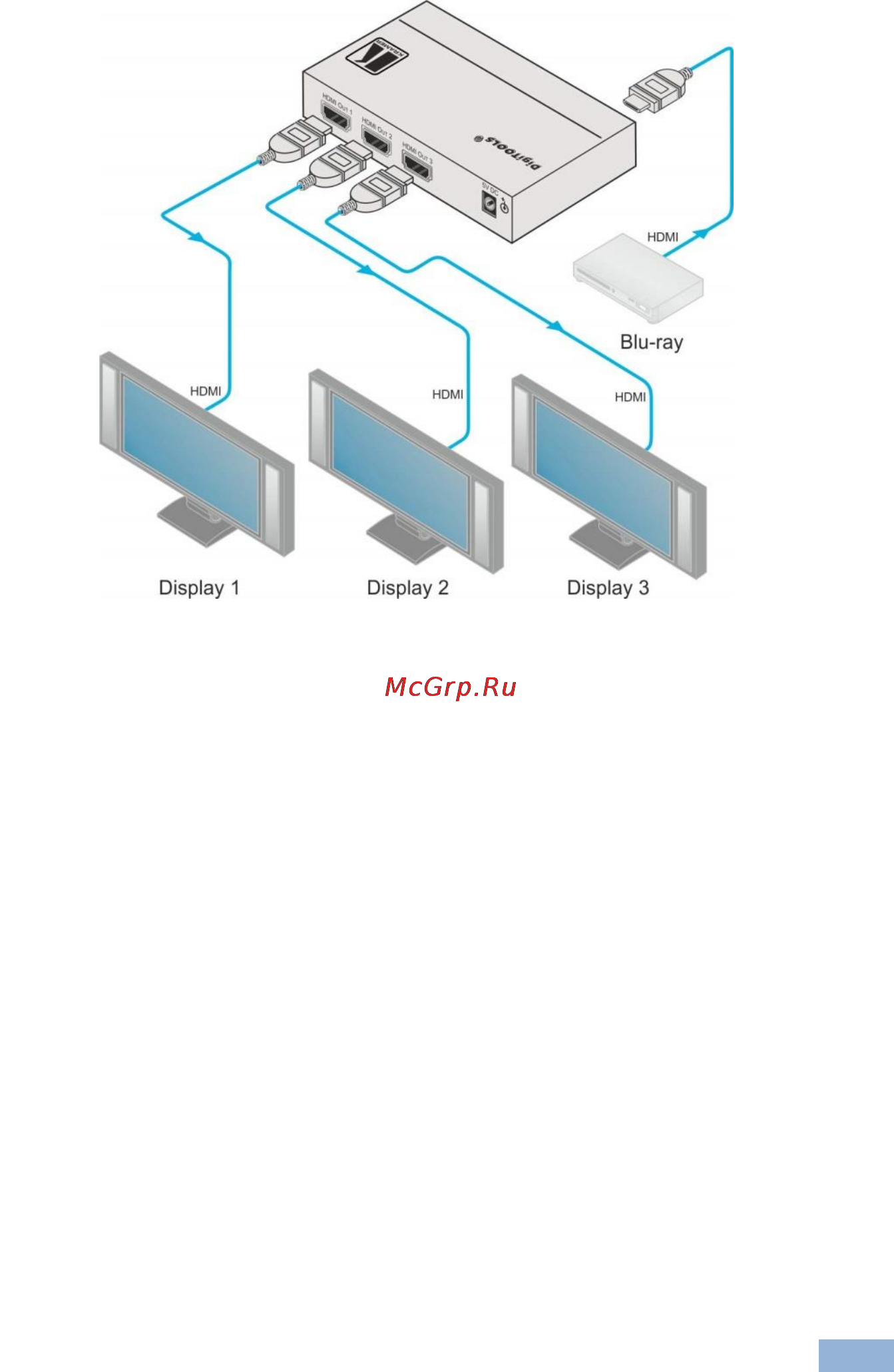

Figure 2: Connecting the VM-3HN 1:3 HDMI DA

4.1 Acquiring an EDID

To acquire an EDID, press the EDID SETUP button as follows:

1. The first press of the EDID SETUP button displays the present EDID status

similar to that shown in the next step.

2. The second press of EDID SETUP enters the read mode and each

additional press cycles through the source options:

OUT 1 -> OUT 2 -> OUT 3 -> all LEDS flash slowly for auto-mix -> all LEDs

flash quickly for a default EDID.

3. When the desired EDID source is reached, release the EDID SETUP button.

The VM-3HN reads the EDID for a few seconds. When finished, all LEDS

return to display the present output connection status.

If an unconnected output is chosen or the EDID cannot be read, the VM-3HN loads the

default EDID.
