Your VP-32K 3x1 PC / Audio Switcher

4 Your VP-32K 3x1 PC / Audio Switcher

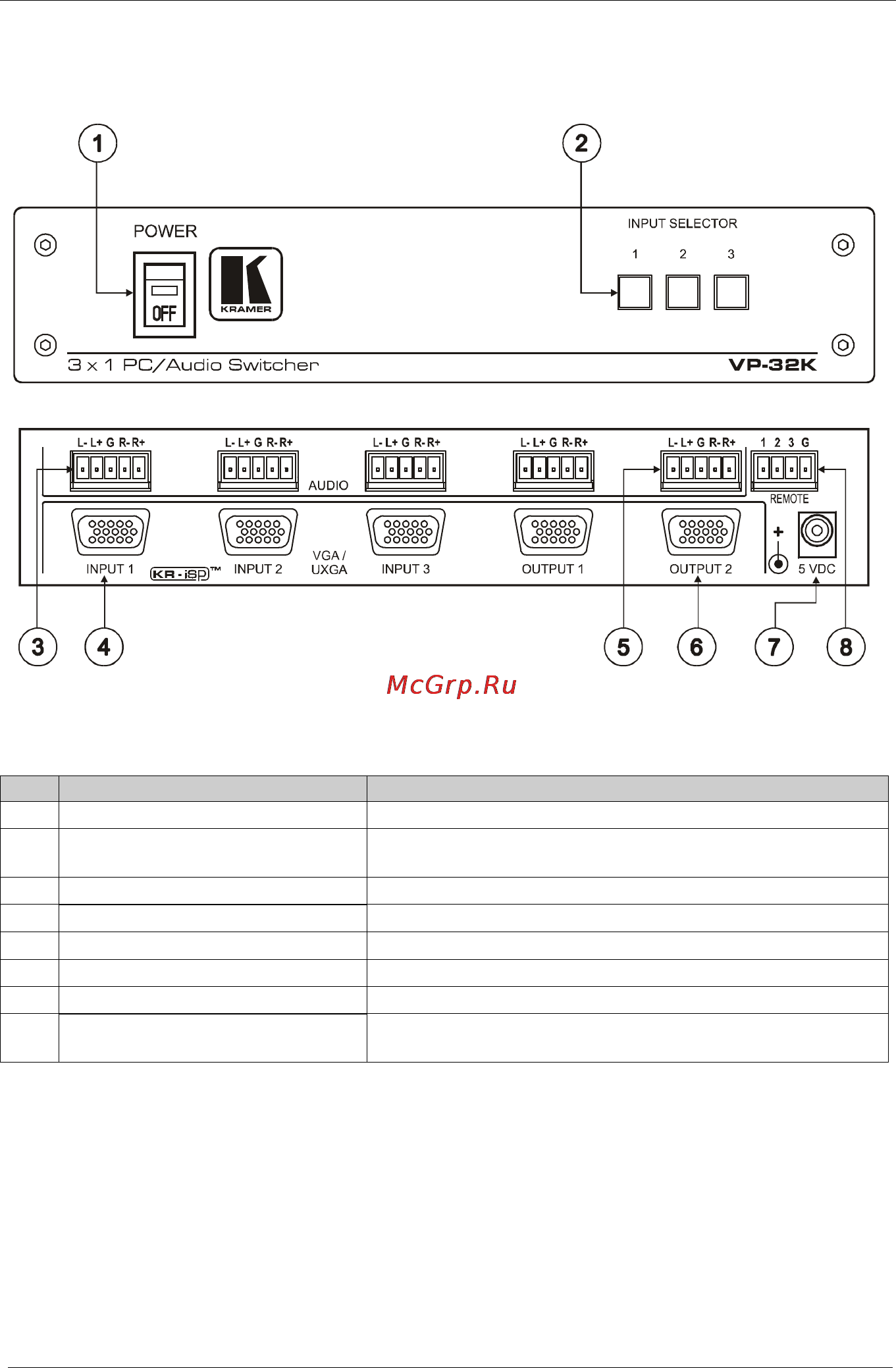

Figure 1 and Table 1 define the VP-32K 3x1 PC / Audio Switcher:

Figure 1: VP-32K 3x1 PC / Audio Switcher

Table 1: Front Panel VP-32K 3x1 PC / Audio Switcher Features

# Feature Function

1 POWER Switch Illuminated switch supplying power to the unit

2 INPUT SELECTOR Buttons Select the input (from 1 to 3) to switch to the outputs. The

selected button illuminates

3 INPUT Terminal Block Connector Connect to the balanced stereo audio sources (from 1 to 3)

4 INPUT 15-pin HD Connectors Connect to the VGA/UXGA sources (from 1 to 3)

5 OUTPUT Terminal Block Connector

Connect to the balanced stereo audio acceptors (from 1 to 2)

6 OUTPUT 15-pin HD Connectors Connect to the VGA/UXGA acceptors (from 1 to 2)

7 5V DC +5V DC connector for powering the unit

8 REMOTE Terminal Block

Connector

Connect to contact closure switches (see section 5.2)
