Kramer VP-31KSi [10/48] Figure 2 and table 2 define the rear panel of the vp 31ksi 3x1 uxga audio step in switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the VP-31KSi 3x1 UXGA/Audio STEP-IN Switcher

Feature

Function

6 VIDEO Button Press to execute video related actions.

The button lights when the video mode is operational.

When both the Audio and Video buttons light, the device is in audio follow video mode

AUDIO GAIN Buttons

+ Press to increase the audio output level of the selected input

–

Press to decrease the audio output level of the selected input

Figure 2 and Table 2 define the rear panel of the VP-31KSi 3x1 UXGA/Audio STEP-IN Switcher.

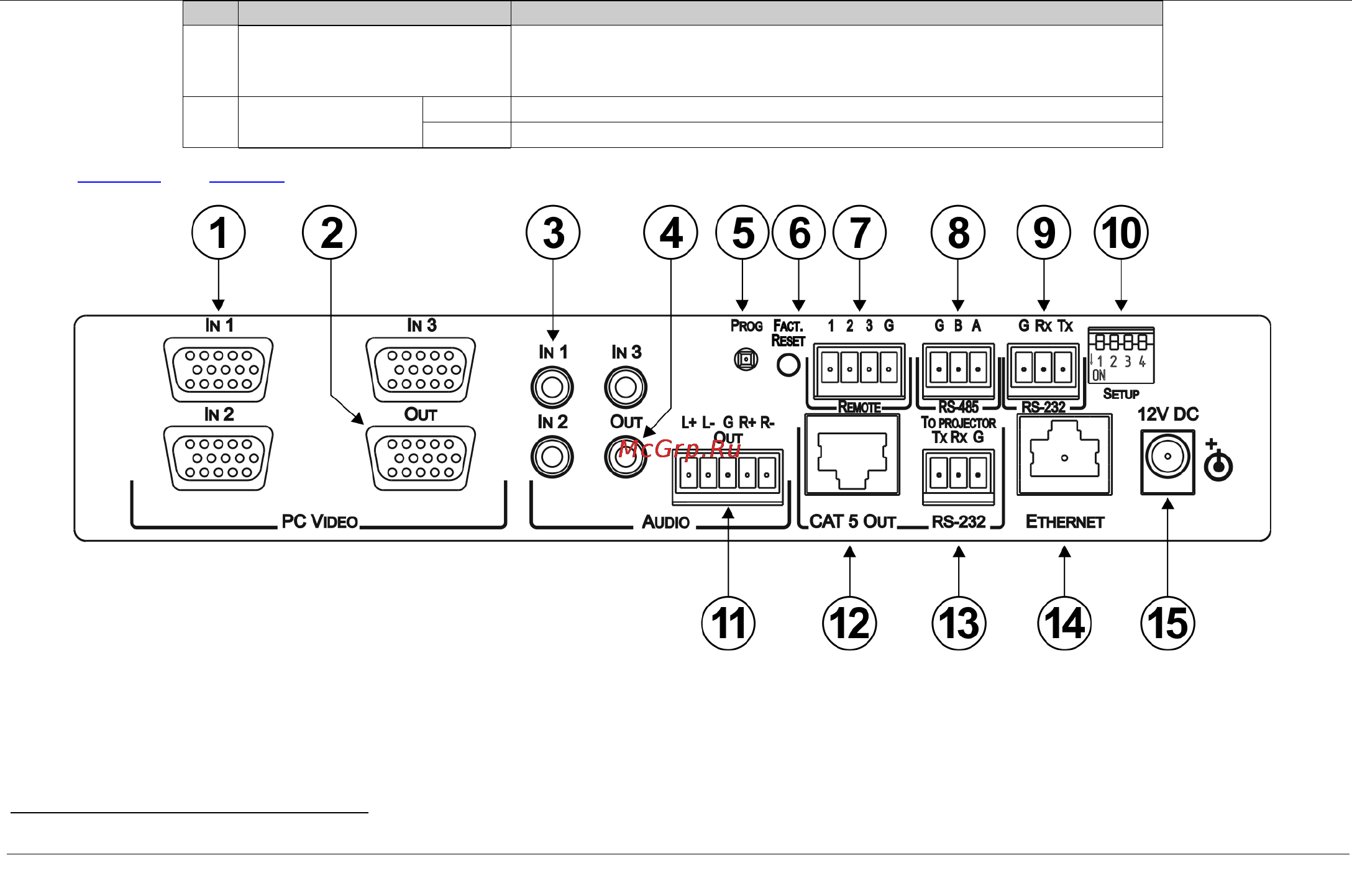

Figure 2: VP-31KSi 3x1 UXGA/Audio STEP-IN Switcher Rear Panel

1 While the AUDIO button is lit
