Kramer VP-31KSi [12/48] Using the ir transmitter for the vp 31ksi

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the VP-31KSi 3x1 UXGA/Audio STEP-IN Switcher

4.1 Using the IR Transmitter for the VP-31KSi

You can use the RC-IR3 IR transmitter to operate the machine via the built-in IR

receiver on the front panel.

5 Connecting the VP-31KSi 3x1 UXGA/Audio STEP-IN Switcher

Always switch off the power to each device before connecting it to your

VP-31KSi. After connecting your VP-31KSi, connect its power and then

switch on the power to each device.

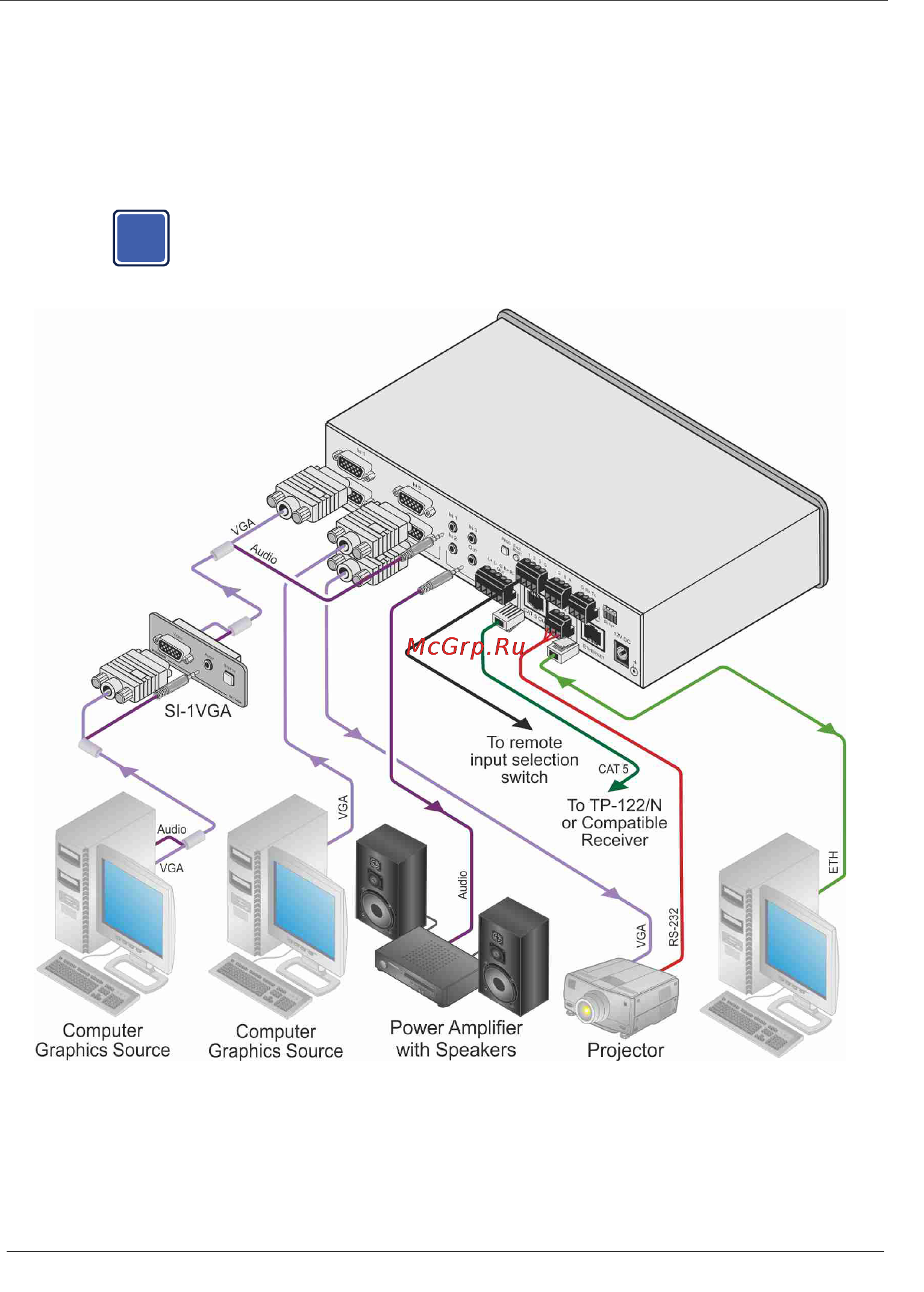

Figure 3: Connecting the VP-31KSi
