VS-12DPIR - Overview 5

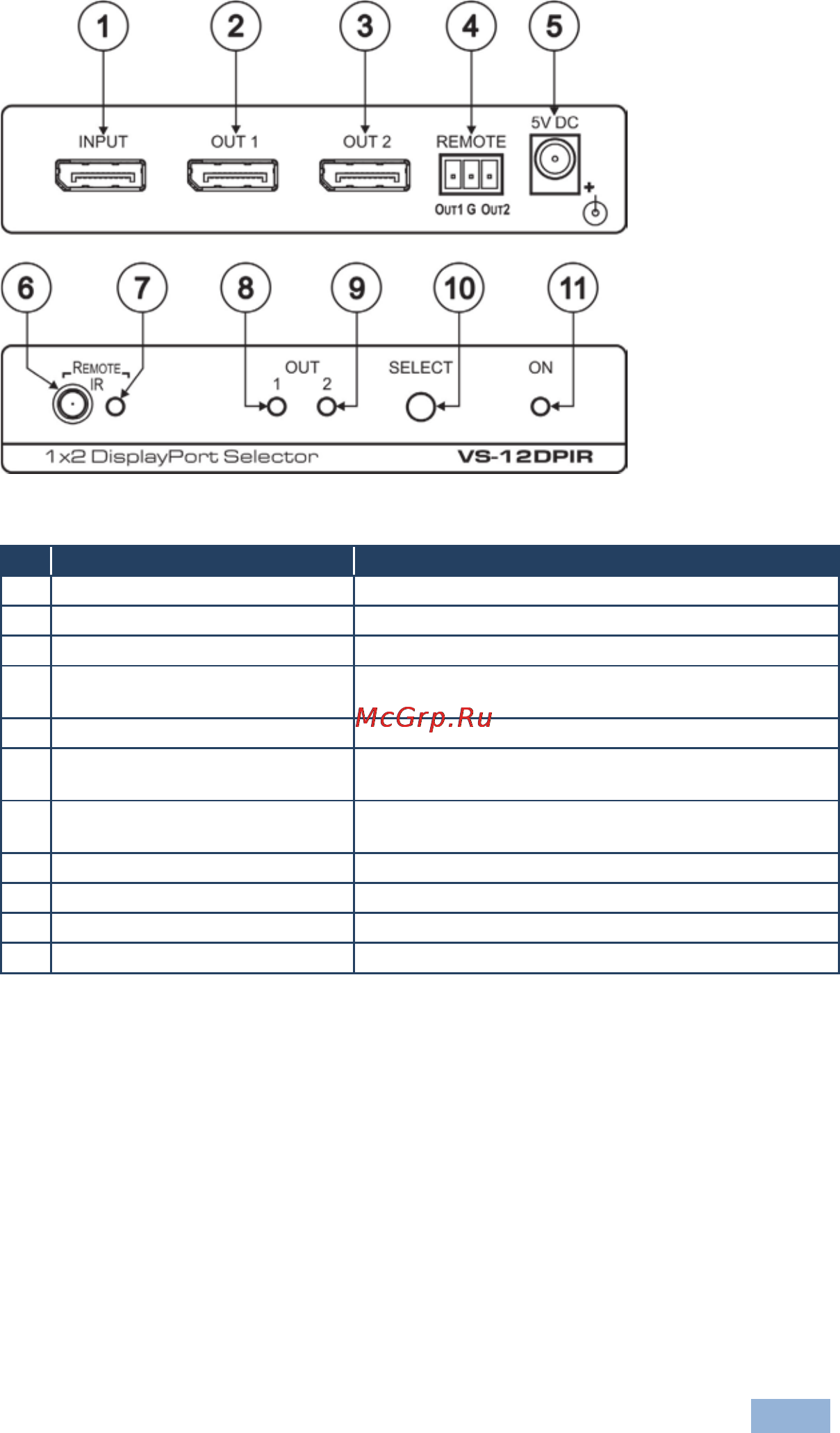

Figure 1: VS-12DPIR 1x2 DisplayPort Selector

# Feature Function

1 INPUT DisplayPort Connector Connects to the DP source

2 OUT 1 DisplayPort Connector Connects to the DP acceptor 1

3 OUT 2 DisplayPort Connector Connects to the DP acceptor 2

4 REMOTE Terminal Block

Connectors

Connect to a contact closure switch

5 5V DC +5V DC connector for powering the unit

6 REMOTE IR Receiver Window Receives signals from the infrared remote control

transmitter

7 REMOTE IR LED The red LED lights when receiving signals from the

infrared remote control transmitter

8 OUT 1 LED Illuminates when output 1 is selected

9 OUT 2 LED Illuminates when output 2 is selected

10 SELECT Button Press to select the active output

11 ON LED Illuminates when receiving power
