6 VS-12DPIR - Connecting the VS-12DPIR

4 Connecting the VS-12DPIR

Always switch off the power to each device before connecting it to your

VS-12DPIR. After connecting your VS-12DPIR, connect its power and

then switch on the power to each device.

To connect the VS-12DPIR, as the example in

Figure 2 shows, do the following:

1. Connect the DP source (for example, a PC with a DP output) to the INPUT

DP connector.

2. Connect the DP OUT connectors to up to two acceptors, as follows:

 DP OUT 1 connector to a display

 DP OUT 2 connector to a display

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not illustrated in

Figure 2).

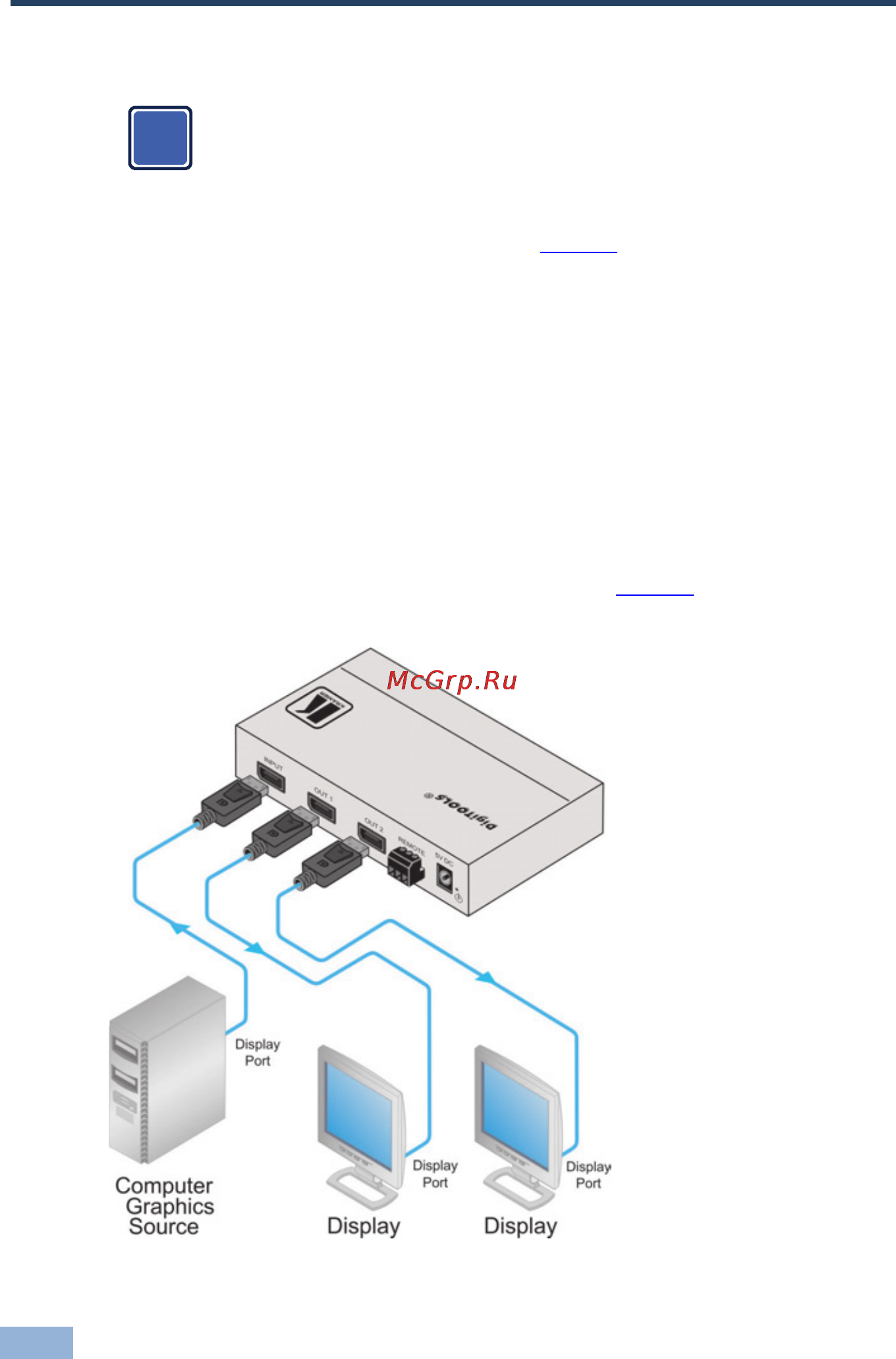

Figure 2: Connecting the VS-12DPIR 1x2 DisplayPort Selector
