VS-21DPIR - Overview 5

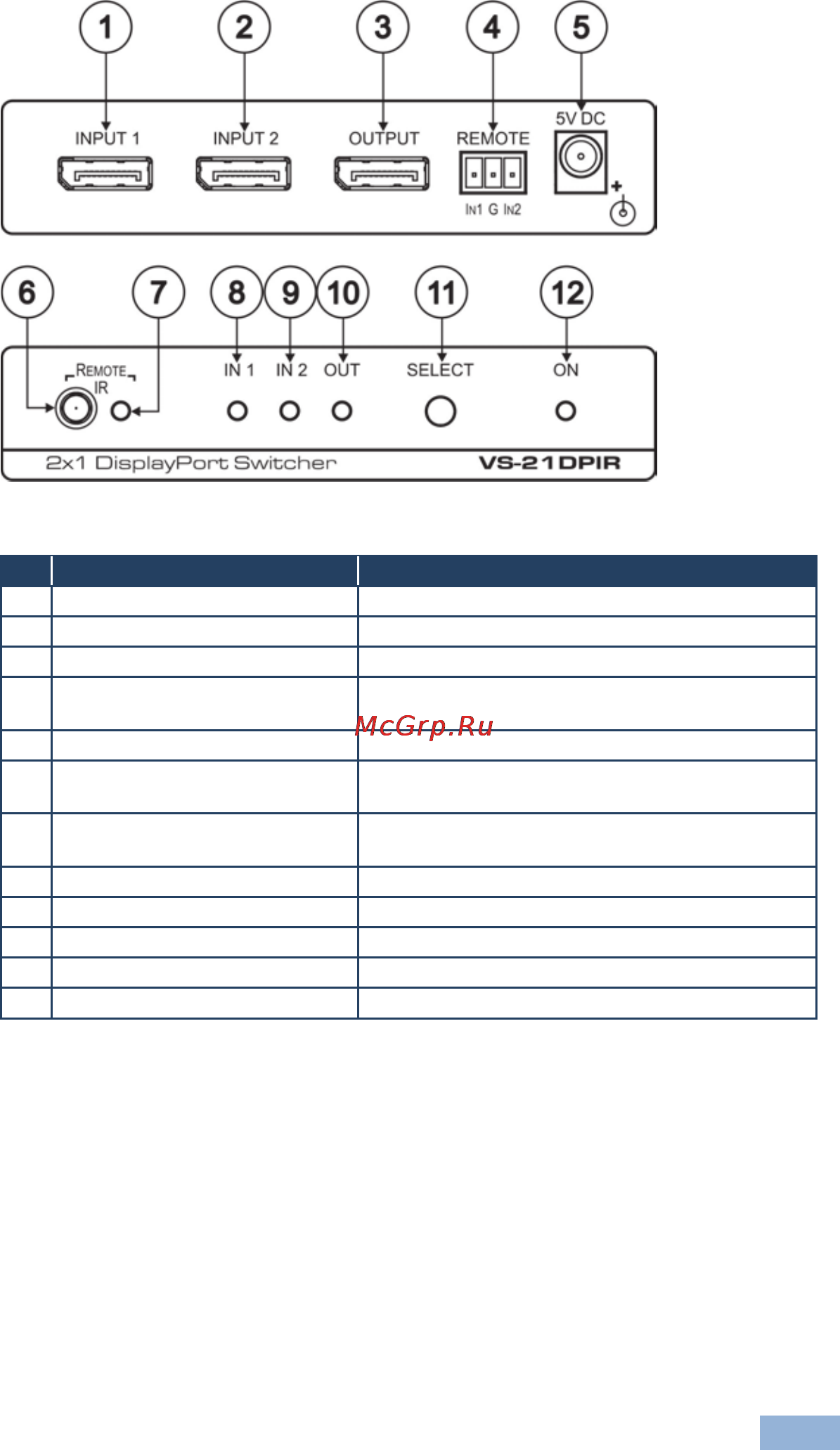

Figure 1: VS-21DPIR 2x1 DisplayPort Switcher

# Feature Function

1 INPUT1 DisplayPort Connector Connects to the DP source 1

2 INPUT2 DisplayPort Connector Connects to the DP source 2

3 OUTPUT DisplayPort Connector Connects to the DP acceptor

4 REMOTE Terminal Block

Connectors

Connect to a contact closure switch (see section

4.1)

5 5V DC +5V DC connector for powering the unit

6 REMOTE IR Receiver Window Receives signals from the infrared remote control

transmitter

7 REMOTE IR LED The red LED lights when receiving signals from the

infrared remote control transmitter

8 IN 1 LED Illuminates when input 1 is selected

9 IN 2 LED Illuminates when input 2 is selected

10 OUT LED Illuminates when the output is active

11 SELECT Button Toggles between IN 1 and IN 2

12 ON LED Illuminates when receiving power
