6 VS-21DPIR - Connecting the VS-21DPIR

4 Connecting the VS-21DPIR

Always switch off the power to each device before connecting it to your

VS-21DPIR. After connecting your VS-21DPIR, connect its power and

then switch on the power to each device.

To connect the VS-21DPIR, as the example in

Figure 2 shows, do the following:

1. Connect up to two computer graphics sources to INPUT 1 and INPUT 2.

2. Connect the OUTPUT connector to the DisplayPort acceptor (for example, a

display), using the Kramer DisplayPort cable.

You can connect the DP output to an HDMI acceptor by using an appropriate adapter

and setting the DIP-switches.

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not illustrated in

Figure 2).

4. Press the SELECT button to choose which DP input to route to the output.

The SELECT button toggles between INPUT 1 and INPUT 2, lighting the

IN 1 LED when INPUT 1 is selected, or the IN 2 LED when IN 2 is selected.

Alternatively you can press key 1 or 2 on the remote transmitter, once setup (see

section 4.1), or use the contact closure remote control pins (see Section

4.1).

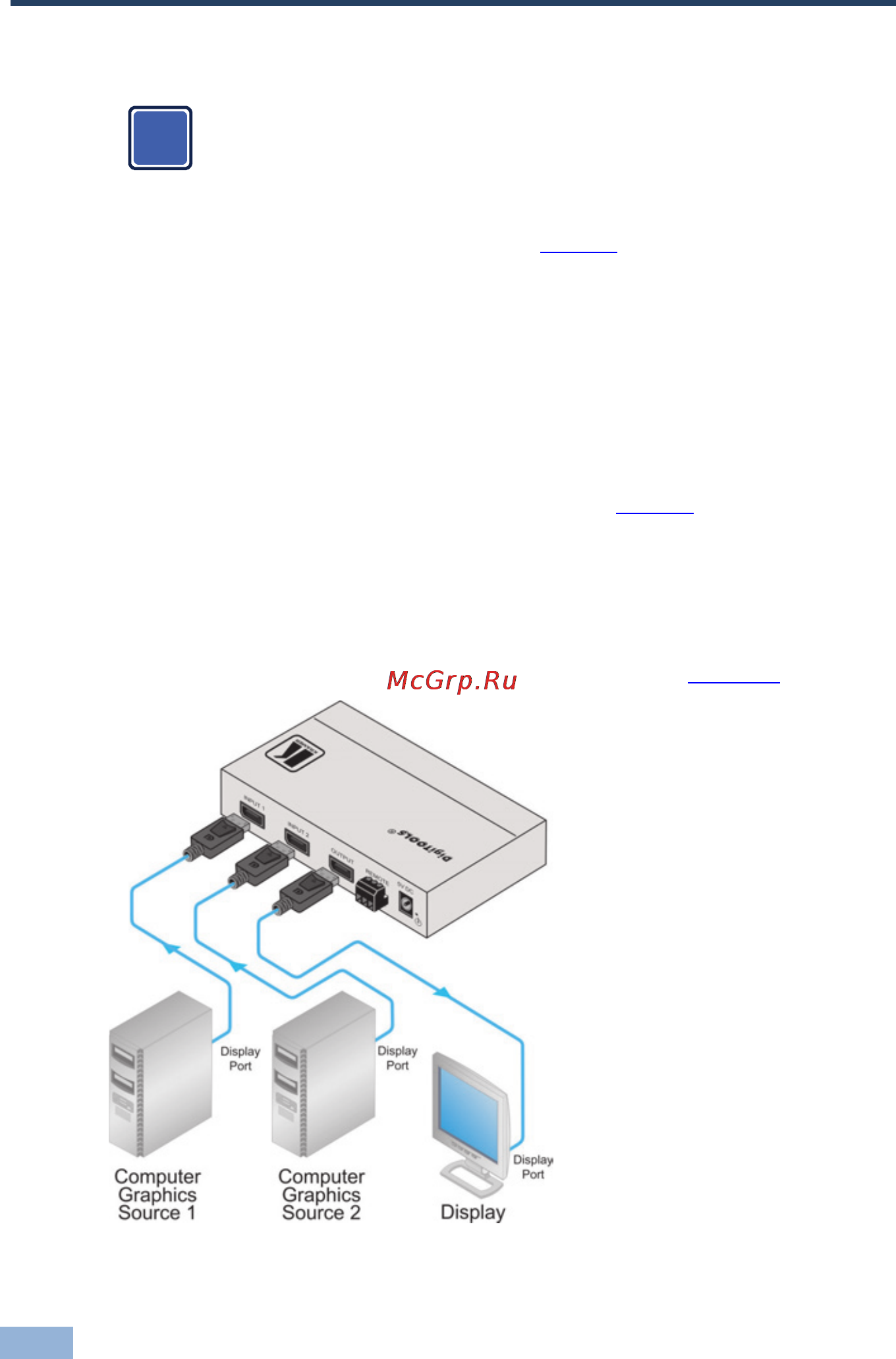

Figure 2: Connecting the VS-21DPIR 2x1 DisplayPort Switcher
