Defining the 6241HDxl 4x1 3G HD-SDI Switcher

4 Defining the 6241HDxl 4x1 3G HD-SDI Switcher

Figure 1 and Table 1 define the unit.

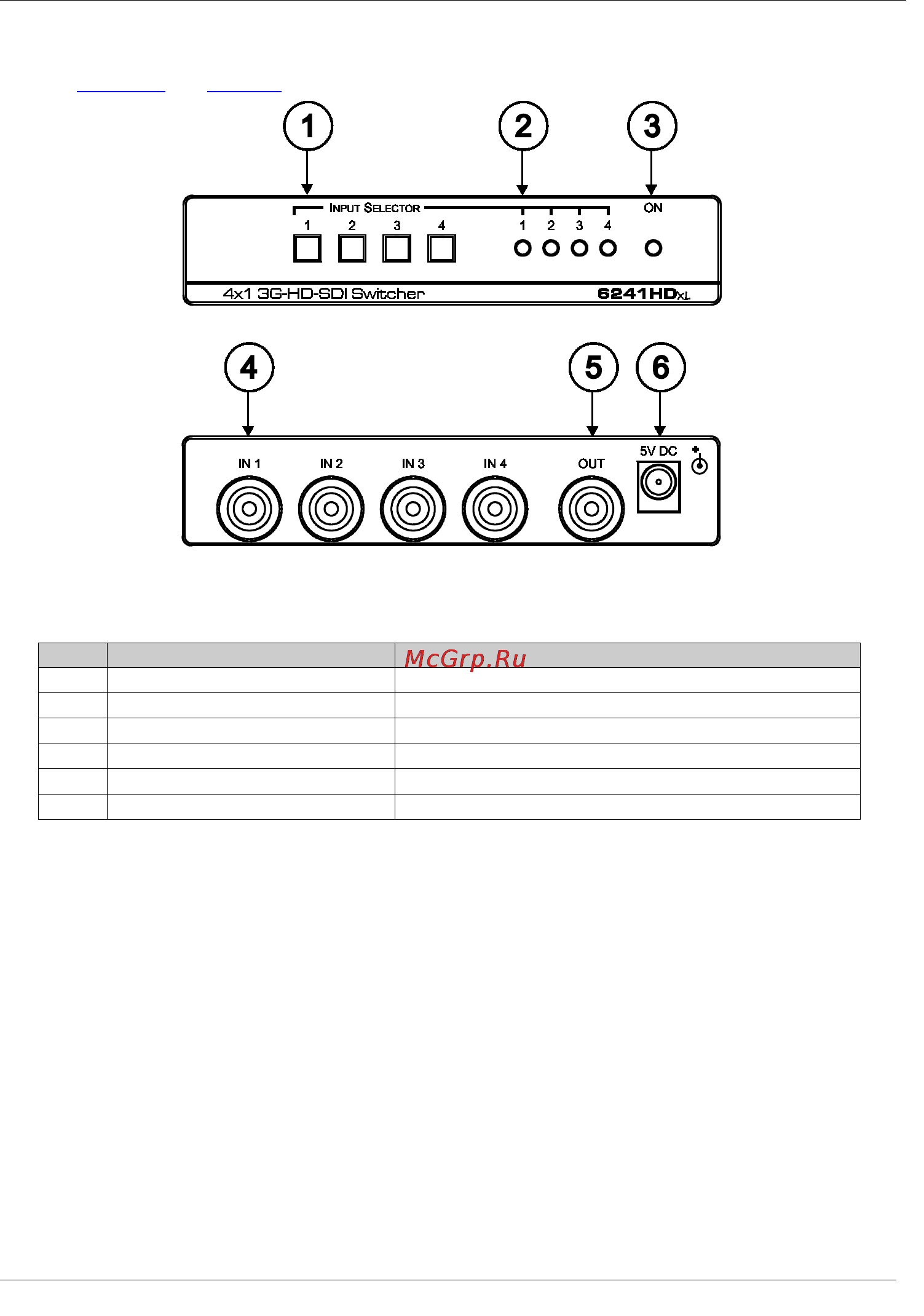

Figure 1: 6241HDxl 4x1 3G HD-SDI Switcher Front and Rear Panels

Table 1: 6241HDxl 4x1 3G HD-SDI Switcher Front and Rear Panel Functions

Feature

Function

1 INPUT SELECTOR Buttons Select the serial digital video source (from 1 to 4)

2 INPUT SELECTOR LEDs Lights for the selected input (from 1 to 4)

3 ON LED Lights when receiving power

4 INPUT BNC Connectors Connect to the serial digital video sources (75Ω) (1 to 4)

5 OUT BNC Connector Connect to the serial digital video acceptor (75Ω)

6 5V DC Connect to the power adapter, center pin positive
