11
Secure DisplayPort KVM Switch User Manual

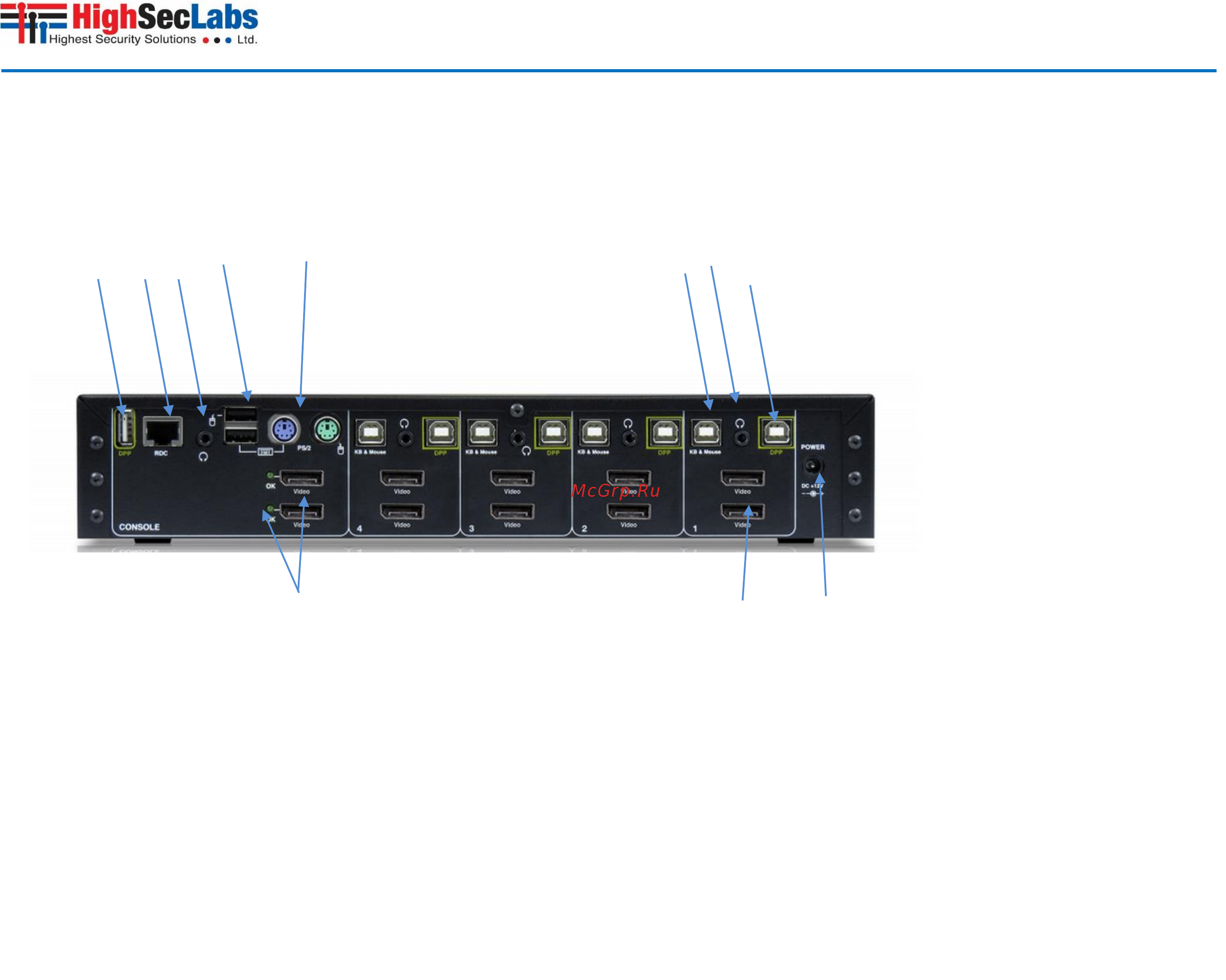

Rear Panel Features –K524E
Console Area
1 - DPP (Dedicated Peripheral Port) console USB jack
2 - RDC remote control port RJ-45 (for future use)
3 – Audio console output 3.5 mm stereo jack
4 - USB Keyboard & Mouse jacks
5 – PS/2 Keyboard & Mouse jacks (Mini-DIN)
6 – Console 2 X DP input jacks & diagnostic LEDs
1
2
3
4
5
6
Computer Area
7 - Computer USB Keyboard & Mouse jack
8 - Computer audio input jack 3.5mm stereo
9 - Computer DPP USB jack
10 - Computer 2 X DP video input jacks
General
11 - DC Power input jack – barrel type
7
8
9
10
11
