8 RC-52A - Connecting the RC-52A Room Controller

4.3 Connecting the IR-OUT

Figure 6 shows how to connect the Kramer IR emitter (3.5mm to IR Emitter Control

Cable, P/N: C-A35/IRE-10). The white striped side connects to IR OUT, the black

side connects to the Ground, and the LED Emitter Shell is affixed to the IR sensor

window with the adhesive layer.

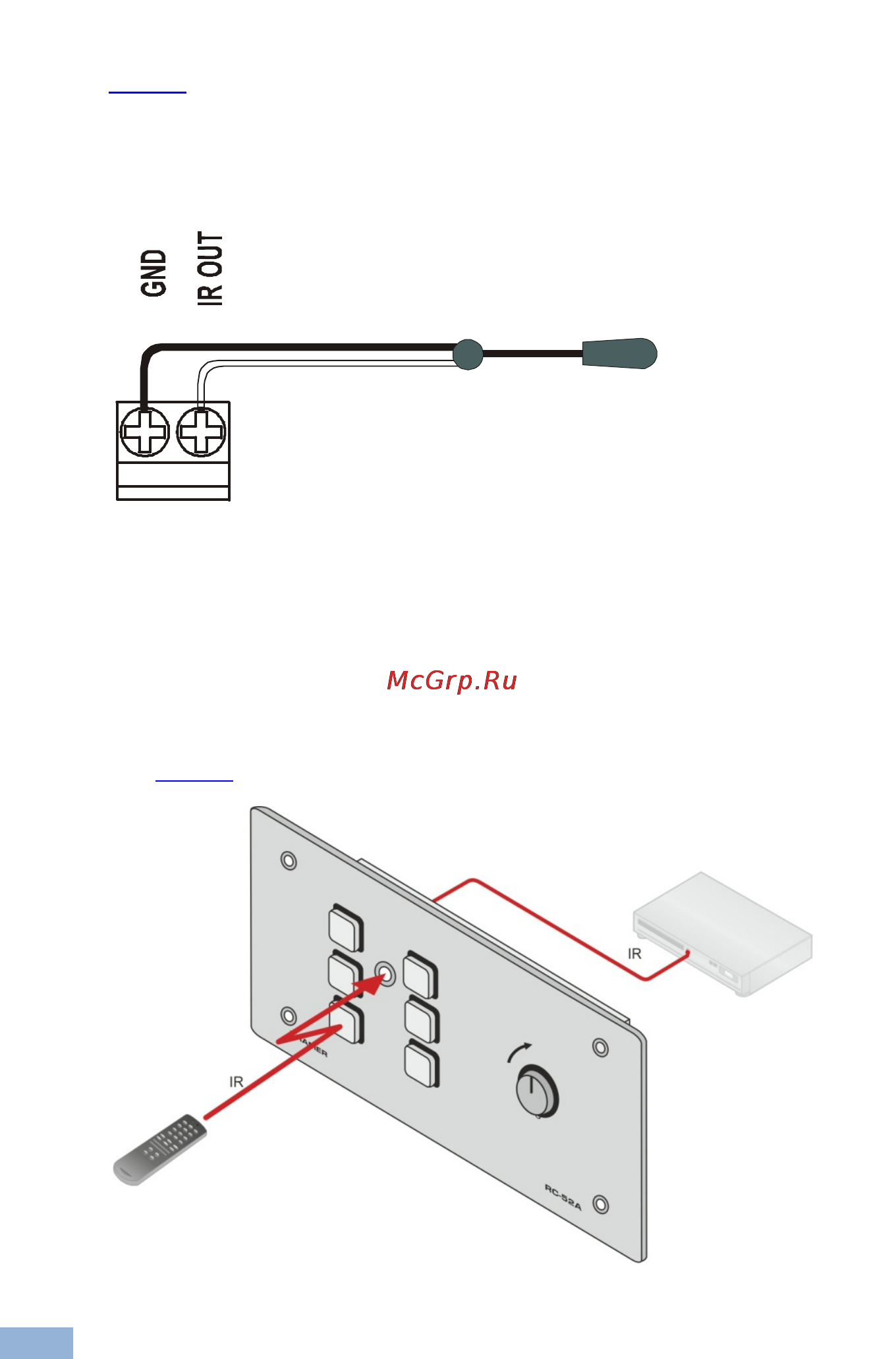

Figure 6: IR Emitter Wiring

4.4 Using the RC-52A as an IR Repeater

Once the RC-52A is mounted and powered, and the IR emitter is connected to a

piece of A/V equipment (for example, a DVD), you can use it as an IR signal

repeater, to extend the IR signal to that machine, which has no direct line-of-sight

(see

Figure 7).

Figure 7: IR Repeater Operation
