RC-76R/RC-78R - Connecting the RC-76R/RC-78R

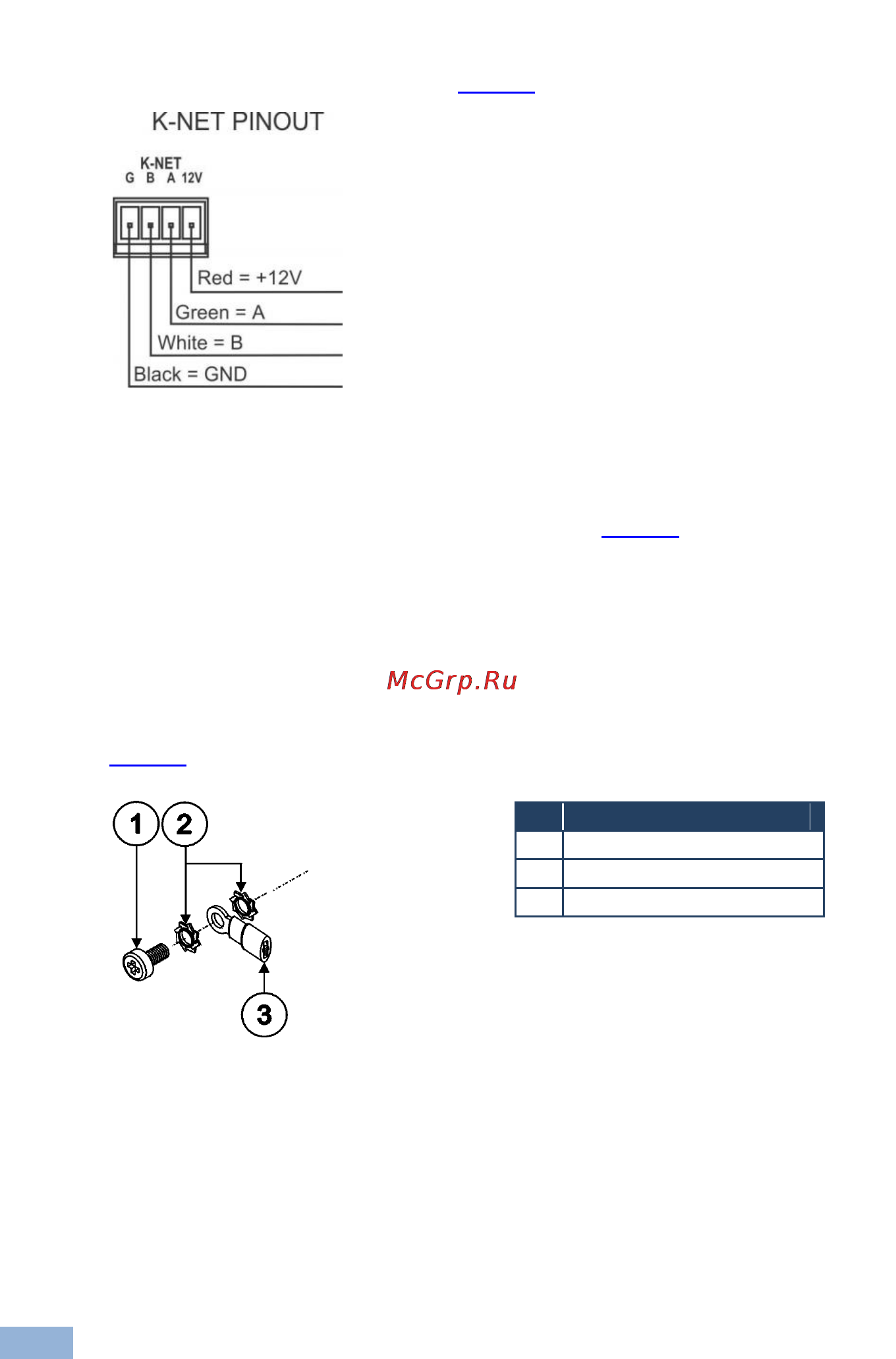

4.4 Connecting the K-NET Port

The K-NET port is wired as shown in Figure 3.

Figure 3: K-NET PINOUT Connection

If your device is the first or last device on the line, slide the K-Net termination

switch up otherwise make sure it is set to down (see Figure 1).

4.5 Grounding the RC-76R/RC-78R

The grounding screw is used to earth the chassis of the unit to the building ground

preventing static electricity from impacting the performance of the unit.

Figure 4 defines the grounding screw components.

Figure 4: Grounding Connection Components

Component Description

M3X6 screw

1/8" Toothed Lock Washer

M3 Ring Tongue Terminal
