RC-76M/ RC-712M - Installing the RC-76M/RC-712M

5. Insert the labels, as required, inside the button caps while holding the button

cap “wings” to the sides, as shown in Figure 9.

Figure 9: Button Cap Orientation with Label

6. Retaining this orientation, place each button cap, with the label to its correct

button (see Figure 10).

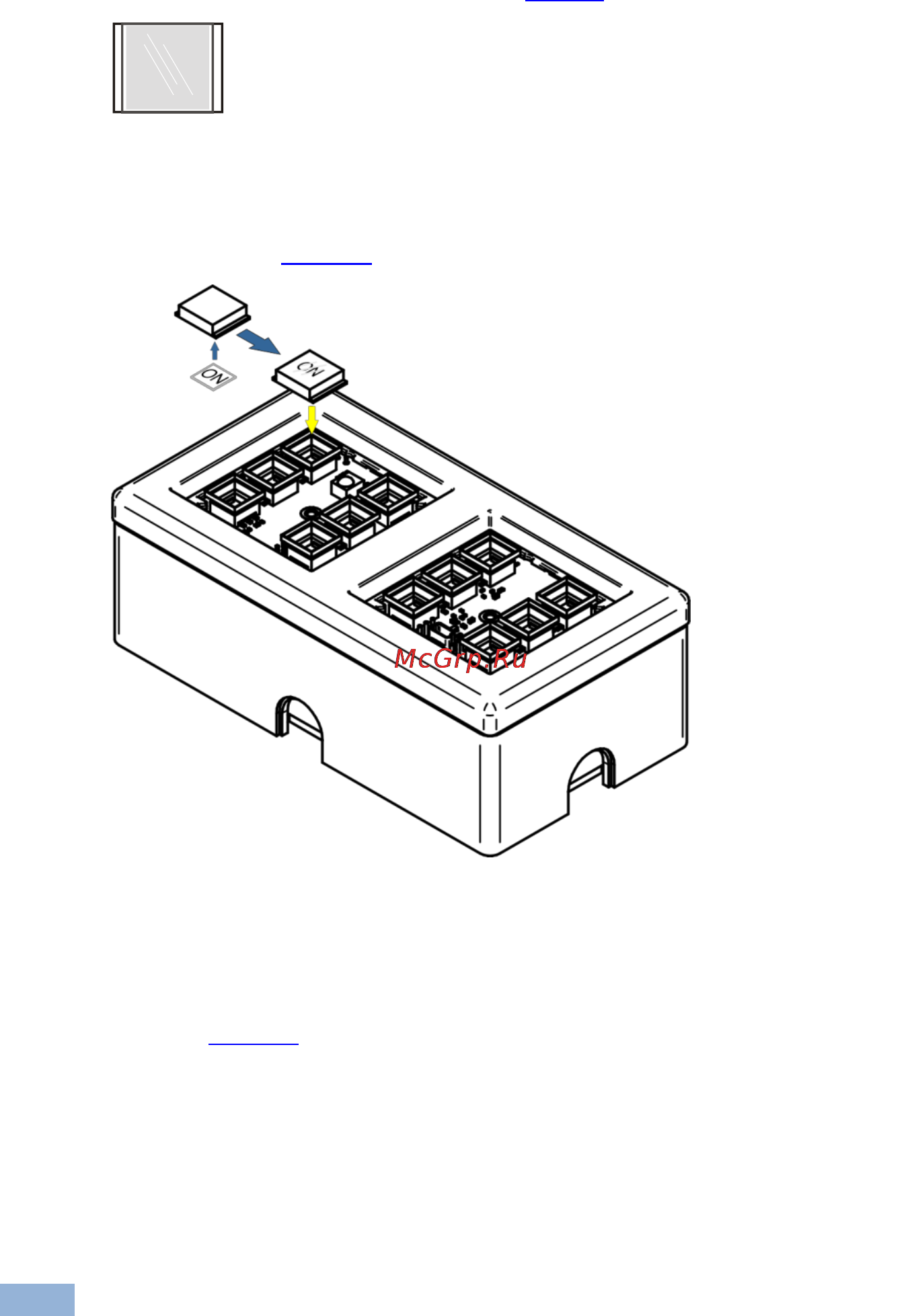

Figure 10: Placing the Button Caps and Mounting the Device

7. Place the faceplates over the frame while fitting the buttons in (for the

RC-76M you need to attach one button faceplate and one blank faceplate),

see Figure 11.
