Kramer RC-712M [8/25] Defining the rc 76m rc 712m room controllers

RC-76M/ RC-712M - Overview

3.1 Defining the RC-76M/RC-712M Room Controllers

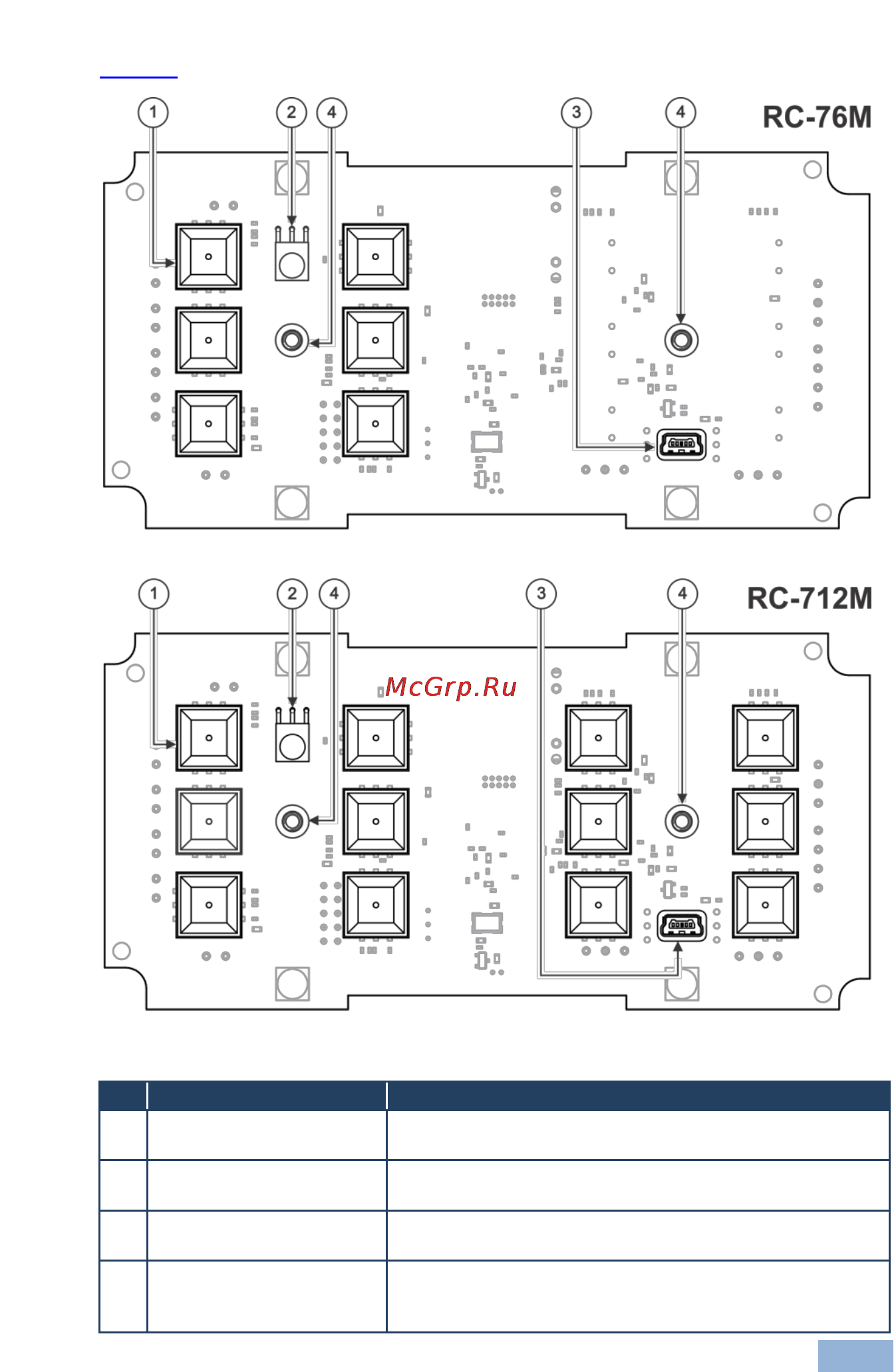

Figure 1 defines the front panel of the RC-76M/RC-712M:

Figure 1: RC-76M/RC-712M Room Controller – Front Panel

Feature

Function

6/12 Configurable Buttons

Button function is programmed by the K-Config

Configuration software

IR In Built-in IR Receiver

Use to learn the IR commands from a machine’s remote

control transmitter

USB Connector

Connect to a computer for firmware upgrade or for

uploading the configuration file

Button Cover Plate

Mounting Screw holes (2)

To secure the faceplates and frame to the Merten

compatible housing. Remove to access the USB ports

and IR learner.
