Installing the RC-53D Faceplate, Button Caps and Labels
8
5. Retaining the orientation, place the six button caps on the buttons of the
RC-53D.

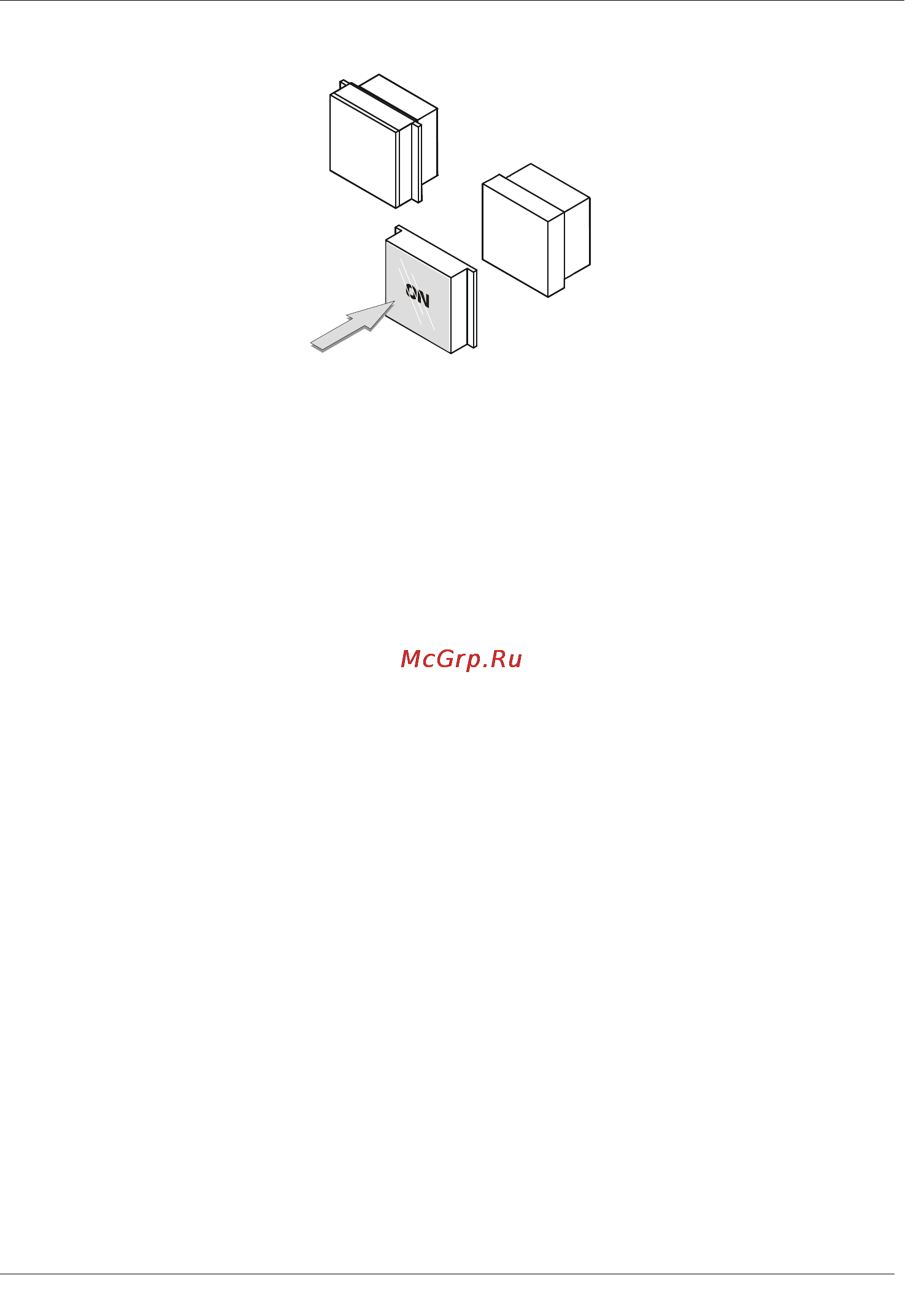

Figure 8: Placing the Button Cap
6. Remove the protective foils from both sides of the Perspex (acrylic glass)
windows.
7. Remove the protective foils from both displays.
8. Place the faceplate on the RC-53D so that the four screw mounting holes are
aligned.
9. Insert the four mounting screws and tighten with a screwdriver.
10. Install the volume control knob.
