Installing the RC-53D Faceplate, Button Caps and Labels
7
7
6 Installing the RC-53D Faceplate, Button Caps and Labels
This section describes how to install the faceplate, button caps and labels.

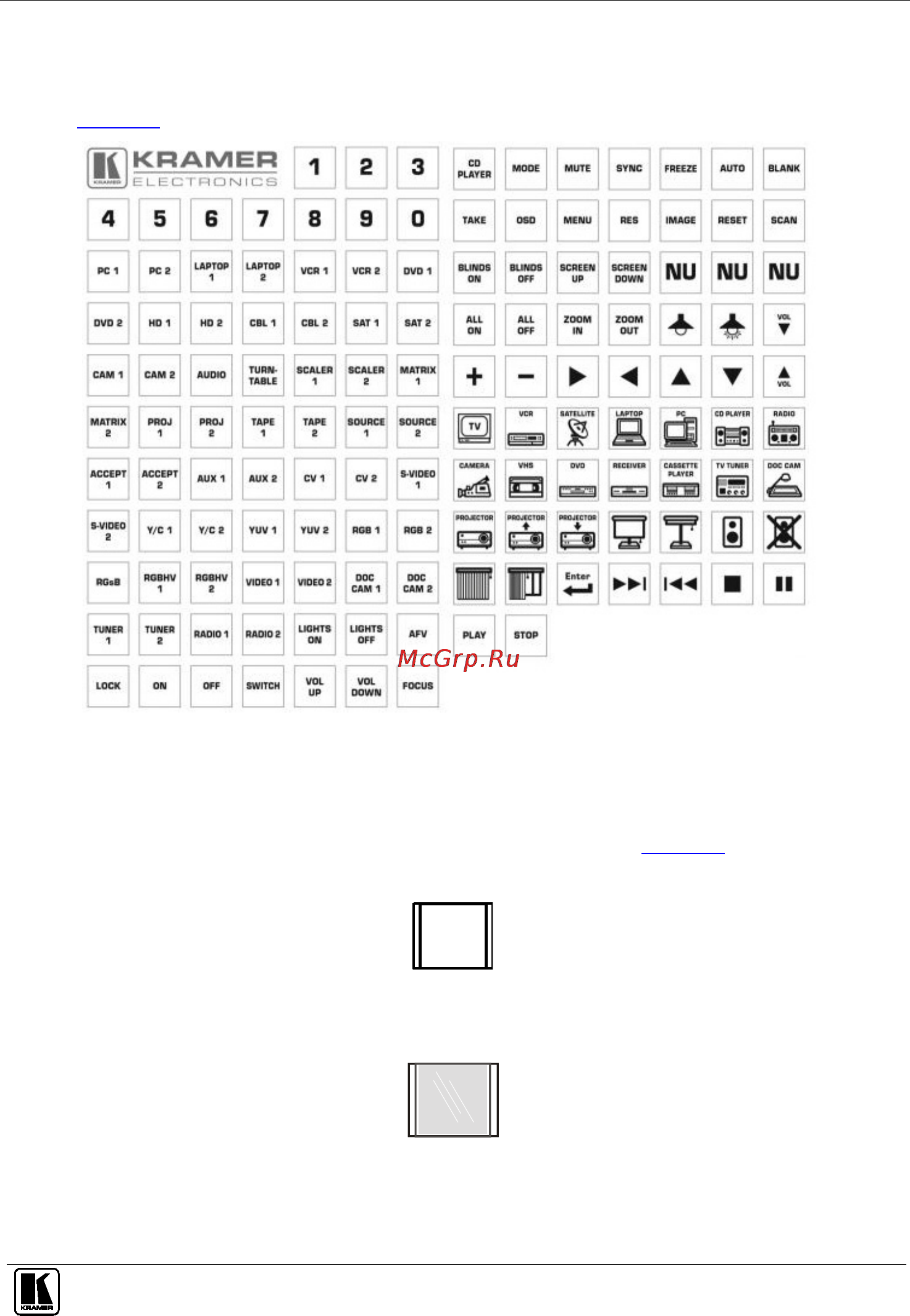

Figure 5 illustrates a sample button label sheet.
Figure 5: Sample Button Label Sheet
To install the faceplate, button caps and labels:
1. Remove the required labels from the supplied button label sheet.
2. Hold the button cap so that it is oriented as shown in
Figure 6 with the
“wings” on the left and right sides.
Figure 6: Button Cap Orientation
3. Insert the label inside the cap
Figure 7: Inserting the Label
4. Repeat for all six caps.
