Operating the RC-53D K-NET™ Auxiliary Control Panel

7 Operating the RC-53D K-NET™ Auxiliary Control Panel

In the following example

(illustrated in Figure 9), the auxiliary control panel is

labeled with specific functions and each button is programmed

to perform several

tasks

as defined in Table 4.

Table 4: The Commands Configuration

The Label The Macro Sequence

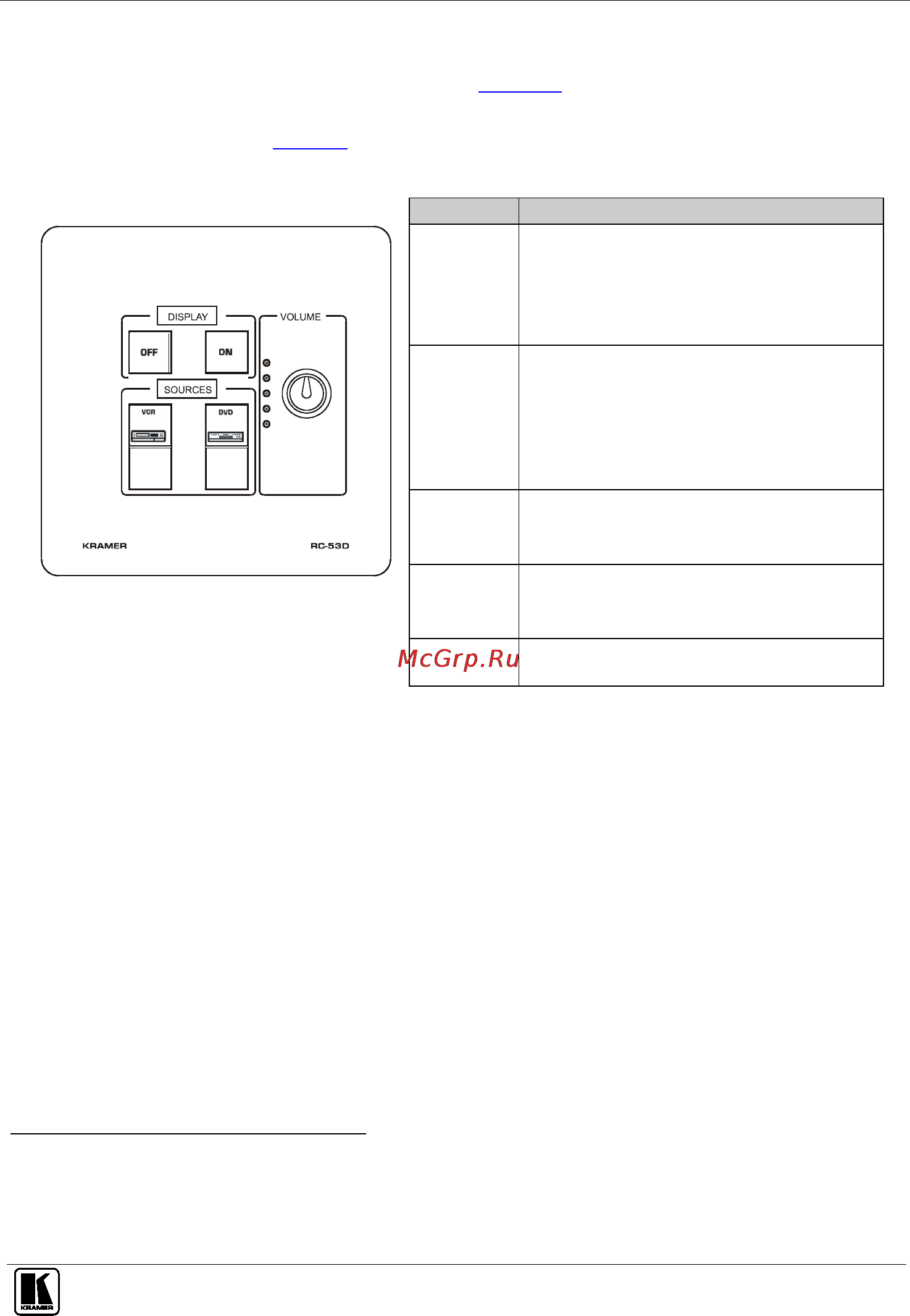

Figure 9: RC-53D Labels Setup

• Power up the projector

• Power up the DVD player

• Roll down the projector screen

• 1 minute delay (for the projector to heat up)

• The projector selects the DVD input

OFF

• Power down the projector

• Stop the DVD player

• Power down the DVD player

• Stop the VCR

• Power down the VCR

• Roll up the projector screen

DVD

• Stop the video player

• The projector selects the DVD input

• Play the DVD

VCR

• Stop the DVD

• The projector selects the VCR input

• Play the VCR

VOLUME

• Use the VOLUME knob to adjust the audio

level

1 This is only one example among numerous possibilities, each button can be programmed as required. In this example, two buttons are

not assigned

2 By the technical installer

3 A macro sequence, including several commands per button, carried out one after the other
