KRAMER: SIMPLE CREATIVE TECHNOLOGY
Flash Memory Upgrade
28
9. Click Run.
After each stage of the operation is completed, the check-box for that
stage becomes colored green
1
.
When the operation is completed, all 4 check-boxes are colored green
and the status bar message: Memory Verify Pass appears
2
:

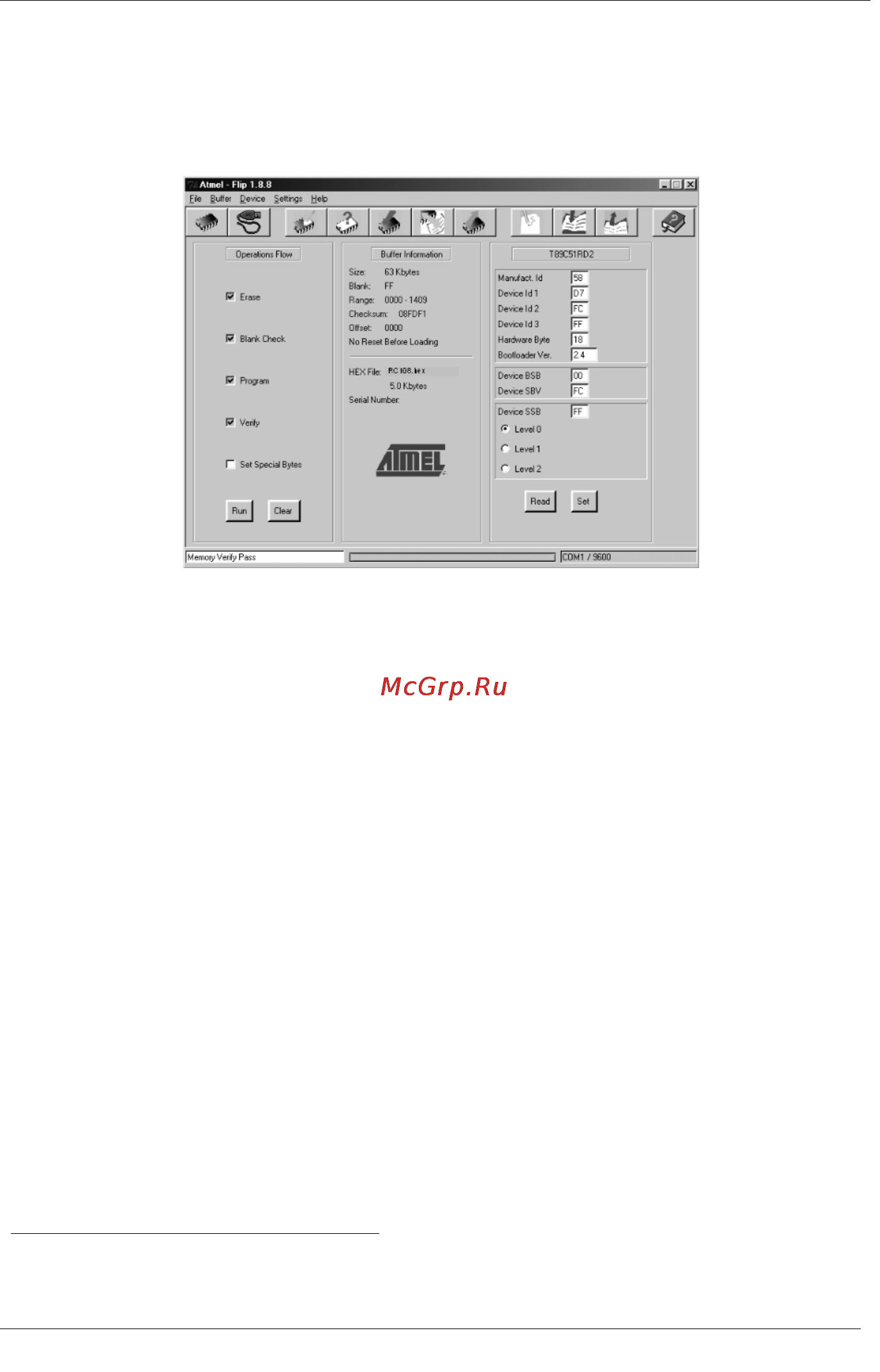

Figure 24: Atmel – Flip Window (Operation Completed)
10. Close the “Atmel – Flip” window.
11. Disconnect the power on the RC-108.
12. If required, disconnect the RS-232 rear panel port on the RC-108 unit
from the null-modem adapter.
13. Slide the underside PROGRAM switch to the normal position.
14. Connect the power to the RC-108.
1 See also the blue progress indicator on the status bar
2 If an error message: “Not Finished” shows, click Run again
