FC-69 - Defining the FC-69
5
4 Defining the FC-69

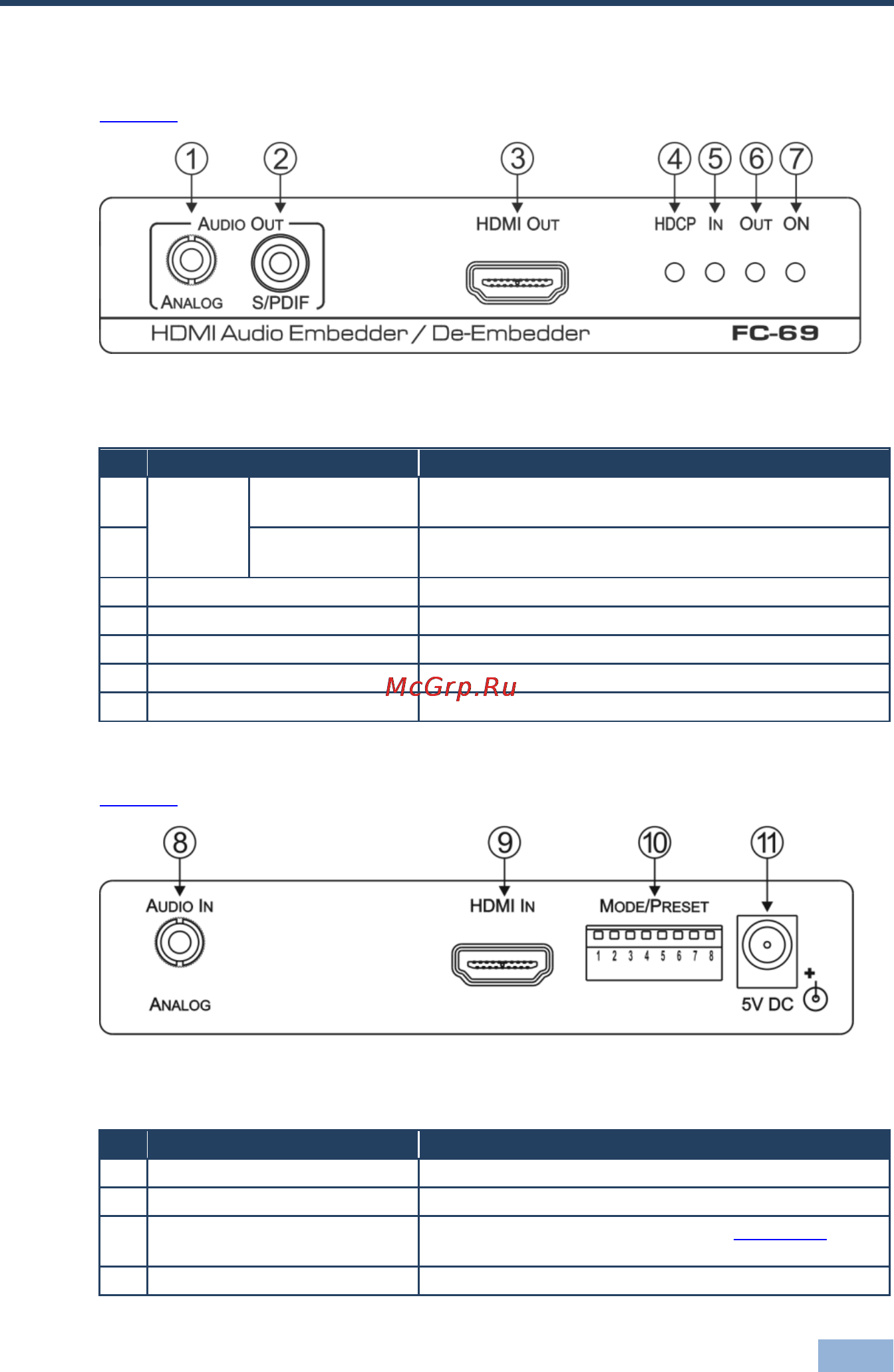

Figure 1 defines the front panel of the FC-69 HDMI Audio De-Embedder.
Figure 1: FC-69 Front Panel
#
Feature
Function
1
AUDIO
OUT
ANALOG 3.5mm
mini jack
Connect to the analog audio acceptor
2
S/PDIF RCA
connector
Connect to the digital audio acceptor
3
HDMI OUT
Connect to the HDMI acceptor
4
HDCP LED
Lights to indicate that the content is HDCP encoded
5
IN LED
Lights green when there is an active HDMI input
6
OUT LED
Lights green when there is an active HDMI output
7
ON LED
Connect to the HDMI acceptor
Figure 2 defines the rear panel of the FC-69 HDMI Audio De-Embedder.
Figure 2: FC-69 Rear Panel
#
Feature
Function
8
AUDIO IN 3.5mm Mini Jack
Connect to the analog audio source
9
HDMI IN Connector
Connect to the HDMI source
10
MODE/PRESET DIP-switch
Use to set the device behavior, (see Section 6.1 and
the legend underneath the device)
11
5V DC Power Connector
Connect the 5V DC power adapter
